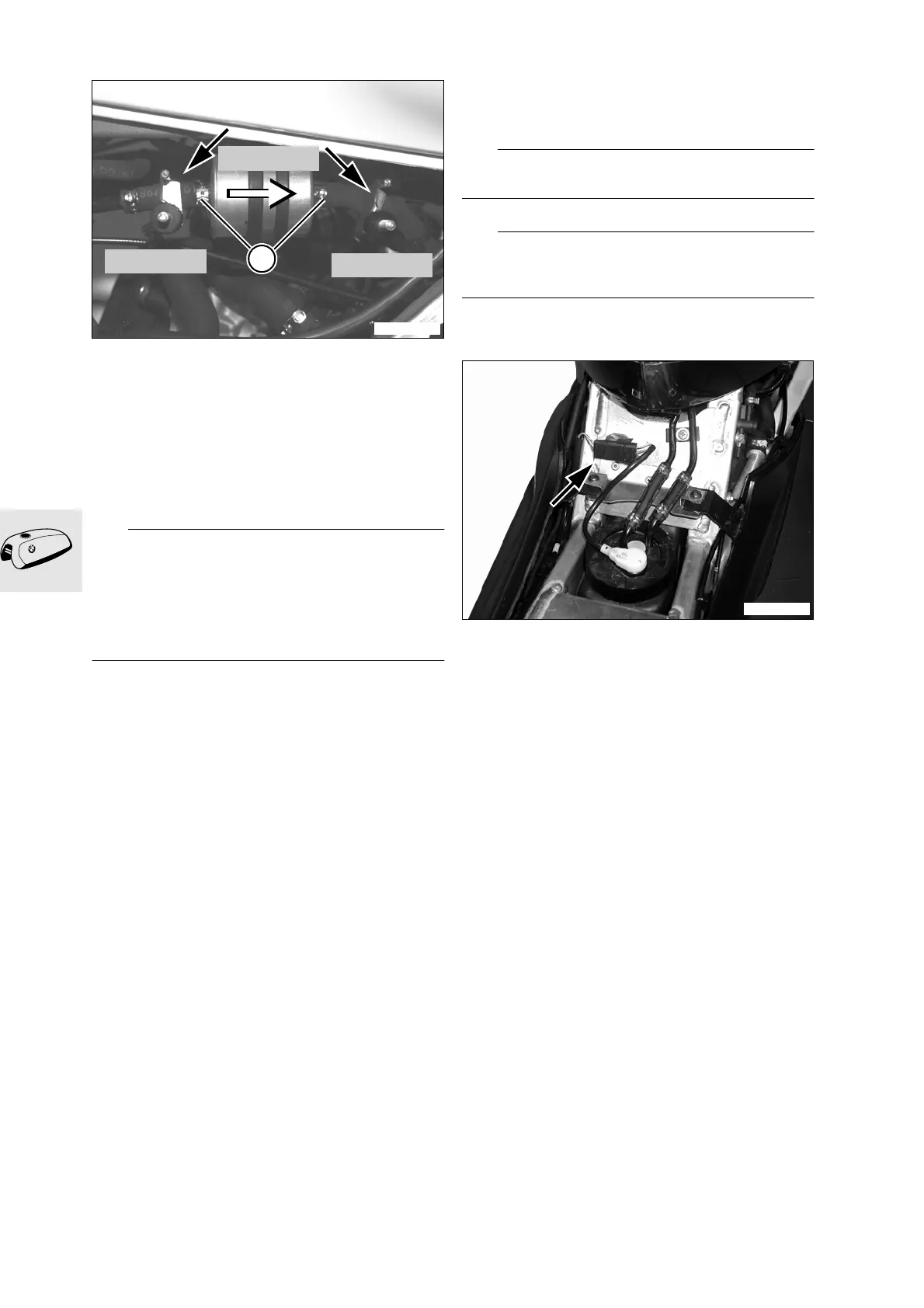

16.8
•
Use hose clamps,
BMW No. 13 3 010
, to close
off fuel hoses (arrows)
•
Release hose clamps (1) with pliers,
BMW No. 17 5 500
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following operations:
e
Attention:
Note correct direction of flow through fuel filter (indi-
cated by white arrow).
Make sure the hose clamps are correctly posi-
tioned.
Make sure the hoses are routed well away from any
components that could cause rubbing and abrasion!
X
Torque specification:
Fuel filter mount.............................................. 5 Nm
Fuel pump unit
16 14 009
Removing, installing fuel pump
assembly
e
Attention:
Disconnect earth cable from battery and insulate it!
d
Warning:
Comply with safety precautions when handling or
working with fuel.
– Remove top tunnel panel
a
....................................................See Group 46
•
Disconnect the plug for the fuel-pump
unit (arrow)
C1160090
1
13 3 010
13 3 010
17 5 500
C1160001
