6-19 Confidential

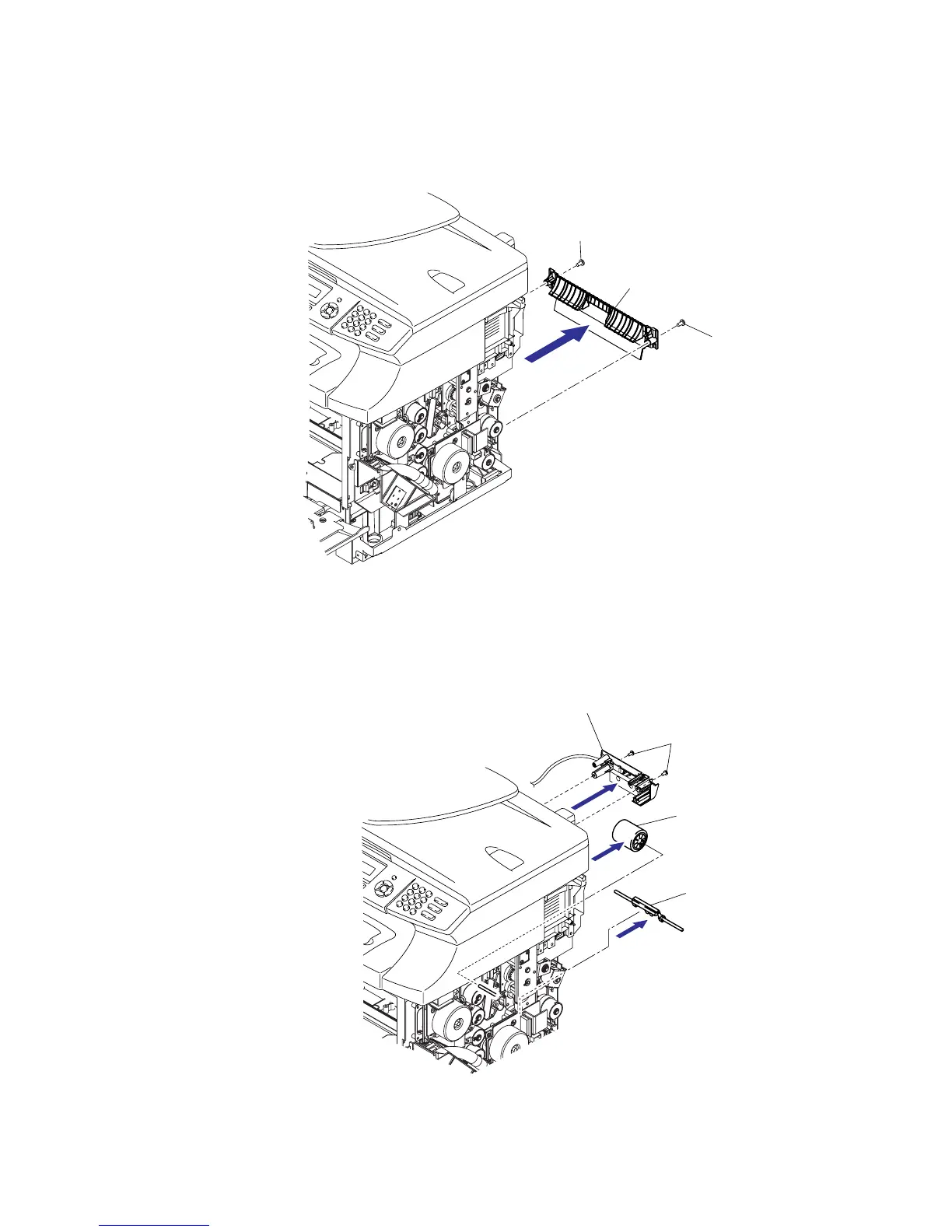

(12) Remove the setscrew (BT3x8, 2 pieces) of the paper guide (B) PU.
(13) Remove the paper guide (B) PU.
Fig. 6-25
(14) Remove the setscrew (BT3x8, 2 pieces) from the paper guide (C) PU.
(15) Remove the paper guide (C) PU.
(16) Sliding the paper feed roller along the shaft, remove it from the shaft.
(17) Pull out the separator pad from the frame.
Fig. 6-26
Paper guide (B) PU
Paper feed roller
Paper guide (C) PU
Separator pad
BT3x8
BT3x8
BT3x8
