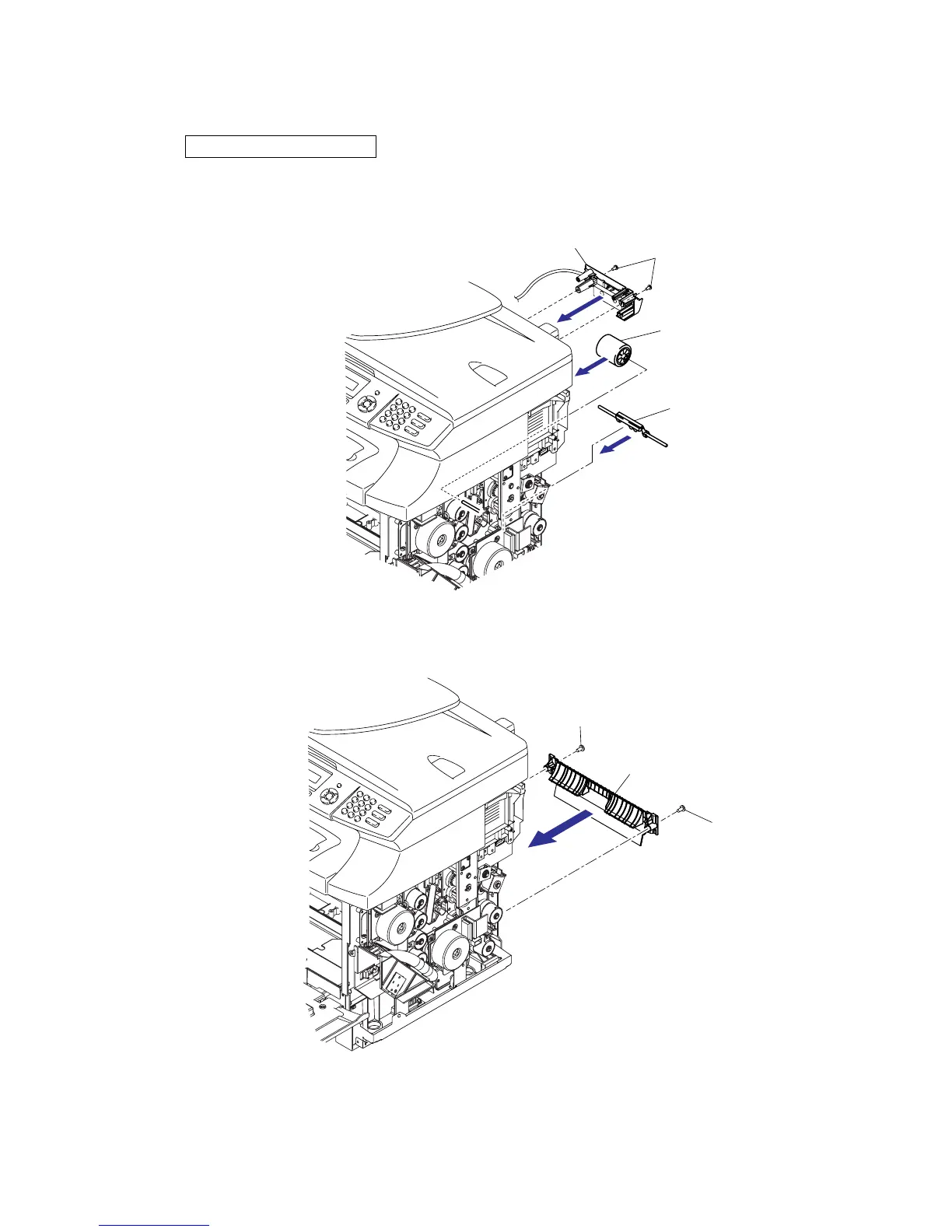

Sequence of Assembling
(1) Set the separator pad.
(2) Set the paper feed roller.
(3) Secure the paper guide (C) PU with the setscrew (BT3x8, 2 pieces).
Fig. 6-27
(4) Install the paper guide (B) PU into the machine.
(5) Secure the paper guide (B) PU with the setscrew (BT3x8, 2 pieces).
Fig. 6-28
Paper guide (B) PU
Paper feed roller
Paper guide (C) PU
Separator pad
BT3x8
BT3x8
BT3x8
