6-21 Confidential
(6) Set the back cover.
(7) Install the support plate.
(8) Close the back cover and secure the support plate with the setscrew (ST4x6, 2 pieces).
(9) Assemble the support band onto the frame with the setscrew (ST4x6, 1piece and collar).
(10) Connect the connector of the paper sensor.

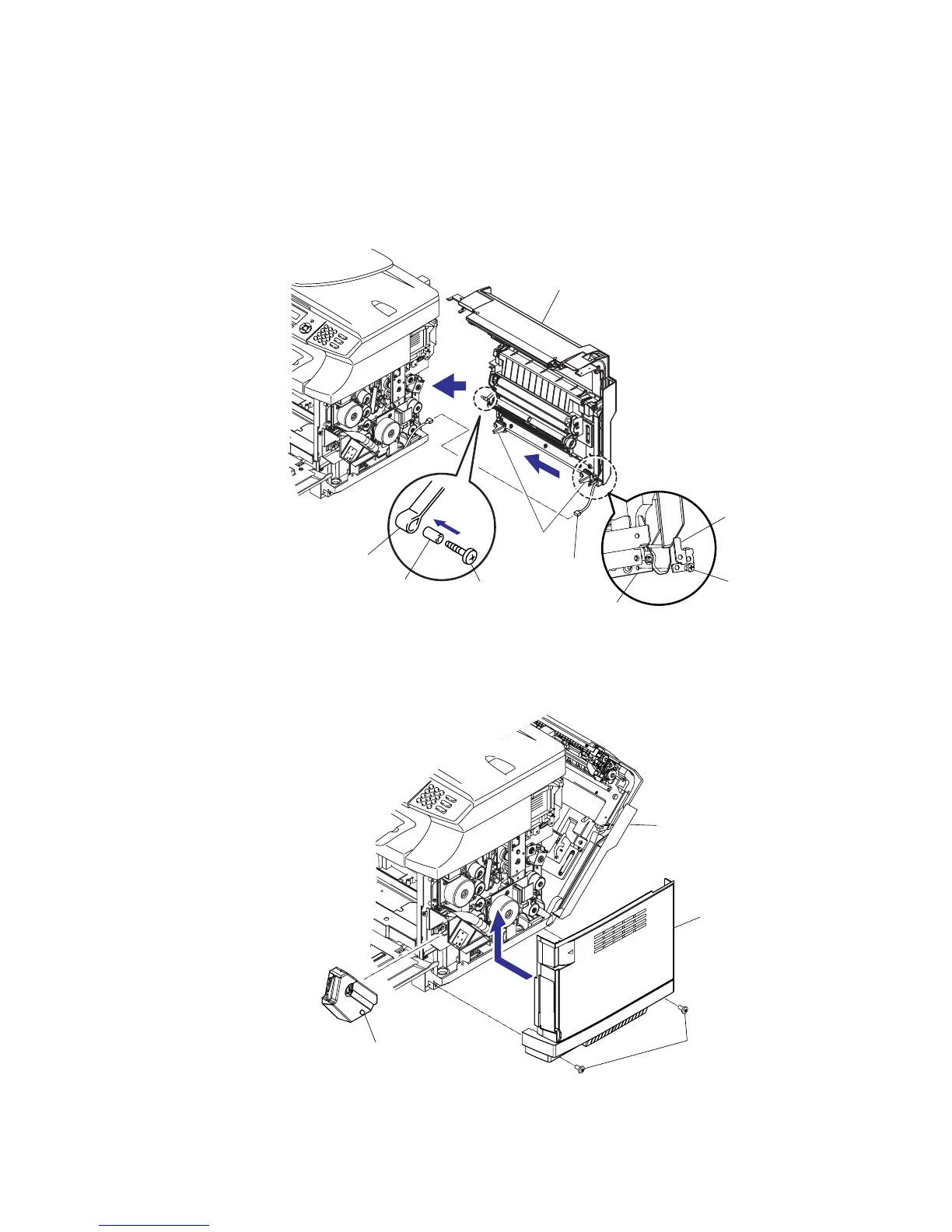

Fig. 6-29
(11) Secure the right side cover R with the setscrew (BT4x10, 2pieces).
(12) Install the waste toner pack PU.
Fig. 6-30
Right side cover R
BT3x8
BT4x10
Back cover
Back cover
Support band
BT4x20
Collar
Hinge shaft
Connector of
paper sensor
Support plate
ST4x6
Right-side base ASSY
Waste toner pack PU
