117
Electrical and Ignition
Flywheel and Stator Servicing
6

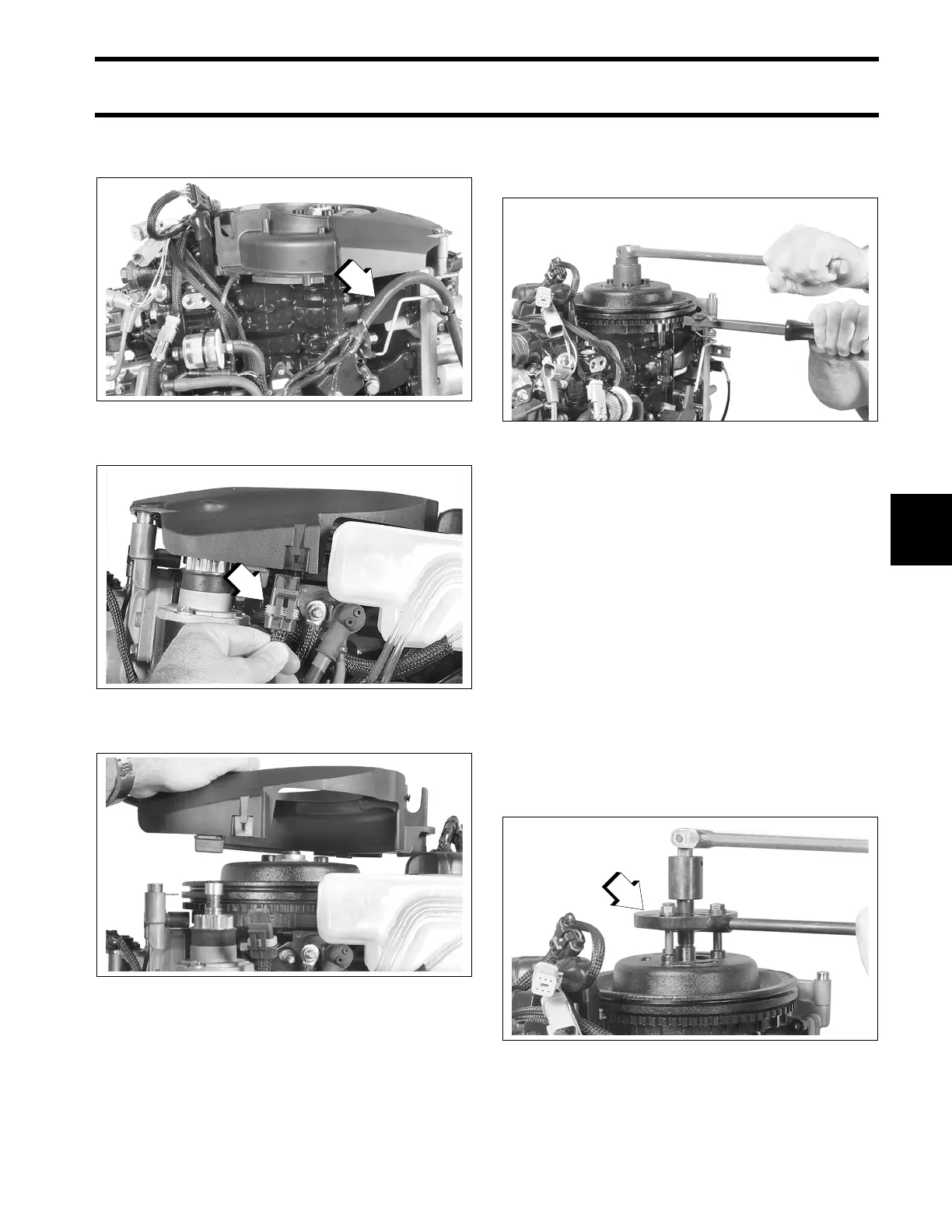

Disconnect wiring harness and remove wiring
from cover.
Remove fuse holder from flywheel cover.
Lift flywheel cover to remove.
Use Flywheel Holder, P/N 771311, or equivalent,
and a 1 5/16 in. socket to remove flywheel nut.
Discard flywheel nut.
Apply Moly Lube grease to the threads of the
puller pressing screw, P/N 307637, and the center
hole of the crankshaft.
Assemble the following components from Univer-
sal Puller Set, P/N 378103:
• Body, P/N 307636
• Screw, P/N 307637
• Handle, P/N 307638
• Three screws P/N 309492
• Three washers, P/N 307640
Put the puller on flywheel with body flat side up.
Attach the puller body with the three shoulder
screws and washers. Hold puller body with han-
dle, and tighten pressing screw until flywheel
releases. Turn the center screw and lift the fly-
wheel off of the crankshaft.
1. MWS harness
002086
1. Fuse holder
002094
002087
002088
1. Universal puller
002089
