BRP E-TEC EVINRUDE - Fuel System Hose Routing

134
Fuel System

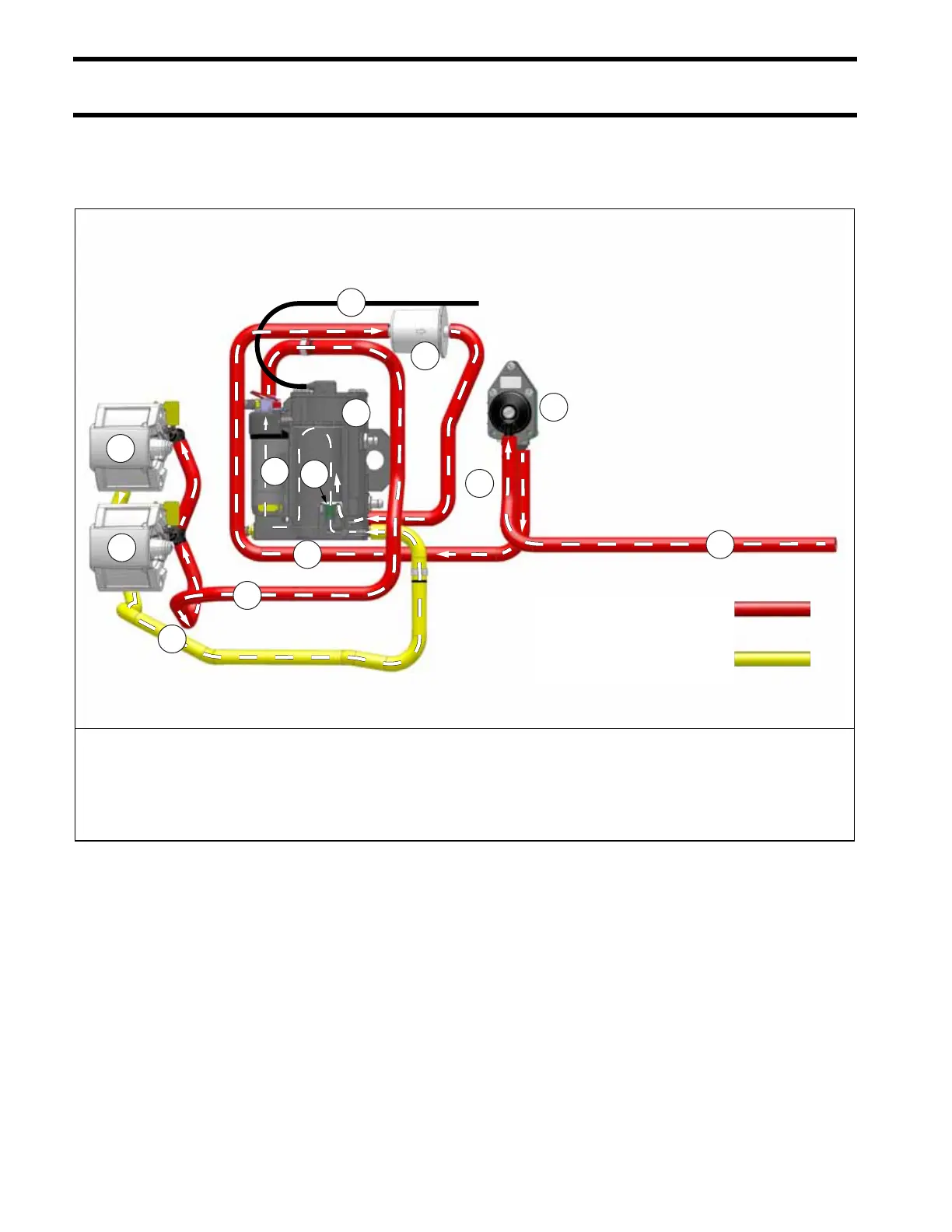

Fuel System Hose Routing
Fuel System Hose Routing
2-Cylinder Models
1
4
2
3
5
6
7
8
10
11
9
9
12
010502
1. Fuel supply from boat fuel system
2. Fuel lift pump (2 to 8 psi)
3. Pulse hose from cylinder/crankcase
4. Fuel supply to vapor separator
5. Fuel filter
6. Vapor separator
7. Electric fuel circulation pump (20 to 30 psi)
8. Fuel supply manifold
9. Fuel injector(s)
10. Fuel return manifold
11. Vent hose to intake manifold
12. Pressure regulator (high pressure)
Fuel Supply
Fuel Return
