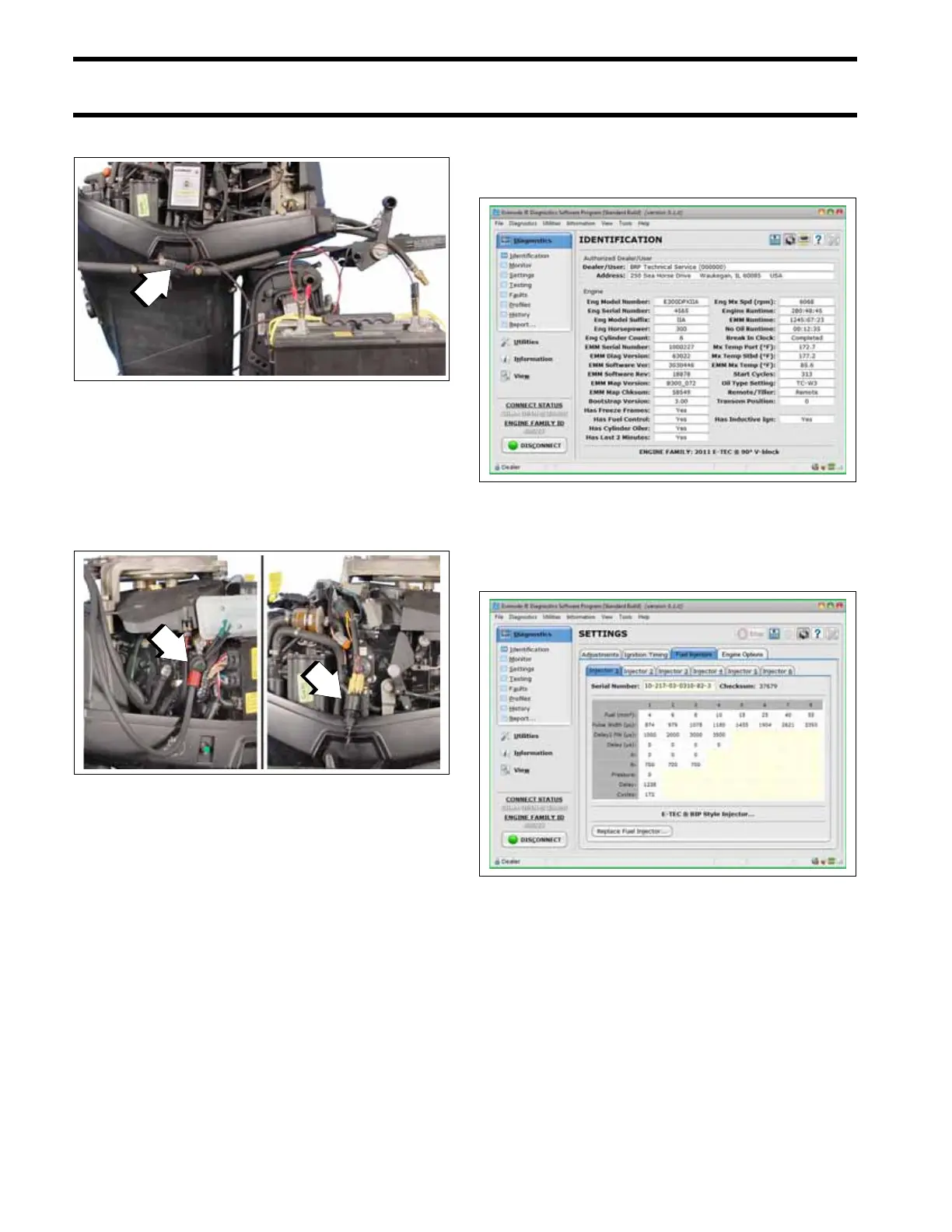

Engine Management Module (EMM)
Diagnostic Software Functions
70
• Oil injector
If Diagnostic Power Supply Tool, P/N 587005, is
not available, a Battery Cable, P/N 584348, can
be connected to the engine mounted solenoid.
Connect an accessory Key Switch Assembly,
P/N 176408, to the engine harness connector to
control power to the EMM.
Static Information
Static information is viewed when the outboard is
NOT running. This includes manufacturing infor-
mation.
The outboard model and serial numbers displayed
on the Identity screen must match the identifica-
tion label on the outboard swivel bracket.
The serial number and cylinder location displayed
on the Injector Coefficients screen must match the
actual cylinder placement for each injector.
1. External power connector
007280
1. Battery cable
2. Accessory key switch
007282a
Identity Screen
008567
Injector Coefficients Screen
008568
