BRP E-TEC EVINRUDE - Stern Bracket Assembly

262
Midsection
Stern Bracket, 3-Cylinder Models

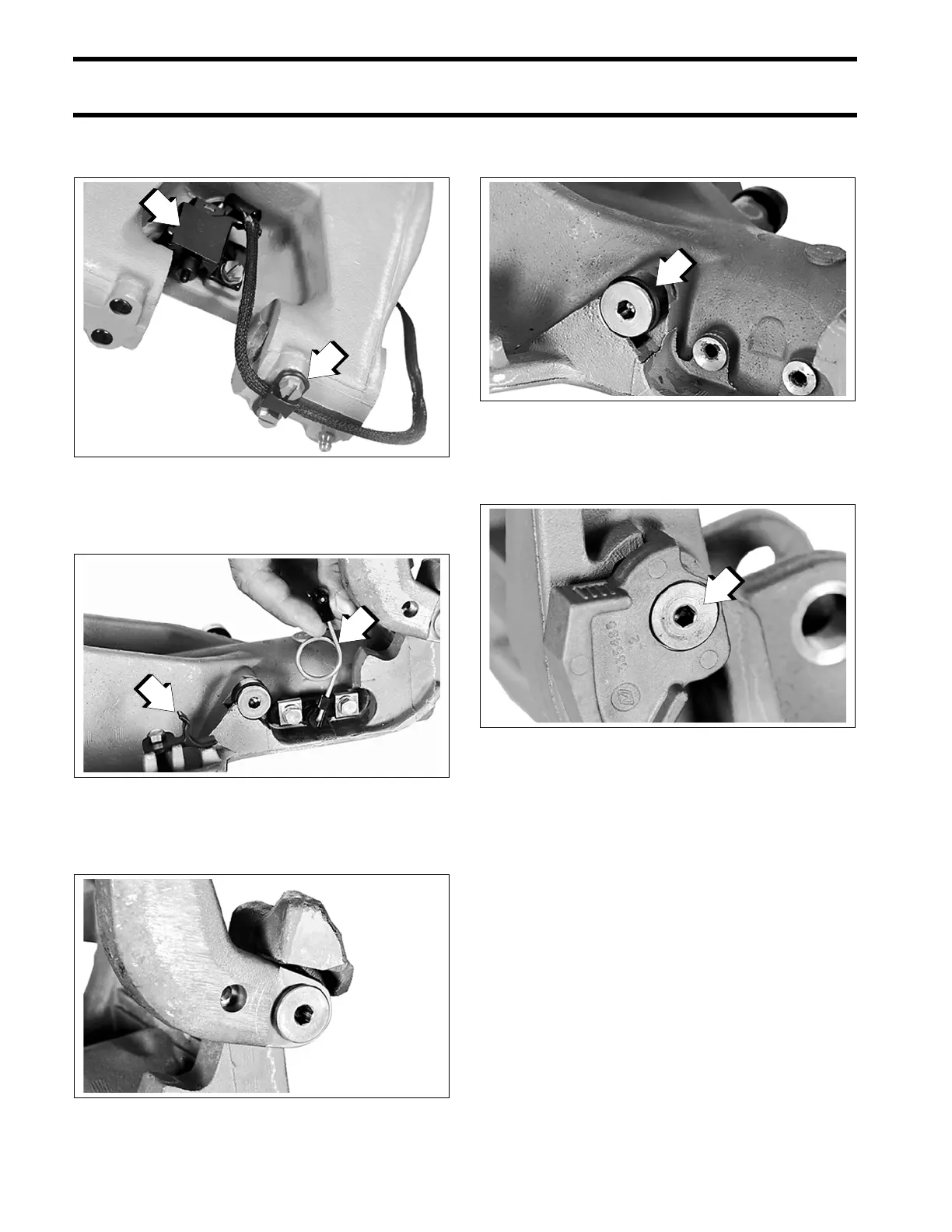

Remove the tilt limit switch and retainer from the
swivel bracket.
Disconnect the trail lock spring and remove it from
the swivel bracket. Remove trail arm retainer.
Remove the trail lock arm and bushings from the
swivel bracket.
Remove the two trim rod rollers from the swivel
bracket.
Remove the tilt support and bushing from the
swivel bracket and inspect the detent roller and
spring.
Stern Bracket Assembly
IMPORTANT: Before proceeding, make sure all
components have been thoroughly cleaned. Re-
place any seals that have been removed. Inspect
all thrust washers and bushings for evidence of de-
terioration.
Install the detent roller and spring and the tilt sup-
port with bushing in the swivel bracket. Tighten
1. Tilt limit switch
2. Retainer
30758
1. Trail lock spring
2. Trail arm retainer
30756
1. Trail lock bushing
30755
1
2
1
2
1. Trim rod roller
30754
1. Tilt support bushing
30753
1
1
