221
Powerhead
Powerhead Assembly
10
Install lever, screw, and washer on crankcase and
hook spring on rib as shown. Tighten screw to a
torque of 120 to 144 in. lbs. (13.5 to 16 N·m).
Apply Nut Lock to threads of throttle cam screw.
Install cam, screw, and washer on cylinder block
and tighten screw to a torque of 120 to 144 in. lbs.
(13.5 to 16 N·m).
IMPORTANT: Do not lubricate throttle levers or
shoulder screws.
Final Powerhead Assembly
Install the reed plate and throttle body assemblies.
Refer to Intake Manifold Service on p. 156.
Install oil recirculating hoses and check valves.
Refer to Oil Recirculation Diagrams on p. 164,

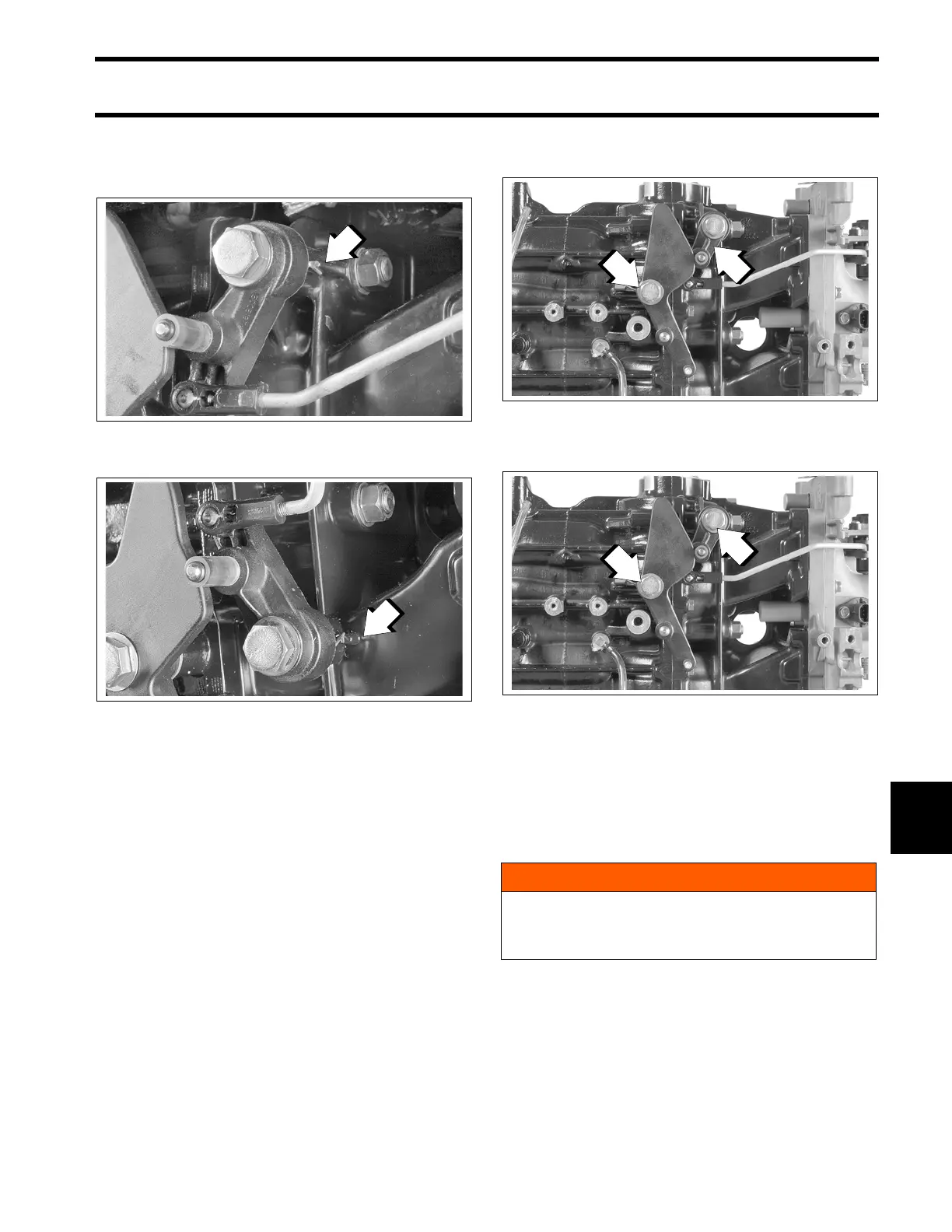

2-Cylinder models
1. Throttle lever spring
002255
3-Cylinder models
1. Throttle lever spring
002256
2-Cylinder models
1. Throttle lever screw
2. Throttle return lever
002245
3-Cylinder models
1. Throttle lever screw
2. Throttle return lever
002257
WARNING
To prevent fire and explosion hazard, make
sure all electrical and ignition wiring is routed
and clamped in original positions.
