299
Trim and Tilt
Trim and Tilt Replacement
12

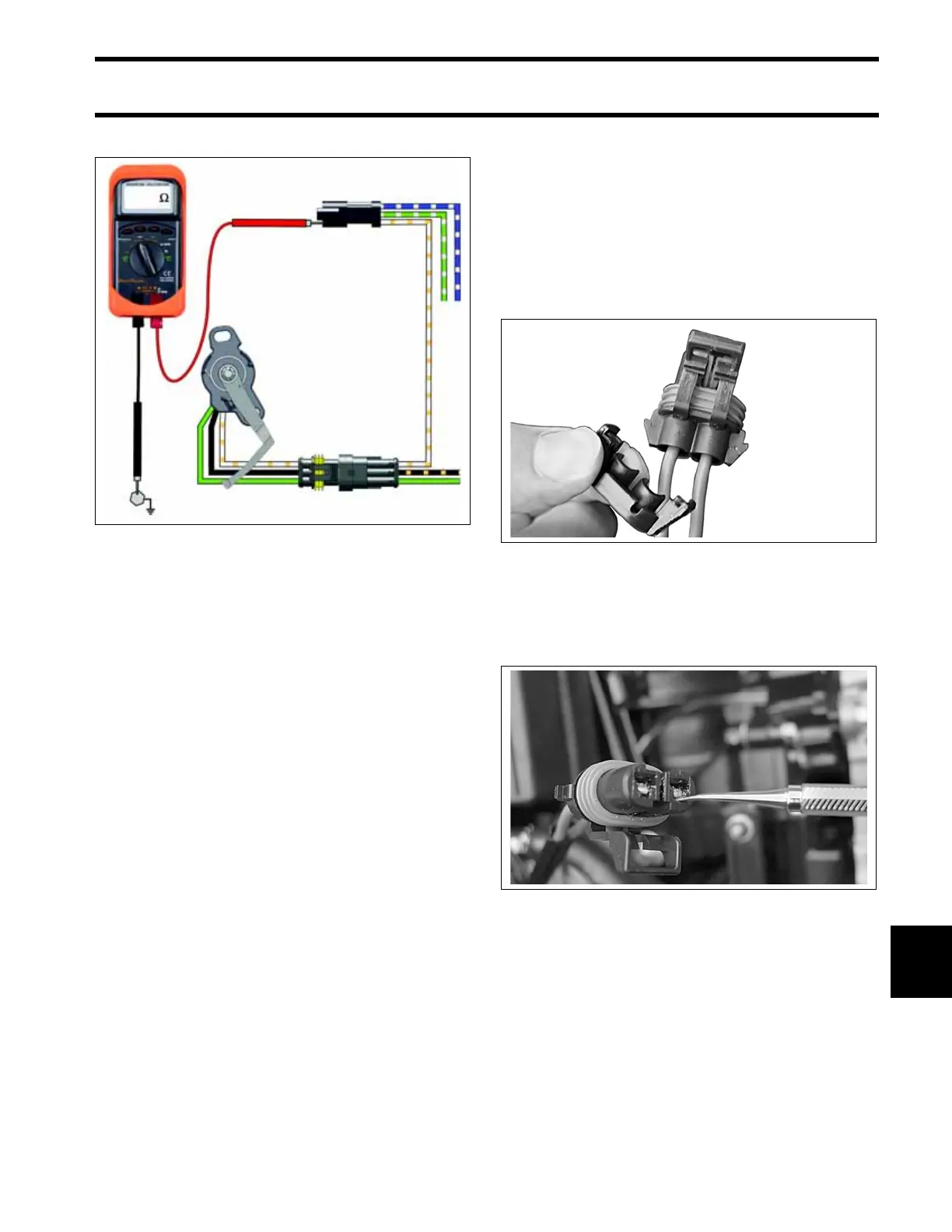

• If results are different, replace trim sender.
Trim and Tilt Replace-
ment
Removal
Raise the outboard and engage the tilt support.
Remove the rubber grommet from the blue/green
trim/tilt cable connector.
Remove the terminals from the connector by
using a suitable tool to depress the tab. While the
tab is depressed, pull on the wire from the rear of
the connector to release it from the connector.
010331
000686
000687
