Trim and Tilt

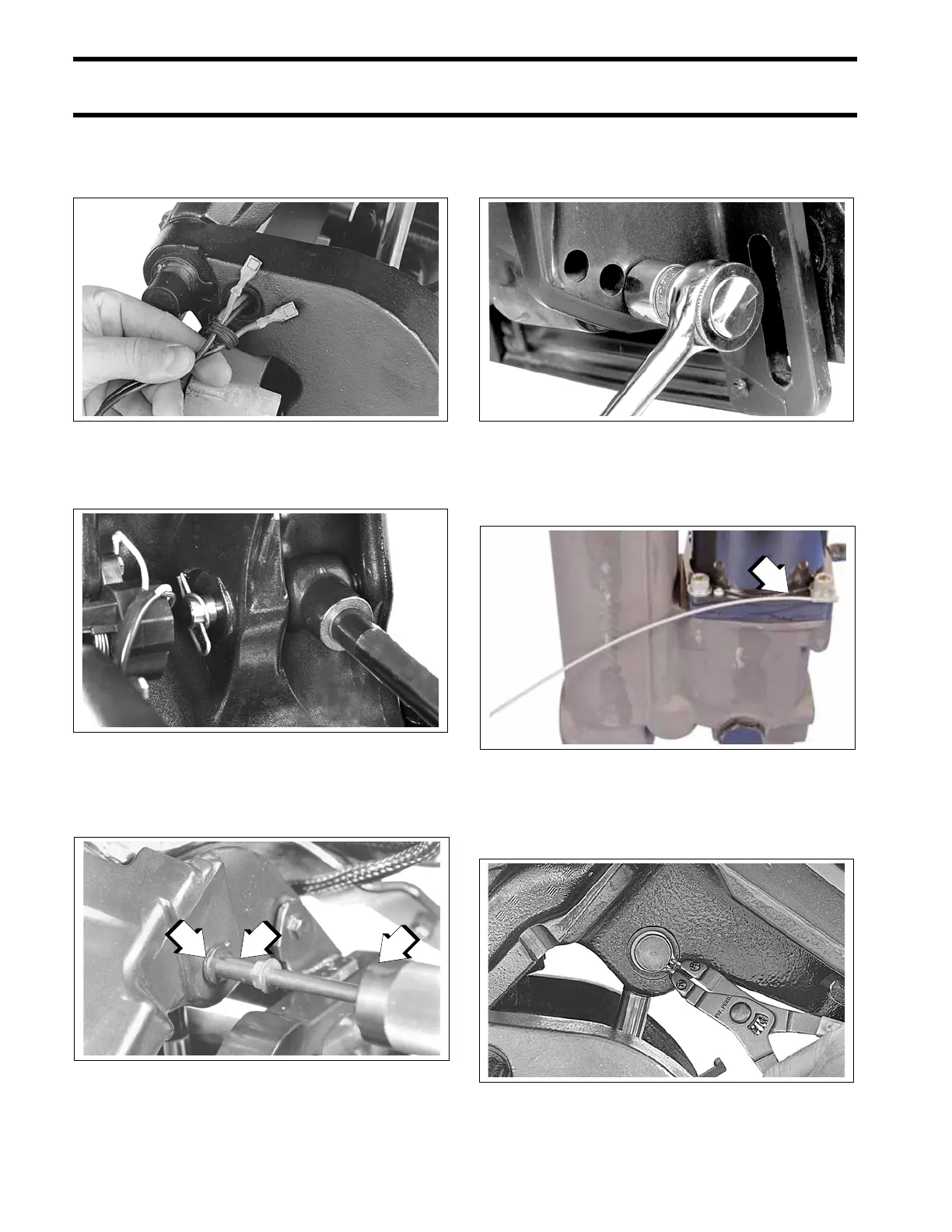

Trim and Tilt Replacement
Separate the trim/tilt unit wires in the braided tube
to permit removal through the hole in the stern
bracket.
2-Cylinder Models
Remove the spring clip from the cylinder pin.
Thread Adapter, P/N 340624, onto Slide Hammer,
P/N 391008. Screw the adapter into the cylinder
pin and remove the pin.
Remove one of the locknuts from the angle adjust-
ment rod. Remove the rod from the stern brack-
ets.
Remove the unit from the stern brackets far
enough to remove the ground lead from the pump
motor mounting screw.
3-Cylinder Models
Remove the external snap rings from the upper
pin.
25078
15493
1. Thread adapter
2. Slide hammer
3. Cylinder pin
39434
18941
1. Ground lead
007640
25064
