Electrical and Ignition
Connector Servicing
126
Connect
Push connector until seated in plug. Close latch
completely.
Terminal Removal
Use Terminal Release Tool, P/N 351413, to
release BOTH locking mechanisms of connector.
Pull terminal from housing.
Terminal Installation
Align terminal with connector housing and push
terminal with seal into connector housing until
seated.
Packard Connectors
IMPORTANT: Always use the appropriate meter
test probes and adapters when testing compo-
nents fitted with these terminals.
Disconnect
Lift latch(s). Remove connector.
Connect
Confirm the seal is in place. Push connector onto
housing until latched.
Terminal Removal
A tab on the back side of the terminal engages a
shoulder in the connector housing to hold the ter-
minal in place. The terminal is removed by releas-
ing the tab and then pushing the terminal and wire
through connector housing.

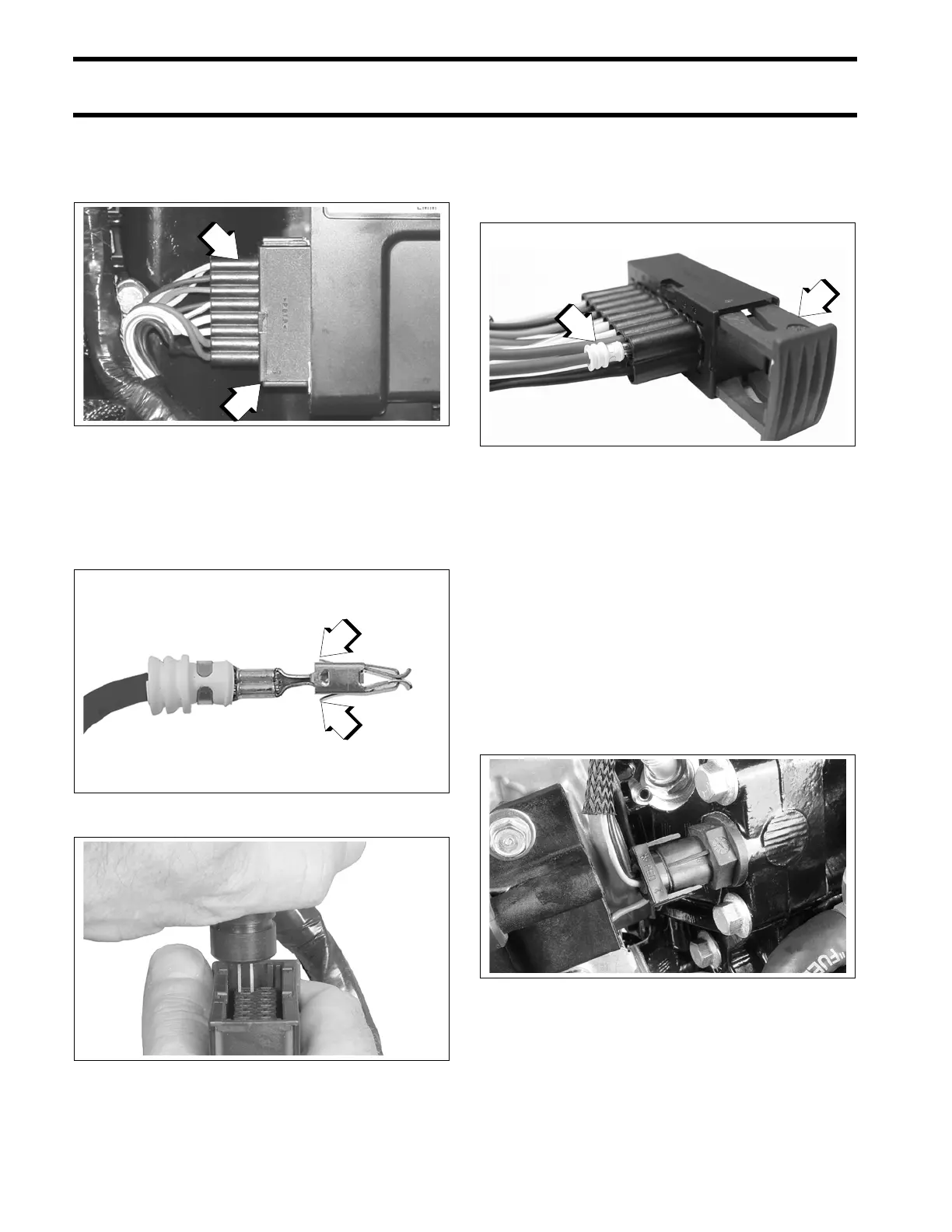

1. J2 connector
2. Latch (closed)
002120
1. Locking mechanism(s)
002455
1. Terminal release tool
002313
1. Latch
2. Terminal with seal
002456
DSC02124
