BRP E-TEC EVINRUDE - Cylinder and Crankcase; Oil Recirculation System

Oiling System
Components
168
If outboard has been run for more than 3 hours
with NO OIL faults (codes 34 & 117), the EMM

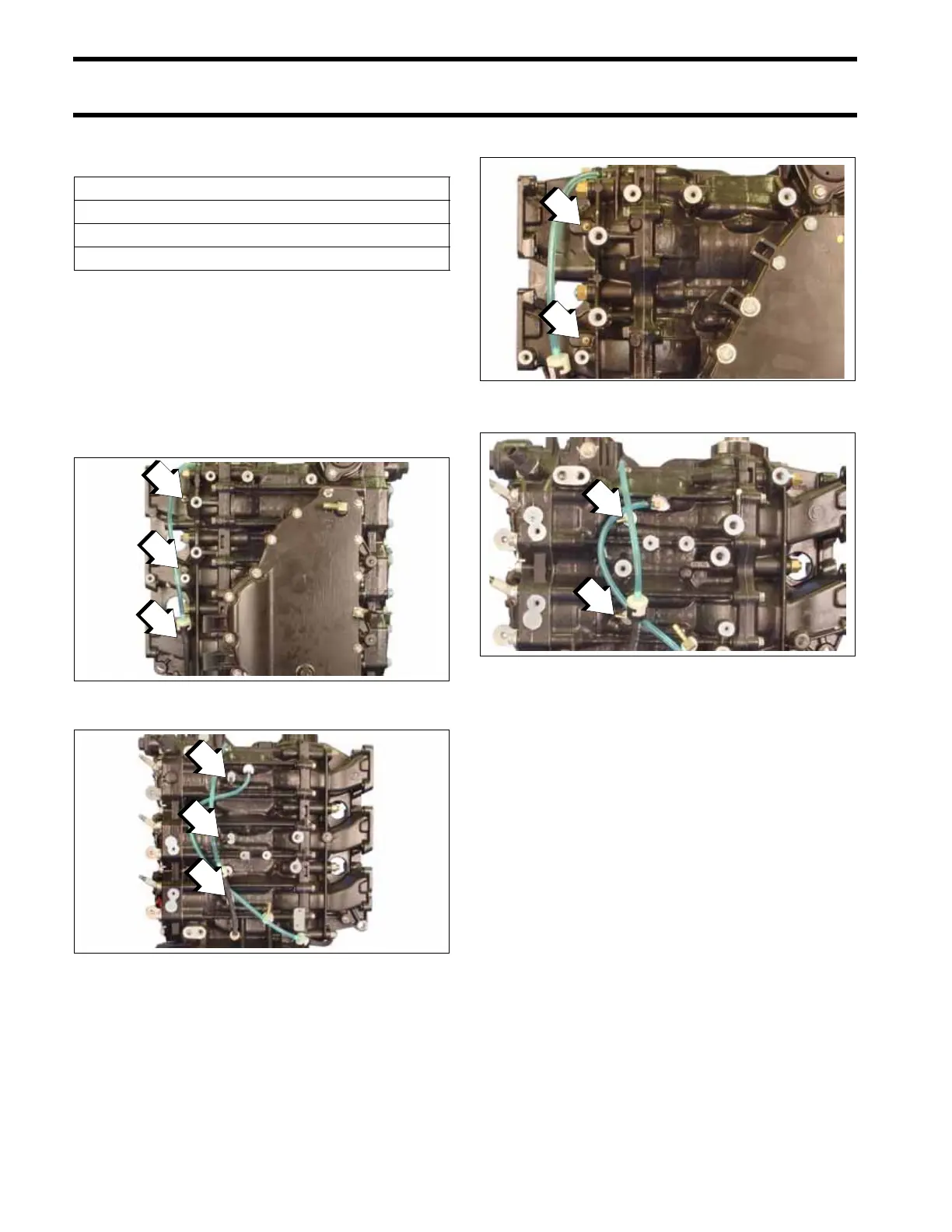

Cylinder and Crankcase
The oil distribution manifold provides crankcase
lubrication through oil distribution hoses and
pressed-in fittings on the crankcase and cylinder
block.
3-Cylinder Models
2-Cylinder Models
Oil Recirculation System
External hoses and fittings, internal cylin-
der/crankcase passages, and intake manifold pas-
sages are used to recirculate any accumulation of
oil from various locations in the powerhead. The
movement of oil is controlled by check valves.
Cylinder Recirculation
Internal powerhead oil drain passages connect
the intake port areas of the cylinders to circulate
residual oil in the block.
External fittings and in-line check valves on each
side of the cylinder block control the movement of
oil from the lower cylinder port to the upper cylin-
der port.
Activates SHUTDOWN
Stores service code 33
EMM LED 4: FLASHING
Engine Monitor NO OIL display: FLASHING
1. Crankcase oil fittings
006758
1. Cylinder block oil fittings
006759
1
1
1
1
1
1
1. Crankcase oil fittings
006614
1. Cylinder block oil fittings
006615
1
1
1
1
