BRP E-TEC EVINRUDE - Trim Switch Installation

Engine Cover Service
Lower Cover Service
58
to a torque of 180 in. lbs. (20 N·m).

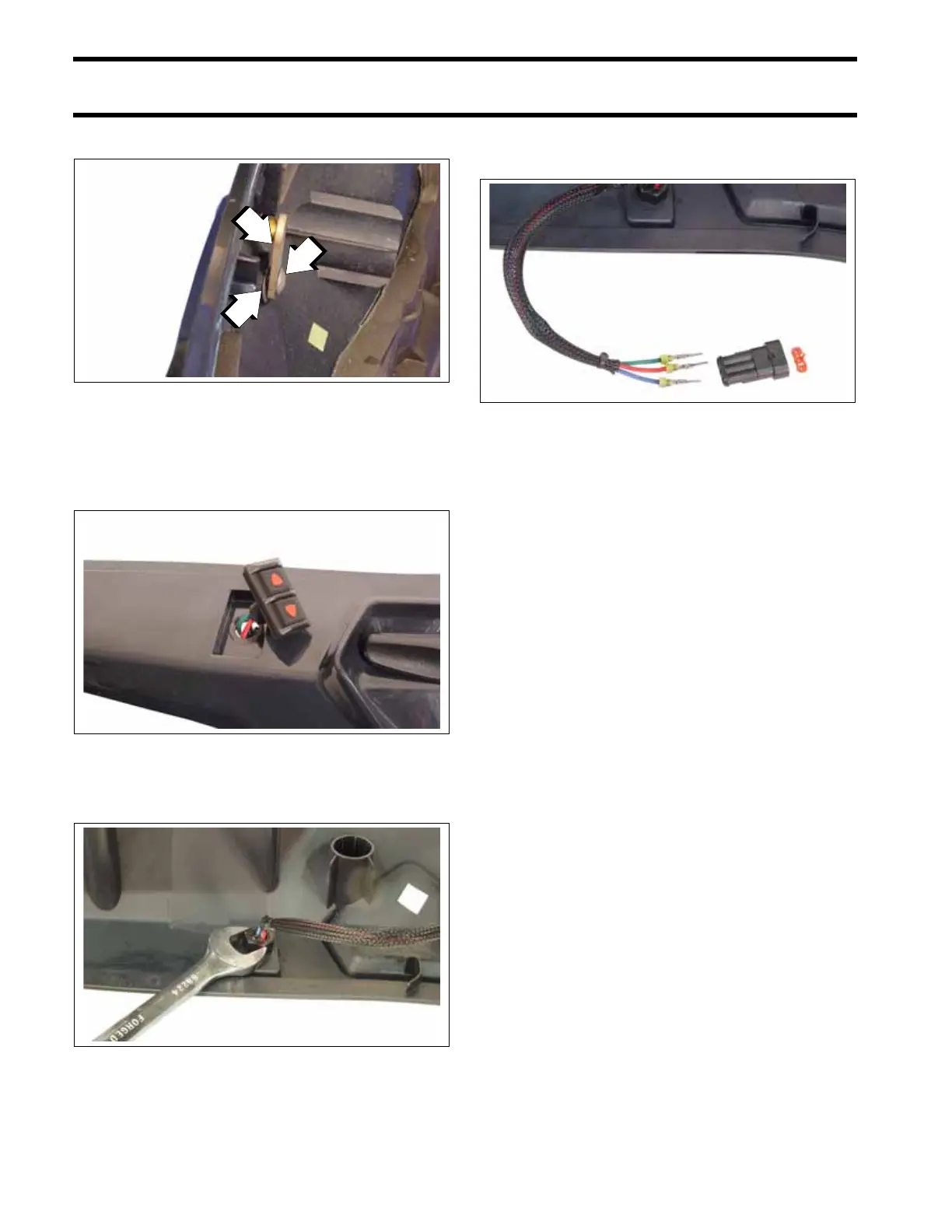

Trim Switch Installation
Place switch into position through cover.
Install nut on switch. Tighten nut to a torque of 10
to 16 in. lbs. (1 to 2 N·m).
Install electrical connector. Refer to Connector
Servicing on p. 122.
1. Spring washer
2. Hook
3. Screw
006471
006746
006747
3
1
2
006748
