Midsection
Tiller Handle Service – Long Handle
Remove the screws attaching tiller bracket to
steering arm. Remove tiller bracket and handle.
Disassembly
Loosen throttle friction control so there is no
restriction on grip.
IMPORTANT: Do not back screw out completely.
Nut is under spring tension.
Remove seven screws and bottom cover of tiller
handle.
Remove stop switch cover screws, unplug stop
switch electrical connector and remove stop
switch assembly.
Disconnect trim switch connector. Remove con-
nector from trim switch wires. Refer to Connector
Servicing on p. 122.
Use Twist-Grip Remover, P/N 390767, to depress
the grip detents. Tighten screw and remove the
grip by pulling grip.

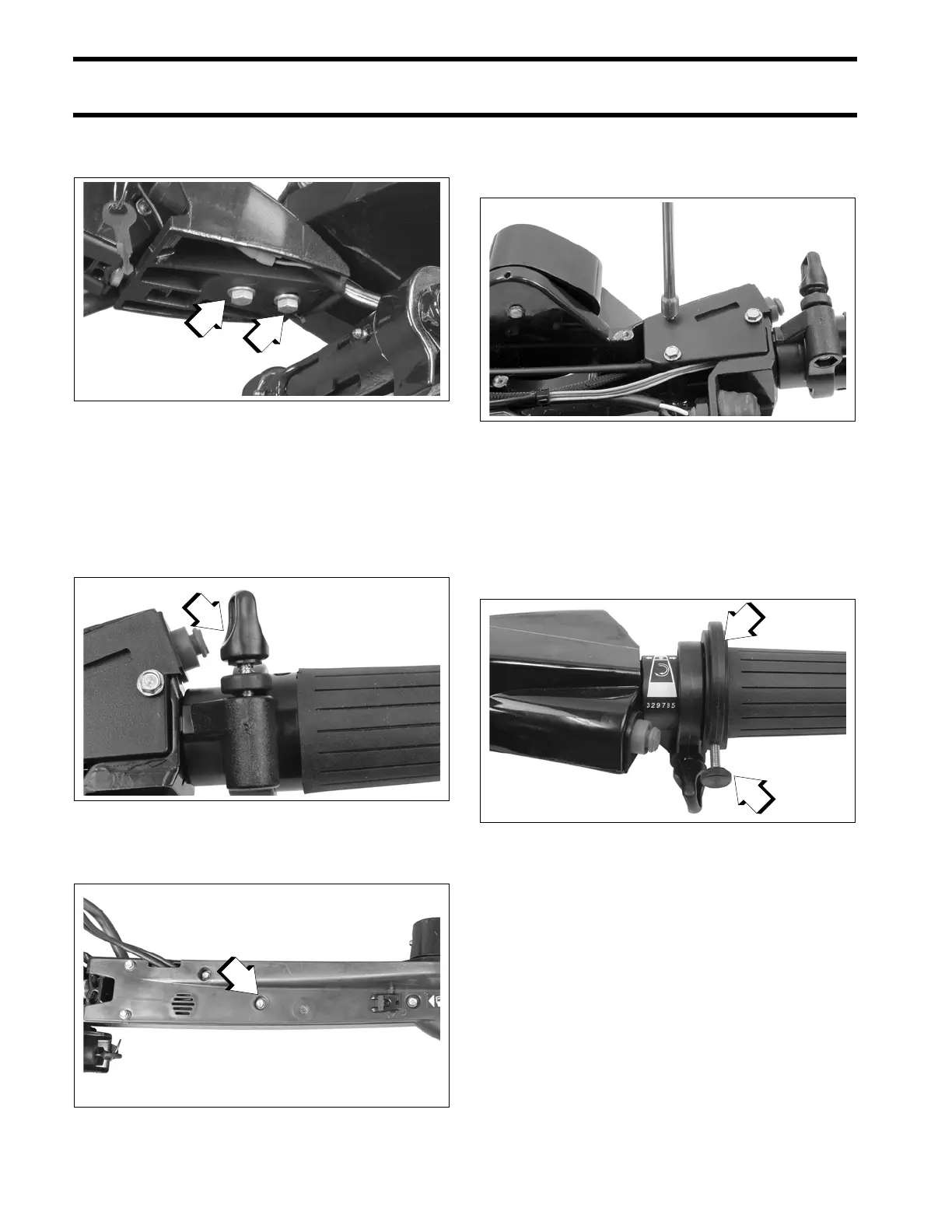

1. Screws
006361
1. Throttle friction control
006711
1. Cover screw
006566
006713
1. Twist-Grip Remover, P/N 390767
2. Screw
006710
