BRP E-TEC EVINRUDE - Page 281

281
Midsection
Tiller Handle Service – Long Handle
11

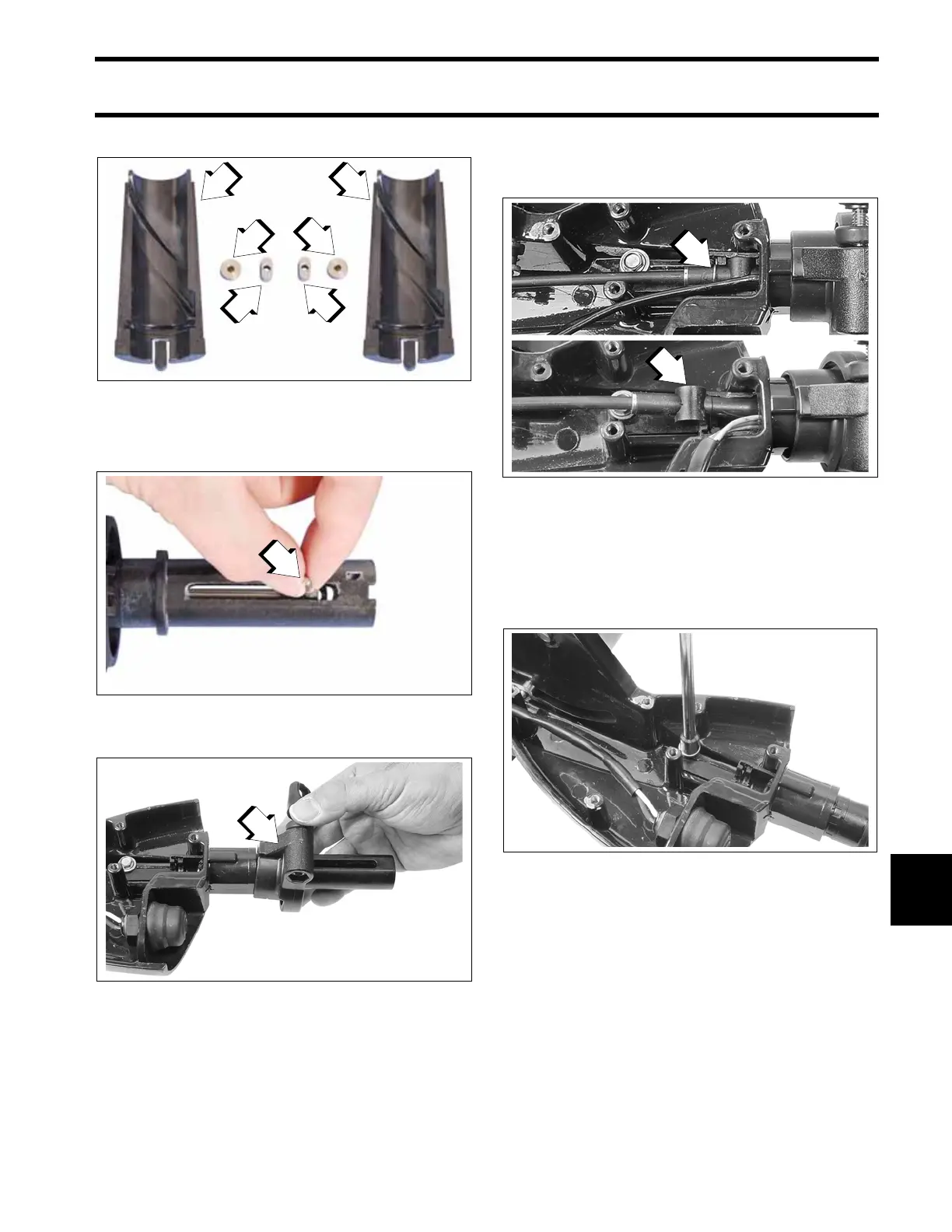

Remove the helix halves, rollers, and guides.
Pull the throttle pin out of the cable.
Remove the throttle friction control.
Remove the throttle cable retaining clip. Pry the
cable trunnion out of the steering handle and
remove cable.
The trim switch wiring can now be removed from
the inner handle.
Remove the screw and washer retaining the inner
handle tab.
1. Helix halves
2. Rollers
3. Guides
COA2674
1. Throttle cable pin
24294
1. Throttle friction control
006671
1
3
3
2
2
1
1
1
1. Retainer
2. Throttle cable trunnion
006674
006681
2
1
