Trim and Tilt
Trim and Tilt Service
12
All Models

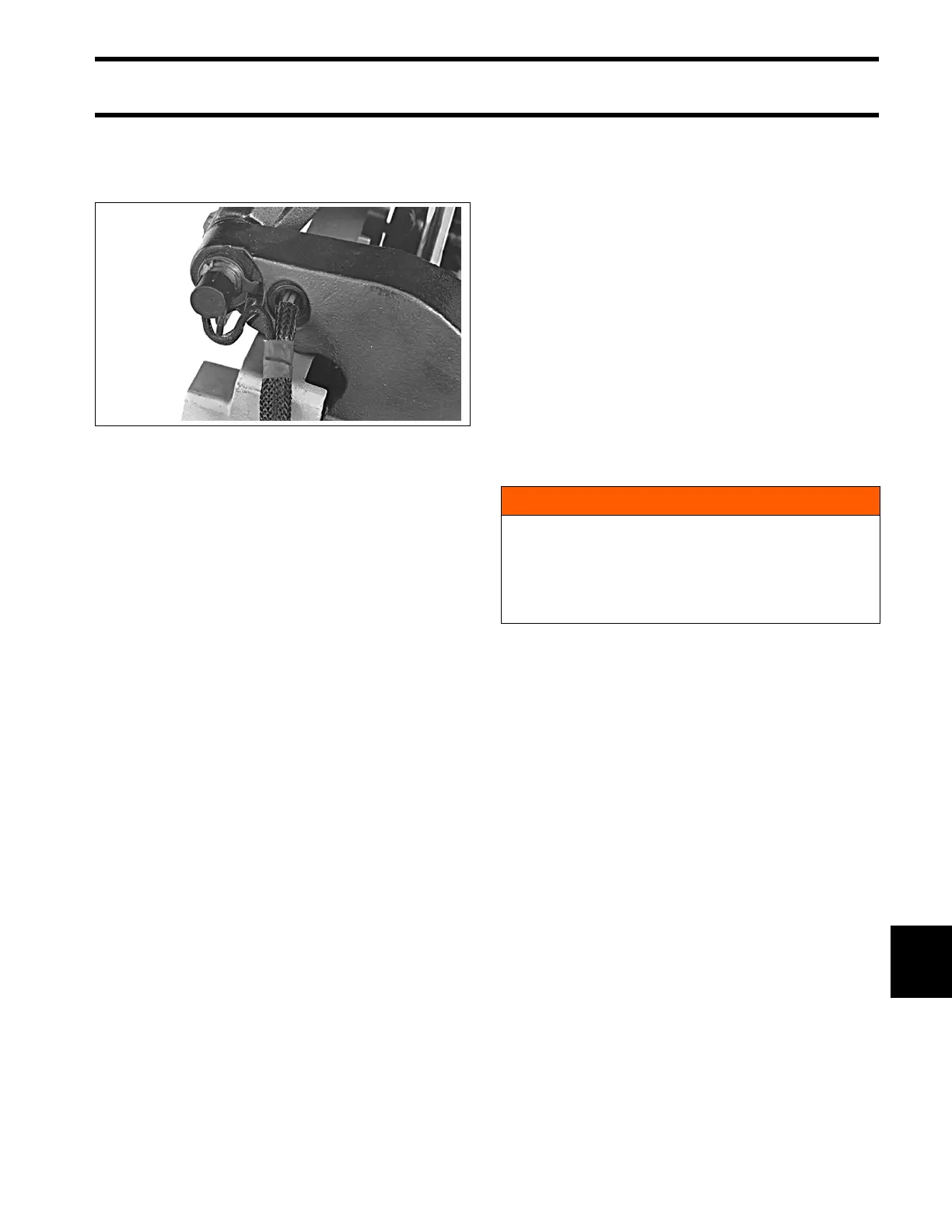

Place trim/tilt wires in braided tube and install
through hole in the stern bracket.
Install connector on trim/tilt cable and reconnect
trim connectors to engine wire harness.
Release the tilt support and lower the outboard.
Tighten the manual release valve to a torque of 45
to 55 in. lbs. (5 to 6 N·m).
Trim and Tilt Service
Thoroughly clean the unit before disassembling.
Scrub all outside surfaces with a stiff brush and
hot, soapy water to prevent surface dirt from con-
taminating internal parts.
Always use a lint free shop cloth when handling
power trim/tilt components.
If painting the unit is required, paint it after it is
completely assembled. Painting of individual com-
ponents may cause flakes of paint to enter the
hydraulic passages during assembly. Tape the
trim/tilt piston rods before painting.
Manual Release Valve
IMPORTANT: Before removing manual release
valve, relieve pressure by fully extending cylinder.
25079
WARNING
There may be high pressure behind some
power trim valves. To avoid injury when
removing manual release valve, be sure to
cover valve with a shop cloth until the pres-
sure is released. Wear safety glasses.
