BRP E-TEC EVINRUDE - Swivel Bracket and Trailering Bracket; Throttle and Shift Linkage; Tilt Tube

39
Routine Service
Lubrication
2
Swivel Bracket and Trailering
Bracket
Lubricate the swivel bracket with Triple-Guard
grease.
Apply grease until the grease begins to flow from
the upper or lower swivel bracket areas.
Coat the pivot points of the trailering bracket with
Triple-Guard grease.
Tilt Tube
Lubricate the tilt tube grease fittings with Triple-
Guard grease.
Throttle and Shift Linkage
Disconnect the battery cables at the battery.
Remove clips and washers from throttle and shift
lever pins. Carefully, remove casing guides from
pins.
IMPORTANT: DO NOT disturb cable trunnion
adjustments.
Shift remote control into FULL THROT-
TLE/REVERSE position to fully extend the plastic
casing guides.
Apply Triple-Guard grease to:
• Cable attachment pins of both the throttle and
shift levers

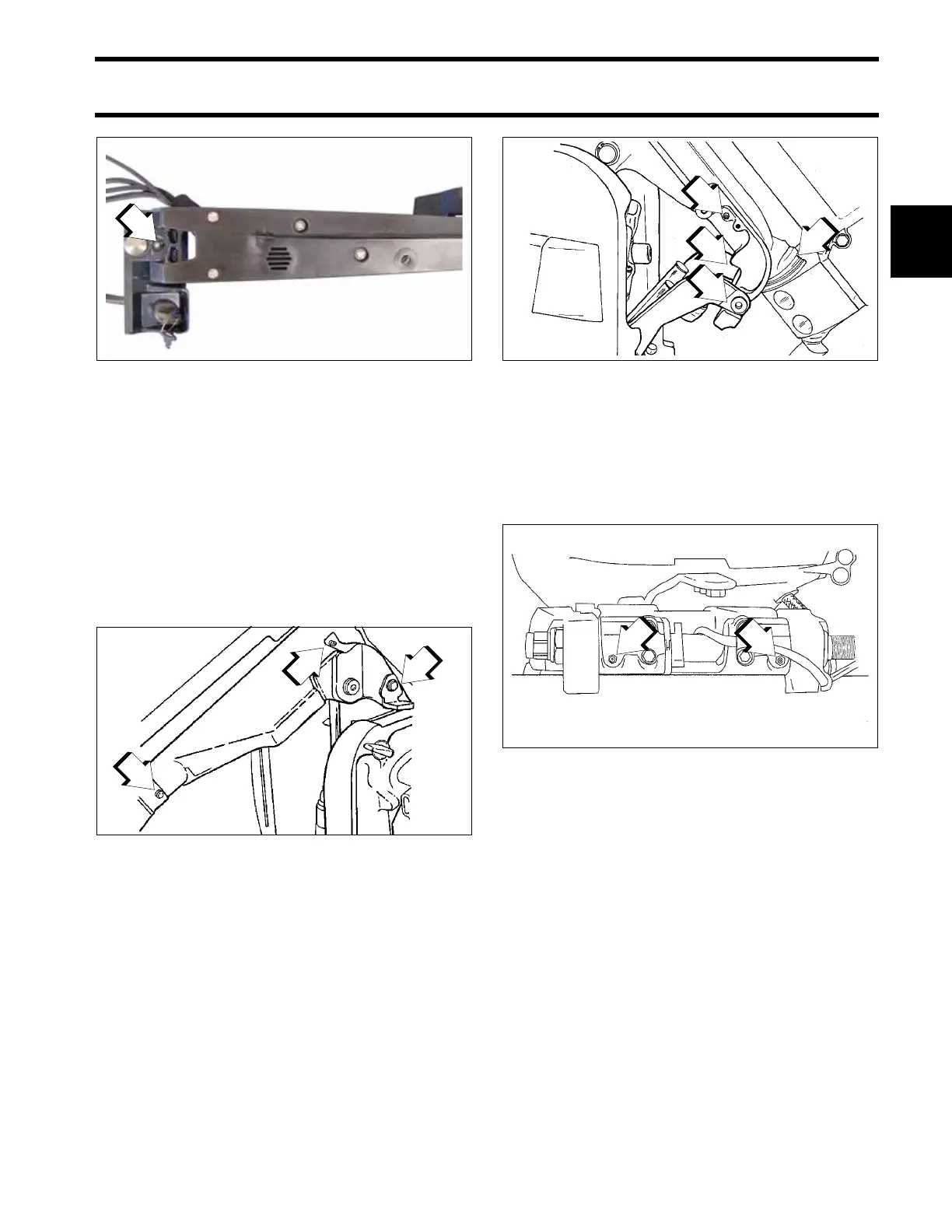

1. Tiller handle fittings – Long handle
008197
2-Cylinder models
1. Grease fitting
2. Tilt support
DR31329
1
2
1
1
3-Cylinder models
1. Grease fitting
2. Pivot points
3. Lower swivel bracket area
DR5073
1. Tilt tube fittings
DR38798
3
2
2
1
1
1
