254
Midsection

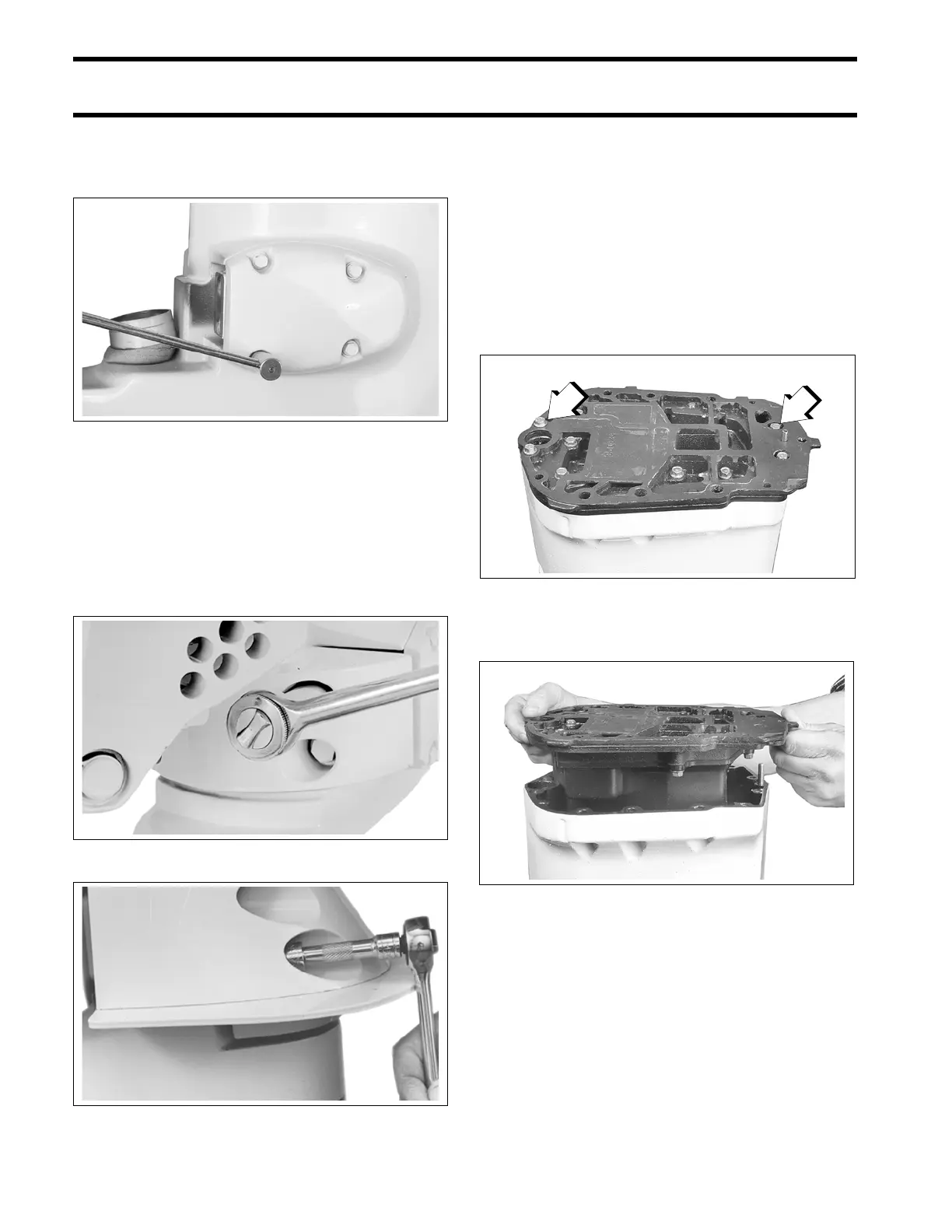

Exhaust Housing, 3-Cylinder Models
Install the mount covers. Apply Nut Lock to
screws, install washers and screws, and tighten to
a torque of 150 to 180 in. lbs. (17 to 20 N·m).
Exhaust Housing Installation
Bring the exhaust housing into position with the
stern bracket.
Install four new lower mount screws with lock-
patch. Tighten screws to a torque of 38 to 45 ft.
lbs. (51 to 61 N·m).
Install gearcase. Refer to Gearcase Removal
and Installation on p. 46.
Install powerhead. Refer to Powerhead Installa-
tion on p. 224.
Exhaust Housing Disassembly
Remove the front and rear screws retaining the
adapter/inner exhaust housing to the exhaust
housing.
Lift the adapter/inner exhaust housing out of the
exhaust housing.
001972
20” Models
23036
25” Models
32590
1. Adapter retaining screws
001981
001980
