295
Trim and Tilt
Routine Inspections
12
3-Cylinder Models
Use the trailering bracket to support the outboard
when trailering in the tilted position. This bracket
protects the hydraulic system from damage.
Tilt the outboard up fully, engage the bracket, then
tilt the outboard down until the bracket is firmly in
position.
For mooring or storing the boat with the outboard
tilted, a tilt support is provided to support the out-
board.
IMPORTANT: The tilt support must not be used
to support the outboard while trailering.
Routine Inspections
General
Check for external signs of fluid leakage. Correct
causes as necessary.
Check the battery to be sure it is in good operating
condition.
Reservoir Fluid
Check reservoir fluid level at least every three
years or 300 operating hours. System capacity is
approximately:
• 2-Cylinder Models: 15.2 fl. oz. (450 ml)
• 3-Cylinder Models: 21 fl. oz. (620 ml)
IMPORTANT: Use only Evinrude/Johnson Bio-
degradable TNT Fluid to fill the hydraulic system.
Refer to Trim and Tilt on p. 41 for filling proce-
dure.
Manual Release Valve
Check the manual release valve with a torque
wrench.
IMPORTANT: Tighten valve to a torque of 45 to
55 in. lbs. (5 to 6 N·m).
Stern Brackets
Inspect the stern brackets for binding.
Tighten starboard tilt tube nut to a torque of 45 to
50 ft. lbs. (61 to 68 N·m).

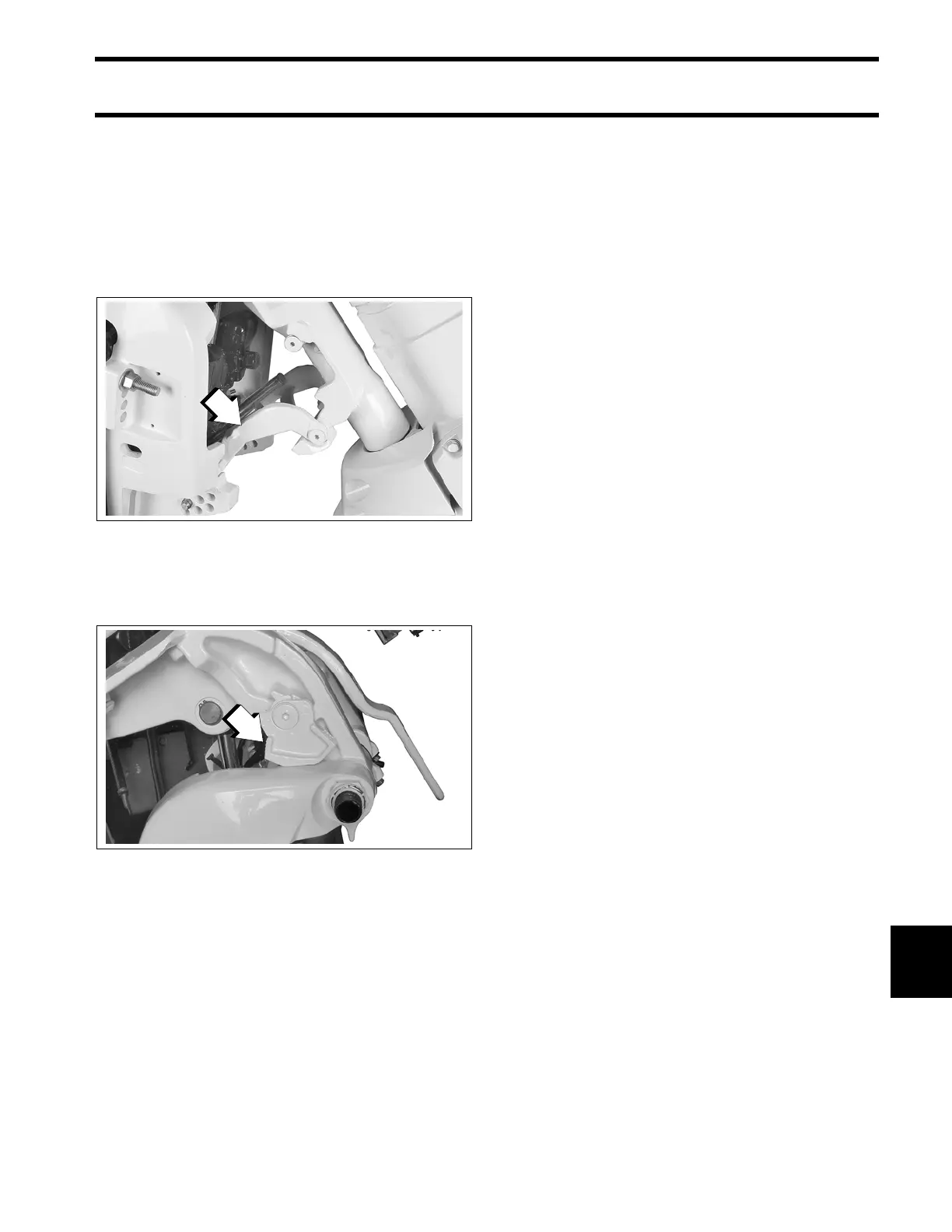

1. Trailering Bracket
001987
1. Tilt Support
002279
