BRP E-TEC EVINRUDE - Latch Hook Installation; Lower Cover Installation; Lower Cover Removal; Lower Cover Service

Engine Cover Service
Upper Cover Service
56
Upper Cover Service
Latch Hook Installation
Insert threaded bracket into pocket.
Apply Ultra-Lock to screw threads. Place hook
into position with opening toward the front. Tighten
screws to a torque of 60 to 84 in. lbs. (7 to 9.5
N·m).
Lower Cover Service
Lower Cover Removal
Remove lower engine cover screws.
Loosen port side cover slightly, and disconnect
trim/tilt switch connector. Then, remove port and
starboard covers.
Lower Cover Installation
Installation of lower motor covers will be easier if
the following steps are performed in order:
• Install air silencer on throttle body.
• Place starboard cover on outboard and route
fuel hose and battery cable through grommet
notch.
• Insert trim cable grommet into port side cover.
• Connect trim/tilt switch connector.

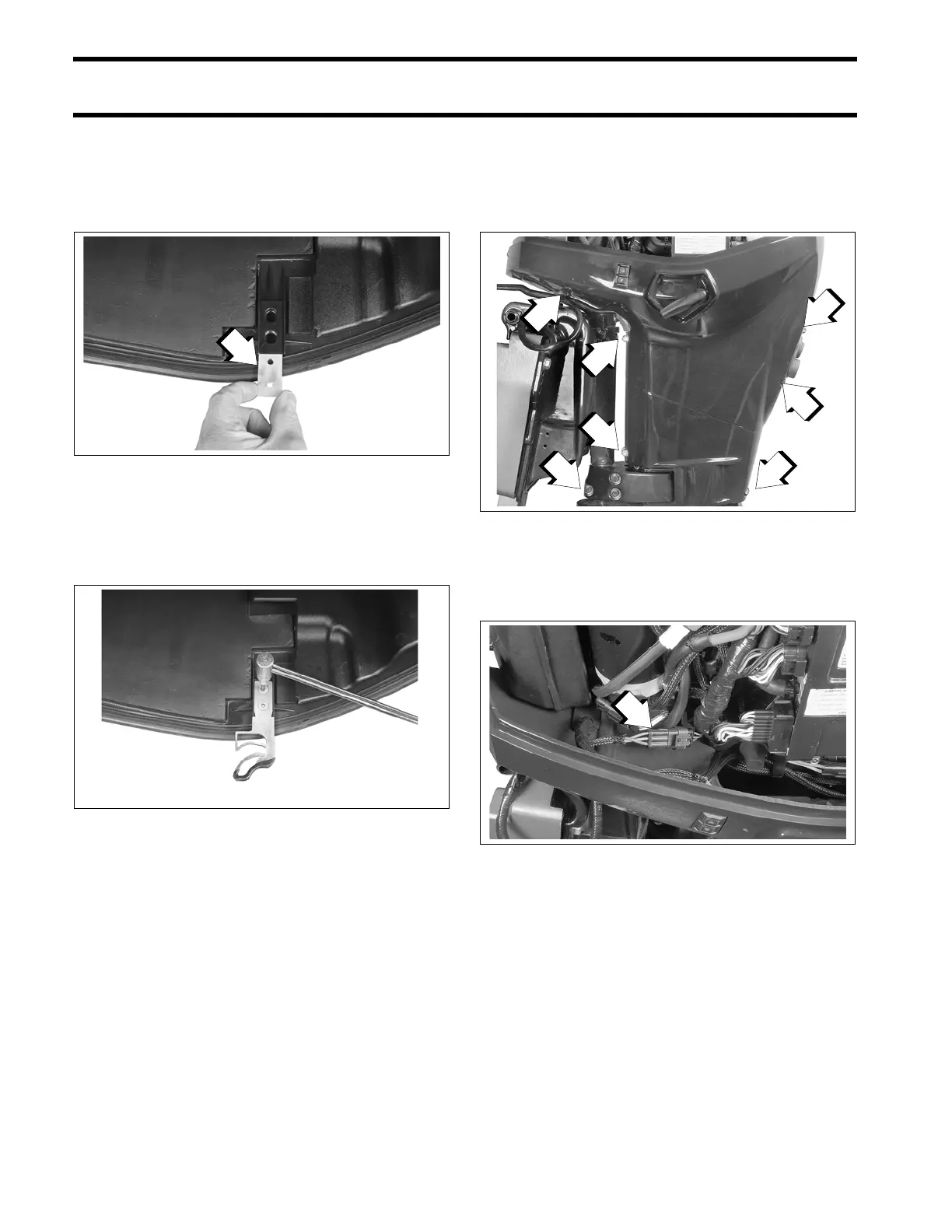

1. Bracket 006468
