BRP E-TEC EVINRUDE - Removal; Tiller Handle Service - Long Handle

279
Midsection
Tiller Handle Service – Long Handle
11
Tiller Handle Service –
Long Handle
Removal
Use Ball Socket Remover tool, P/N 342226, to
unsnap the throttle cable clip from the throttle
lever.
Remove the throttle cable anchor screw and
washer. Loosen throttle cable retainer screw. And,
remove the tie strap holding the tiller handle elec-
trical harness.
Remove retainer clip from shift cable.
Remove the electrical cover.
Disconnect the electrical harness coming from the
tiller handle.
Remove shift and throttle cables and wire harness
from grommet in lower engine cover.
Remove locknuts from screws on top of steering
arm.
 WARNING
Disconnect the Crankshaft Position Sensor
to prevent accidental starting of the engine
while servicing.

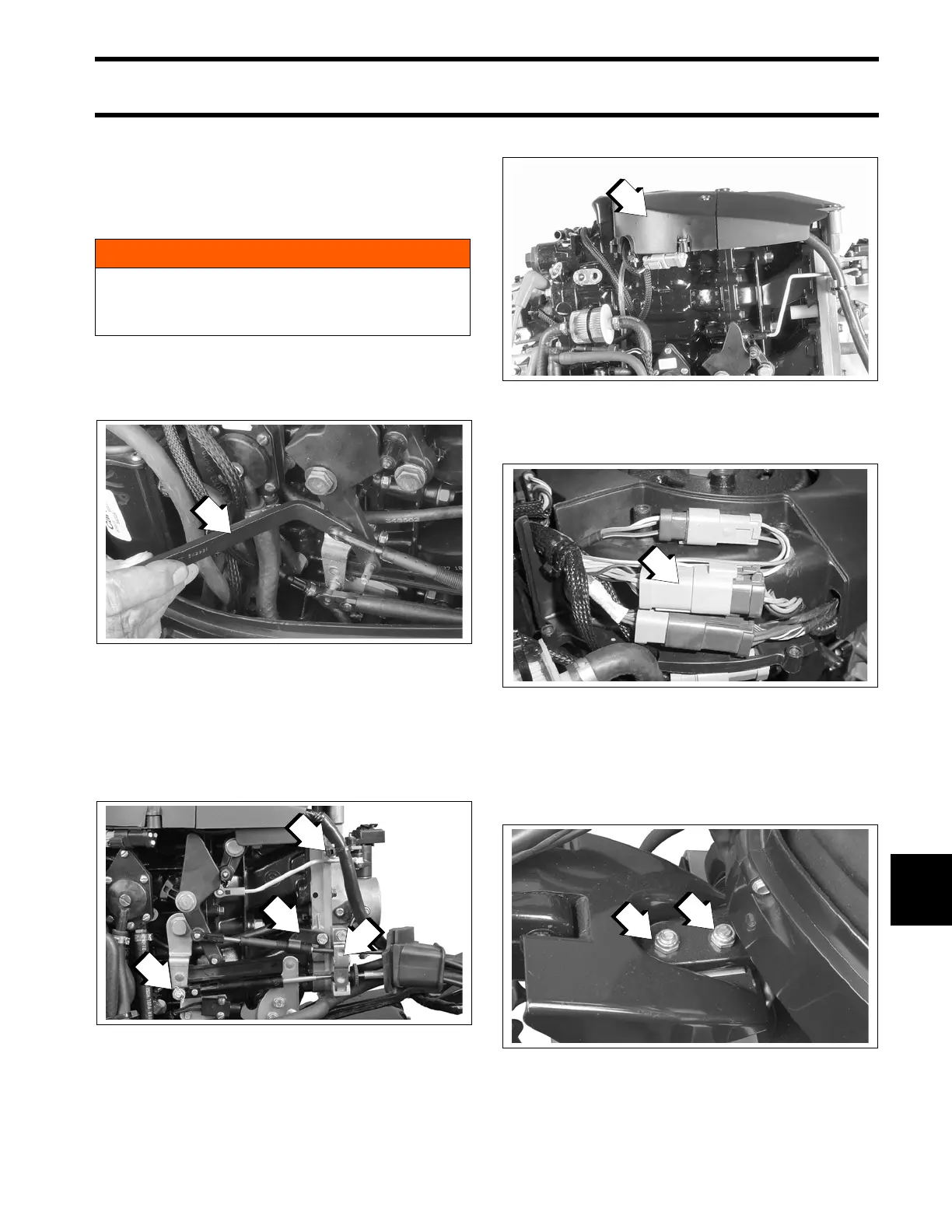

1. Remover tool, P/N 342226
005121
1. Throttle cable anchor
2. Shift cable retainer clip
3. Cable retainer
4. Tie strap
006745
1
2
3
1
4
1. Electrical cover
002084
1. Electrical harness connectors
001999
1. Locknuts
006362
1
1
1
