278
Midsection
Tiller Handle Service – Standard

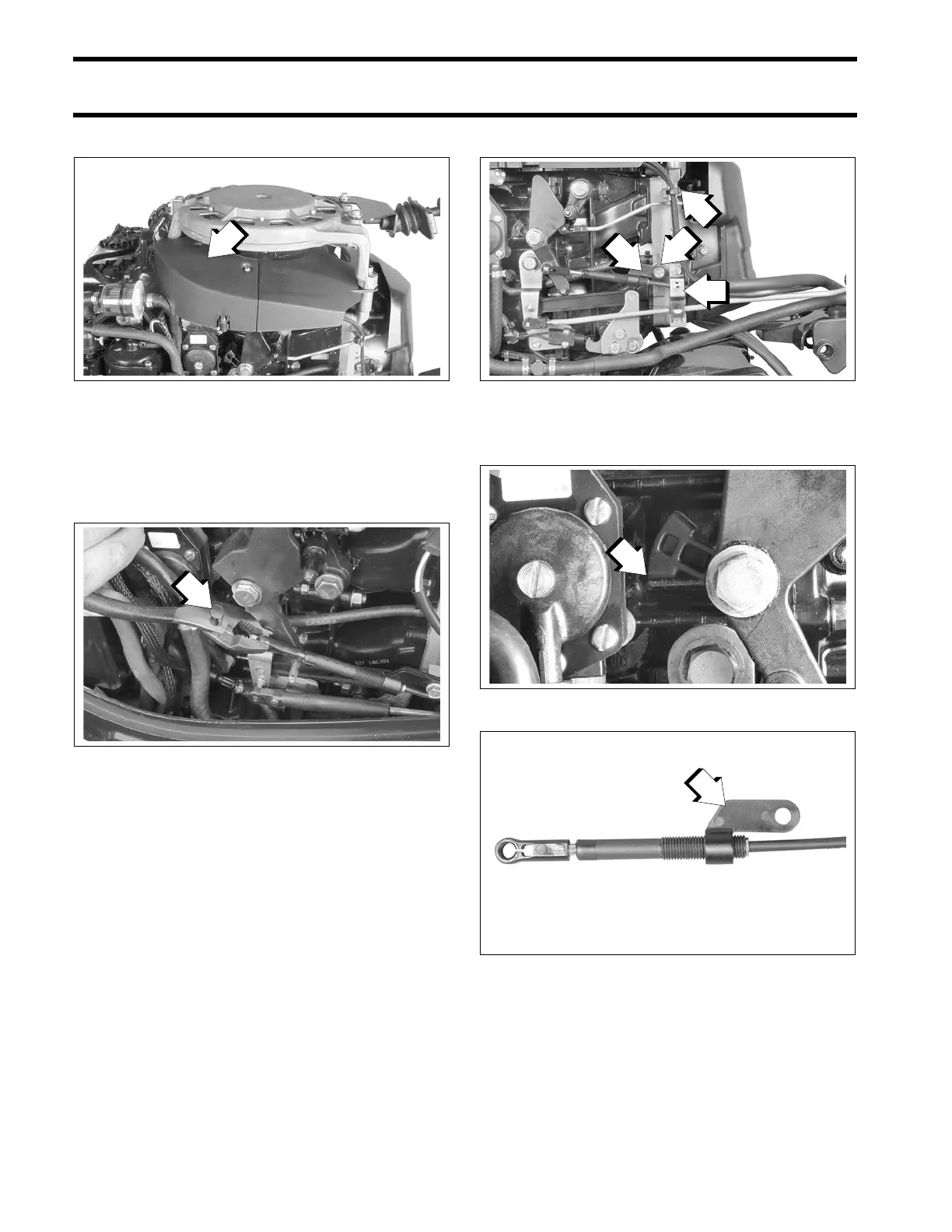

Install electrical cover.
Throttle Cable Adjustment
Place throttle cable in position. Use Ball Socket
Installer tool, P/N 342225, to snap throttle cable
connector onto throttle lever.
Place throttle cable in upper anchor pocket. Install
cable retainer on anchor block.
Hold twist grip in full SLOW position. Pull firmly on
cable to remove backlash.
Adjust cable anchor so throttle cam is against idle
stop when anchor screw aligns with throttle body
boss. Then, rotate anchor four turns toward the
end of the cable.
Install washer, cable anchor, and cable anchor
screw on throttle body boss. Tighten screw
securely.
Secure electrical harness with tie strap.
IMPORTANT: Rotate twist grip. Make sure throt-
tle cam goes to full throttle without bending cable,
and still returns to IDLE stop.
1. Electrical cover
002509
1. Installer tool, P/N 342225
005106
1. Cable anchor
2. Boss
3. Cable retainer
4. Tie strap
006526
1. Throttle lever stop
005114
1. Turn anchor four turns toward cable end.
006564
