Oiling System
Oil Component Servicing
8
Repair any oil leaks and kinked or misrouted
hoses. Install air silencer and engine covers.

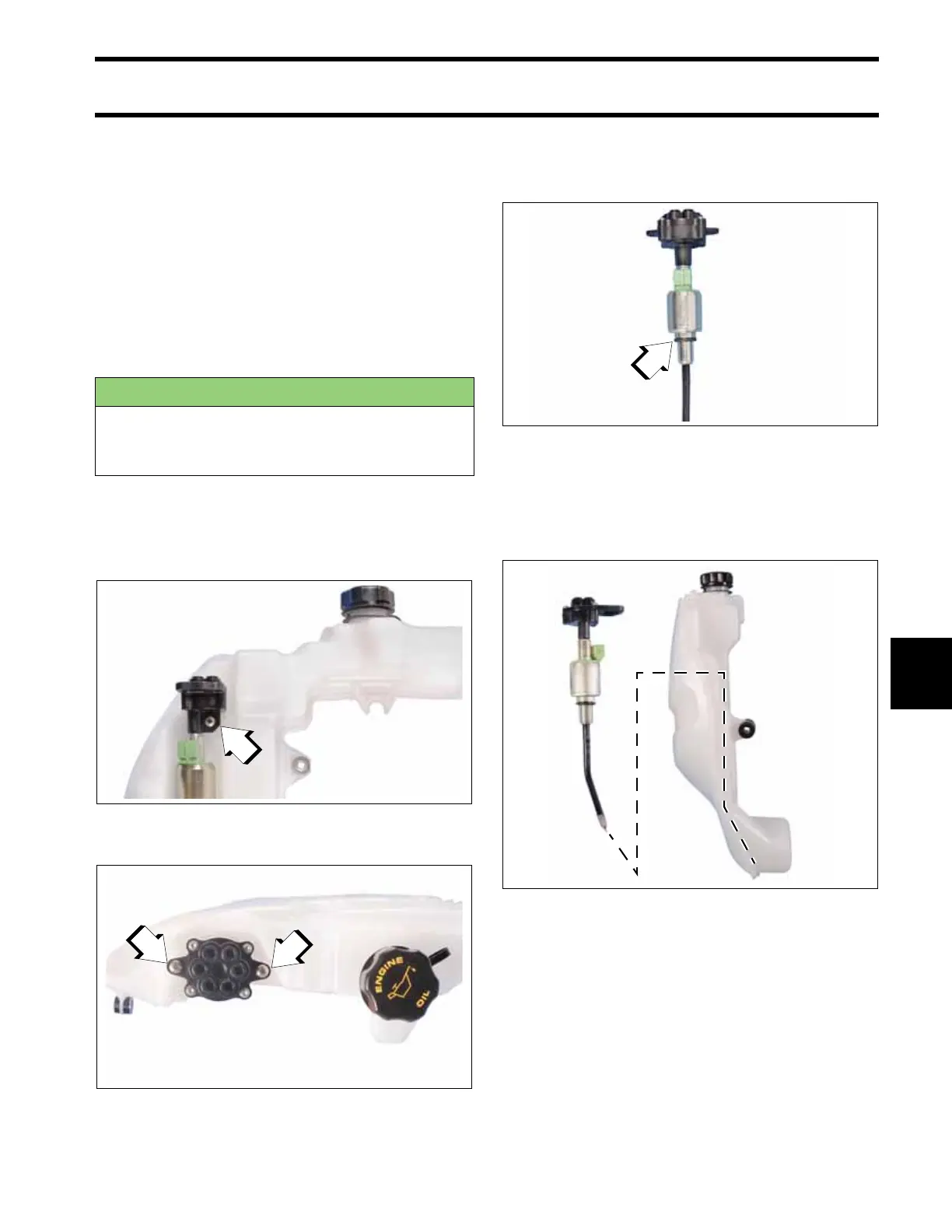

Oil Injection Pump
Removal
Remove oil distribution hoses from oil manifold.
Refer to Oil Distribution Hoses on p. 174.
Remove oil from oil tank.
Clean up any spilled oil with shop towels.
Remove oil tank. Refer to Oil Tank Assembly on
p. 175. Remove retaining screw(s) from oil pump
assembly. Twist and pull up on oil pump to remove
from tank. DO NOT pull up on oil manifold.
Installation
Apply a drop of outboard lubricant to a new oil
pump o-ring. Install o-ring on oil pump flange.
2-Cylinder Models
Install oil pump and manifold so that bend of oil
pick up assembly is positioned to follow the con-
tour of the oil tank as shown.
3-Cylinder Models
Install oil pump and manifold straight into oil tank.
ENVIRONMENTAL NOTE
Dispose of used oil or oil contaminated towels in
an environmentally responsible manner, or
according to local regulations.
2-Cylinder Models
1. Screw
008180
3-Cylinder Models
1. Screws
008181
1. O-ring
008064
008182
