Midsection
Exhaust Housing, 3-Cylinder Models
IMPORTANT: A distorted exhaust housing will
cause the upper driveshaft splines to wear exces-
sively and will damage the crankshaft splines.
Inspect the water tube for obstructions or kinks,
which may restrict water flow.

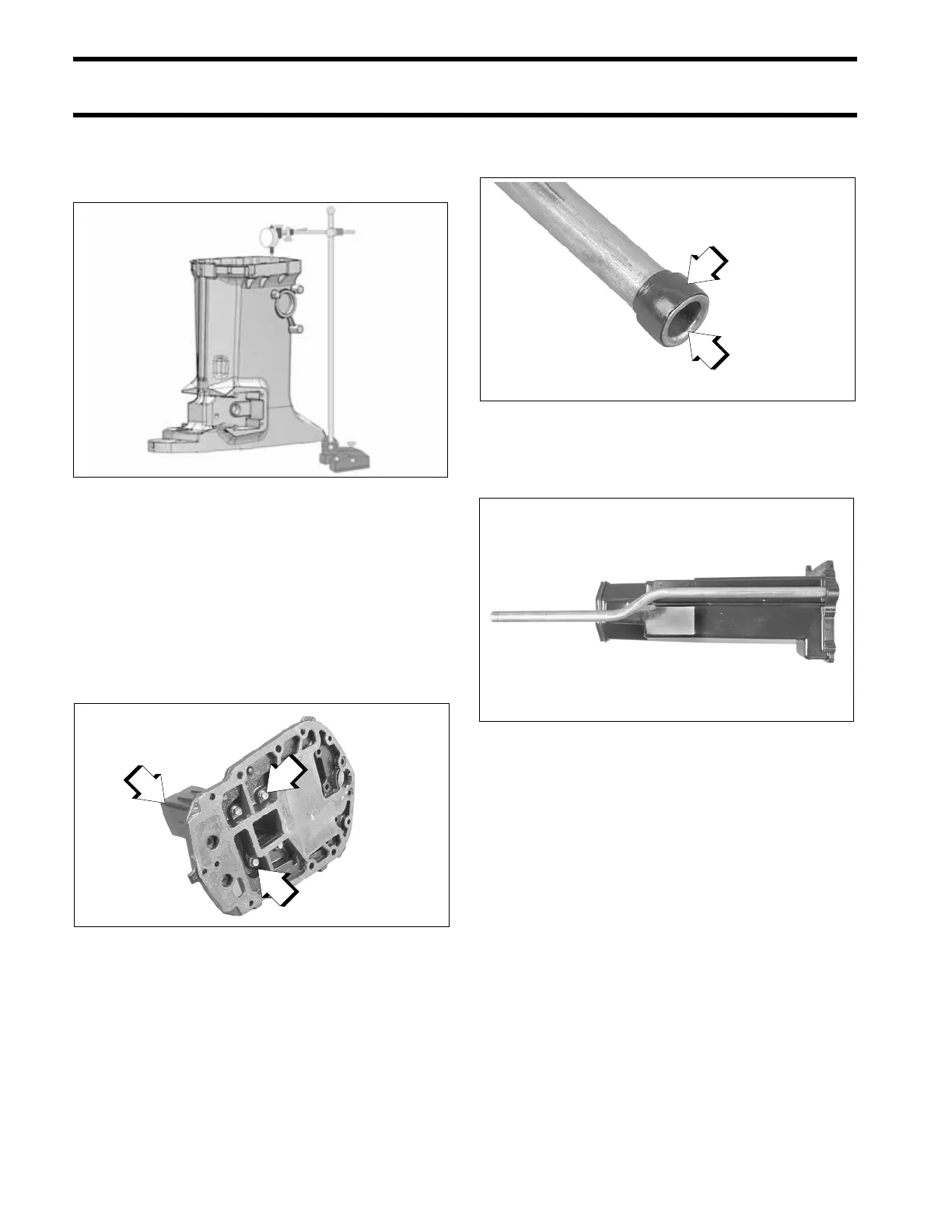

Exhaust Housing Assembly
Place a new gasket between the exhaust mega-
phone and adapter housing. Apply Ultra Lock to
the threads of the screws and tighten to a torque
of 60 to 84 in. lbs. (7 to 9.5 N·m).
Place a new grommet on the water tube and coat
the outside edge with Adhesive 847.
Install the water tube through the top of the inner
exhaust housing and align as shown:
Place a new gasket between the inner exhaust
housing and the adapter housing. Apply Ultra
Lock to the screws. Install the three lower screws
010358
1. Adapter to megaphone screws
2. Exhaust megaphone
001976
1. Water tube grommet
2. Flared end of water tube
001977
001982
