Fuel System
Fuel Component Servicing
7
Pressure Gauge, P/N 5007100, to top test fitting
of fuel pump/vapor separator assembly.
Insert venting hose of gauge into a suitable con-
tainer.
Slowly open gauge’s venting valve.
Clean up any spilled fuel with shop towels.
Fuel Filter Service
Removal
Disconnect the battery cables at the battery.
Remove filter carefully to prevent spilling contents.
Clean up any spilled fuel with shop towels.
Inspect contents for any presence of water. If
water is present, identify the source and correct
the problem. Take additional fuel samples and
drain fuel tank(s) if necessary.
Installation
Install filter in fuel supply hoses. Note arrow indi-
cating direction of fuel flow on filter. Secure filter
with appropriate clamps.
Squeeze primer bulb to prime fuel system. Hold
pressure on bulb and check for fuel leaks.
Connect battery cables.
Run outboard and check for fuel leaks.
Fuel Lift Pump Service
The fuel lift pump is serviceable as a complete
assembly or can be repaired with a fuel pump
repair kit. Refer to parts catalog for service parts.
Removal
Disconnect the battery cables at the battery.
Disconnect the fuel hoses from the fuel pump
housing.

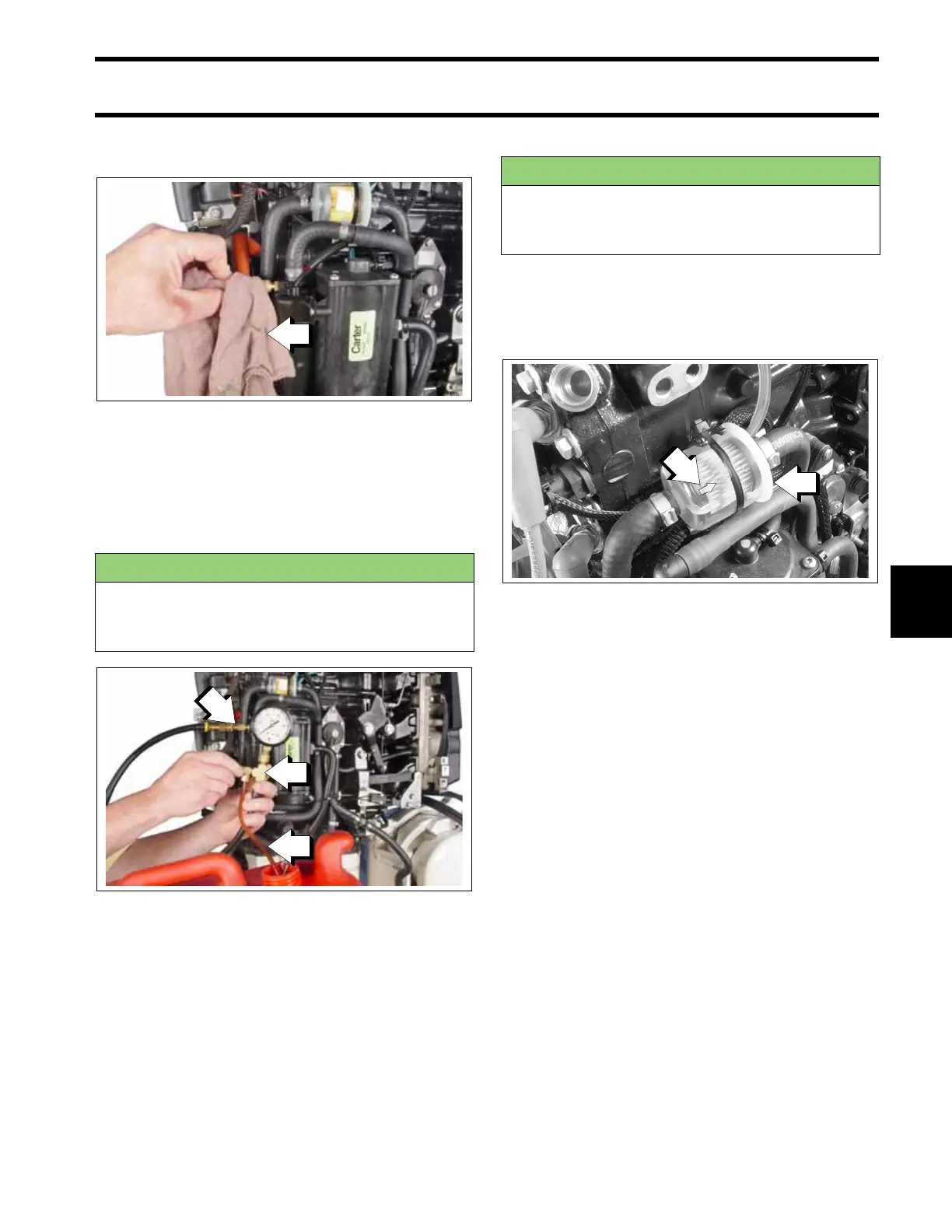

1. Shop towel
005011
ENVIRONMENTAL NOTE
Dispose of fuel contaminated towels in an envi-
ronmentally responsible manner, or according to
local regulations.
1. Test fitting
2. Venting valve
3. Venting hose
005012
ENVIRONMENTAL NOTE
Dispose of fuel contaminated towels in an envi-
ronmentally responsible manner, or according to
local regulations.
1. Fuel filter
2. Arrow
002192
