Cooling System

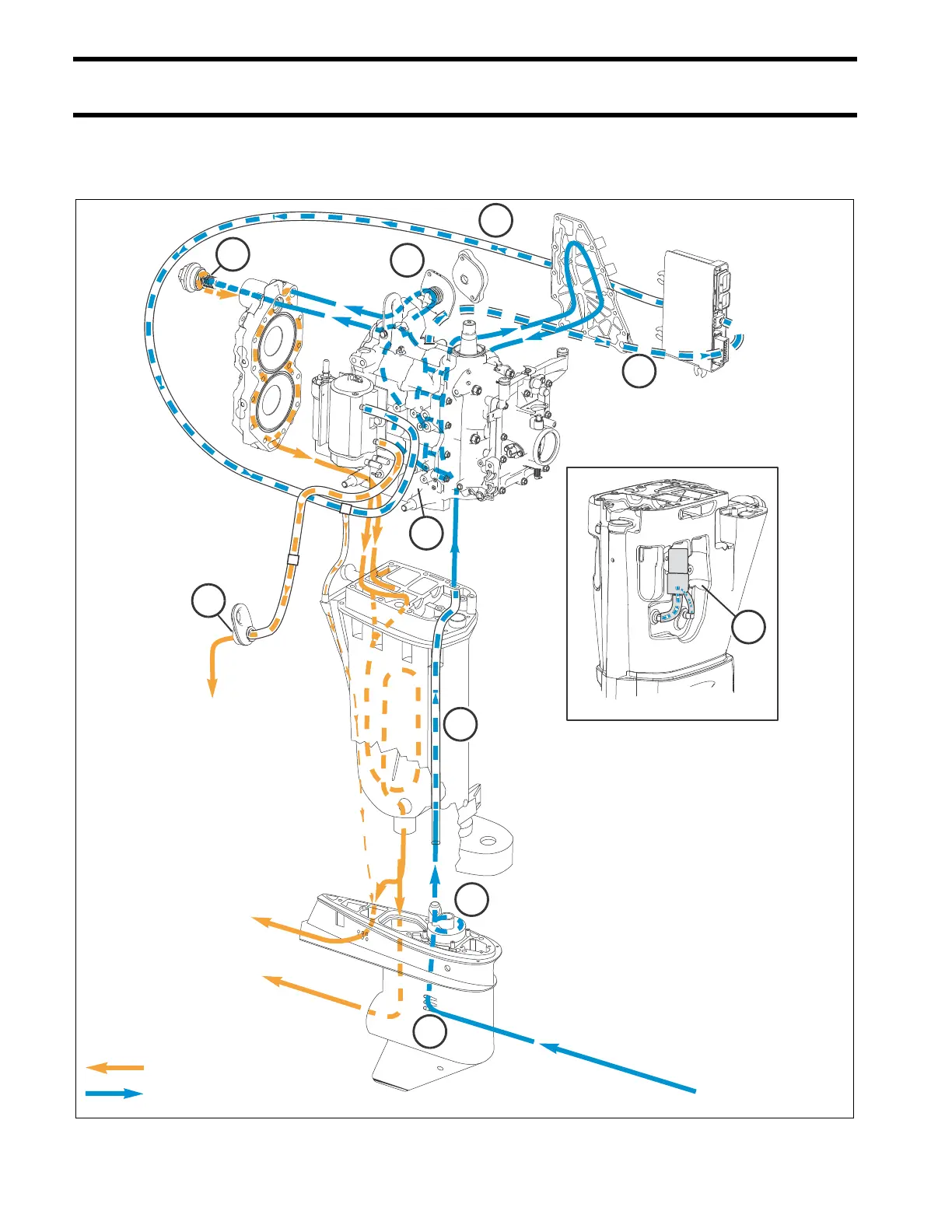

Hose Routing and Water Flow Diagrams
Hose Routing and Water Flow Diagrams
2-Cylinder Models
004971
9
2
4
5
6
8
7
1
3
10
Incoming water (cool)
Outgoing water (warm/hot)
1.Water intake screens
2.Water pump
3.Exhaust housing
4.Cylinder block
5.Pressure relief valve
6.Thermostat
7.Water supply to EMM
8.Water supply, EMM to vapor
separator
9.Overboard indicator, outgoing
water from vapor separator
10.Exhaust Water Valve
