BRP E-TEC EVINRUDE - Page 181

181
Cooling System

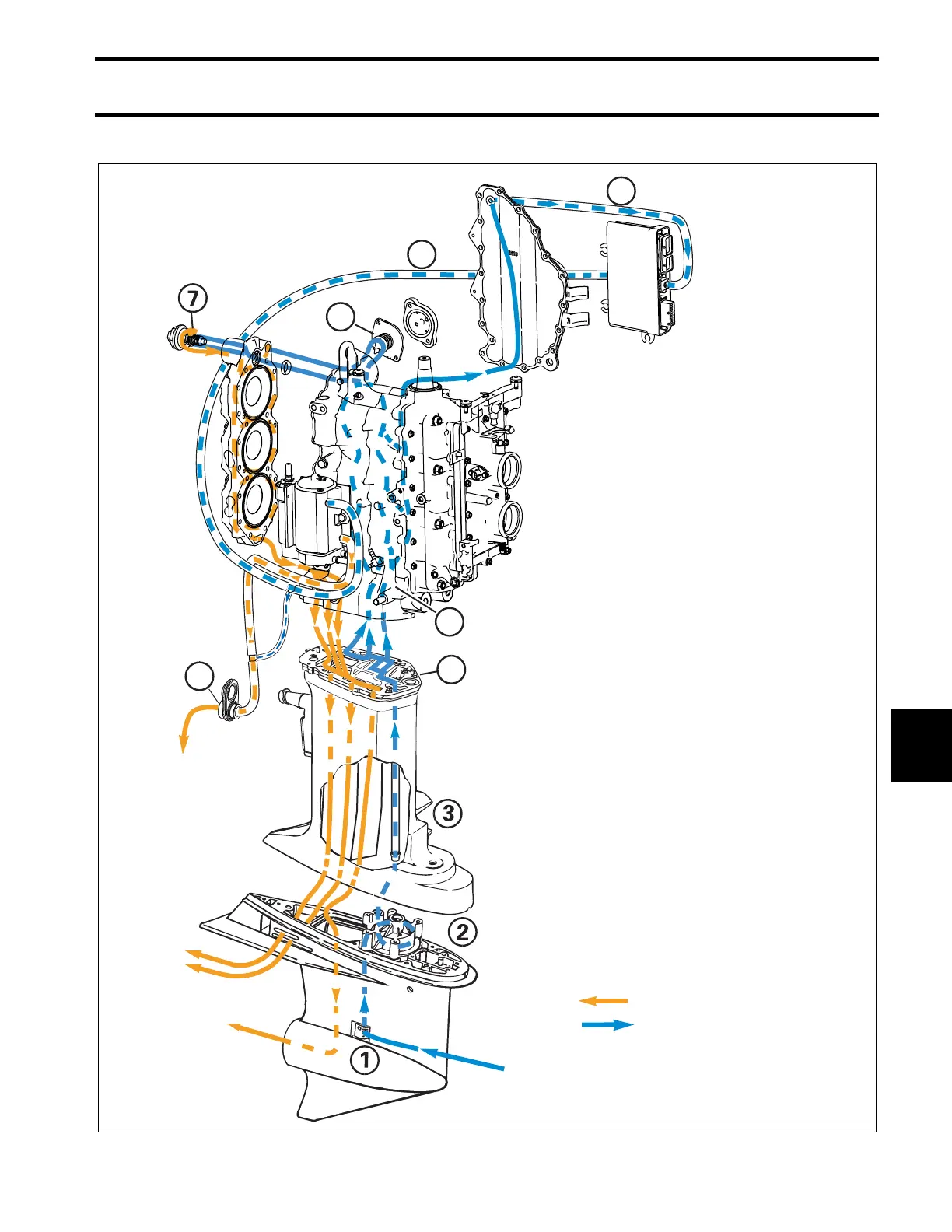

Hose Routing and Water Flow Diagrams
9
3-Cylinder Models
6
4
8
9
10
5
001818
1.Water intake screens
2.Water pump
3.Water tube
4.Adapter housing
5.Cylinder block
6.Pressure relief valve
7.Thermostat
8.Water supply to EMM
9.Water supply, EMM to vapor separator
10.Overboard indicator, outgoing water
from vapor separator.
Incoming water (cool)
Outgoing water (warm/hot)
