BRP E-TEC EVINRUDE - Electrical Circuit (55 V); LOW OIL Warning; NO OIL Warning; Oil Injection Pump

167
Oiling System
Components
8
• Oil distribution hoses
Oil Injection Pump
The oil injection pump is an electric (55 V) actua-
tor style pump. It draws oil from the oil tank and
supplies pressurized oil to the oil manifold. The
EMM supplies 55 V and controls activation of the
pump.
The oil manifold distributes the oil supplied by the
pump.
Electrical Circuit (55 V)
The oil injector is powered by the 55 V electrical
circuit. The EMM controls pump operation by rap-
idly connecting and disconnecting the pump’s
internal coil to ground.
The EMM monitors the oil injection pump electri-
cal circuit. If circuit voltage is beyond the specified
range, or the circuit is open, the EMM:
LOW OIL Warning
A switch in the oil tank assembly monitors the oil
level in the oil tank.
If the oil level falls below one-quarter capacity, the
EMM signals:
Approximate oil reserve at Low Oil activation:
• 0.45 qt. (0.43 l).
NO OIL Warning
When the oil level falls below one-quarter, the
EMM begins counting oil pump pulse cycles.
When it reaches:
• 2-Cylinder Models: 4800 pulses
• 3-Cylinder Models: 6000 pulses
the EMM:
To recover from S.A.F.E. mode:
• Oil level must be above one-quarter
• The warning resets after three oil pump pulse
cycles when the outboard has been stopped
and restarted.

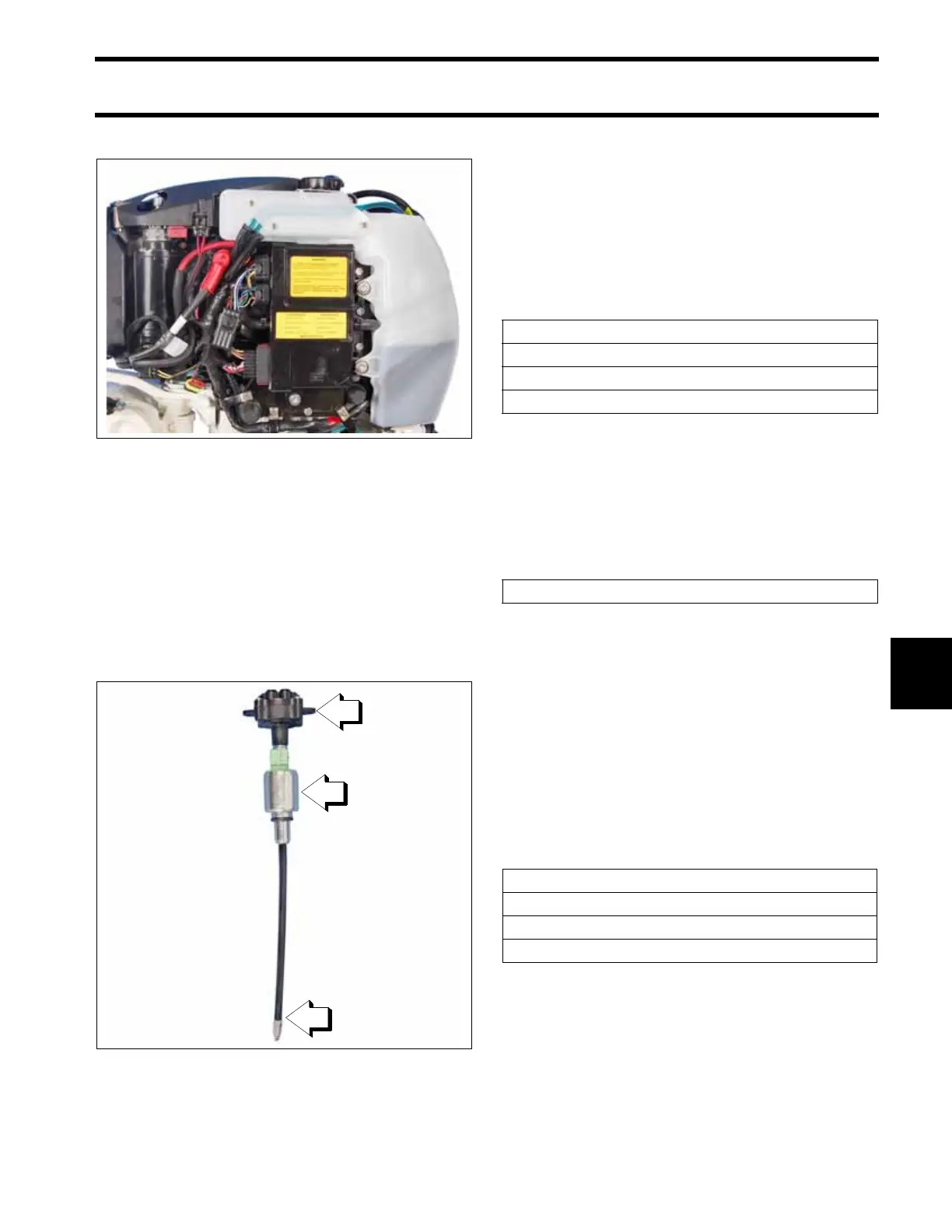

008063
1. Oil injector pump
2. Oil distribution manifold
3. Pickup tube and filter
008064
3
2
1
Activates S.A.F.E.
Stores a service code 34
EMM LED 4: ON (Running)
Engine Monitor NO OIL display: ON
Engine Monitor LOW OIL display: ON
Activates S.A.F.E.
Stores service code 117
EMM LED 4: ON (Running)
Engine Monitor NO OIL display: ON
