BRP E-TEC EVINRUDE - Stern Bracket Disassembly; Stern Bracket, 2-Cylinder Models with Power Tilt

258
Midsection
Stern Bracket, 2-Cylinder Models with Power Tilt
Stern Bracket,
2-Cylinder Models with
Power Tilt

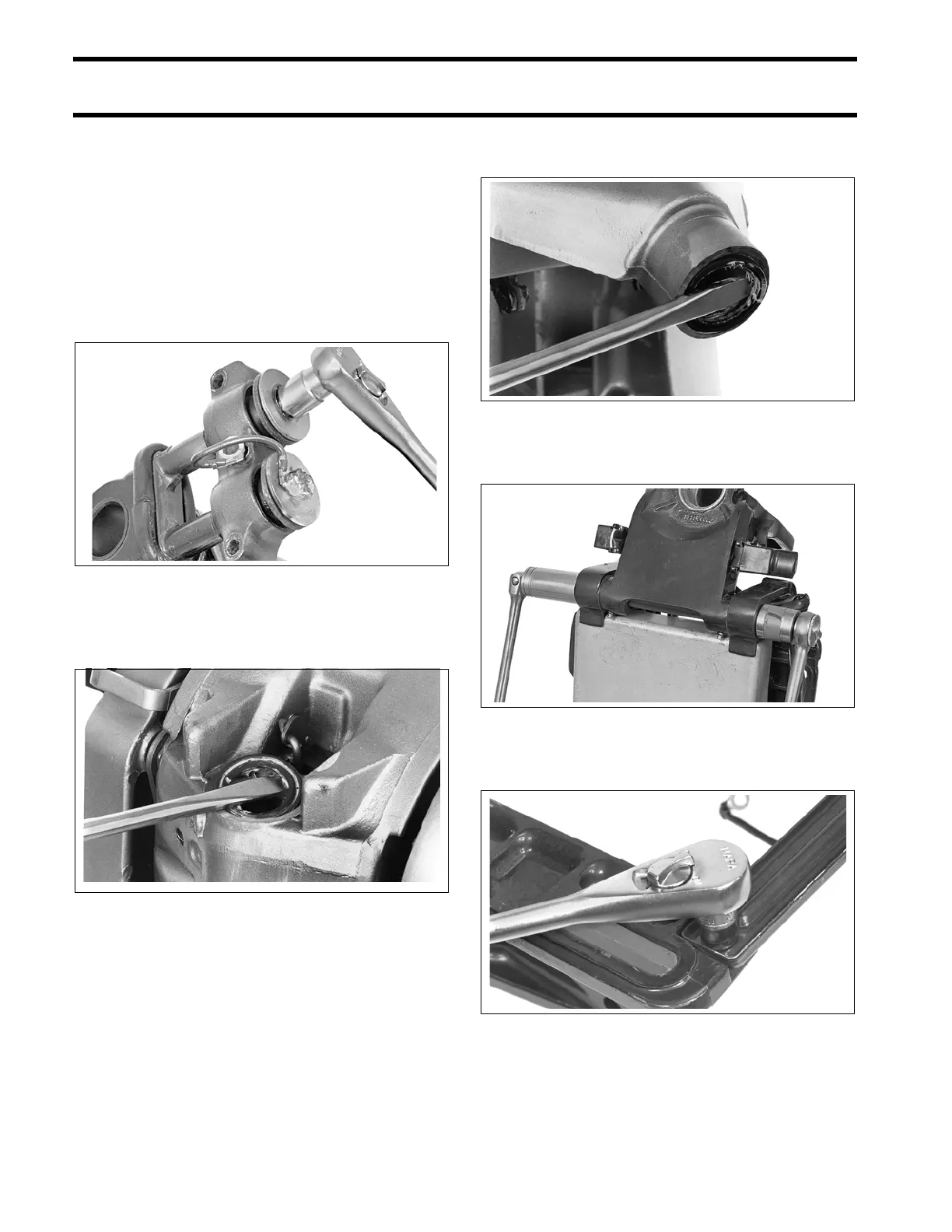

Stern Bracket Disassembly
Remove the bumpers from the upper mount
retaining screws. Remove the screws, upper
mount, and ground lead from the bracket.
Pull the steering arm out of the swivel bracket.
Use an appropriate tool to pry the upper seal from
the swivel bracket.
Use an appropriate tool to pry the lower seal from
the swivel bracket.
To separate the swivel bracket from the stern
bracket, remove one tilt tube nut.
Remove the tie bar to separate the two stern
brackets.
17505
COA2957
COA2958
17544
17541
