Midsection
Tiller Handle Service – Standard
11
Remove the electrical cover.
Disconnect the electrical harness coming from the
tiller handle.
Remove throttle cable and wires from grommet in
lower engine cover.
Remove the screw attaching steering handle.
Remove handle.
Disassembly
Loosen throttle friction control so there is no
restriction on grip.
IMPORTANT: Do not back screw out completely.
Nut is under spring tension.
Use Twist-Grip Remover, P/N 390767, to depress
the grip detents. Tighten screw and remove the
grip by pulling grip.

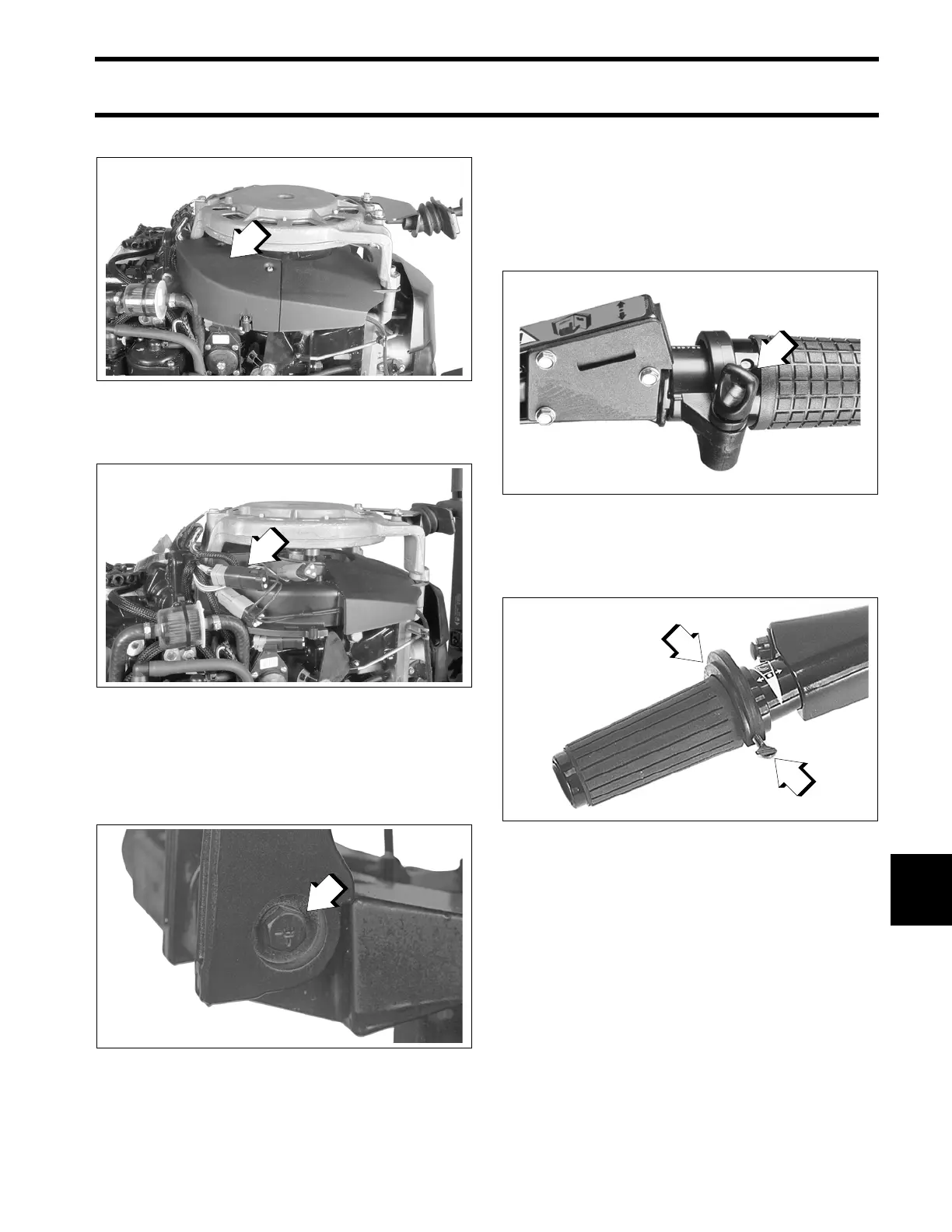

1. Electrical cover
002509
1. Electrical harness connector
002511
1. Screw
31194
1. Throttle friction control
001259
1. Twist-Grip Remover, P/N 390767
2. Screw
002189
