Powerhead
Upper Mount Servicing (3-cylinder)
222
or Powerhead Views on p. 229.
Install thermostat assembly. Refer to Thermostat
Servicing on p. 189.
Install pressure valve assembly. Refer to Pres-
sure Relief Valve Servicing on p. 190.
Install shift linkage. Refer to Shift Linkage Instal-
lation on p. 220.
Install throttle linkage. Refer to Throttle Linkage
Installation on p. 220.
Install fuel injectors and ignition coils. Refer to
Fuel Injector Installation on p. 154 and Ignition
Coil Servicing on p. 119.
IMPORTANT: All injectors must be installed in
their original location. Improper injector installation
can result in powerhead failure.
Install stator and flywheel. Refer to Flywheel and
Stator Servicing on p. 116.
Install electrical harness, then install EMM. Refer
to EMM Servicing on p. 77.
Install fuel pump assemblies, fuel manifolds, and
filter. Refer to Fuel Component Servicing on
p. 148.
Install the oil tank and oil injection hoses. Refer to
Oil Tank Assembly on p. 175.
Install the electric starter. Refer to Starter Starter
Installation on p. 121.

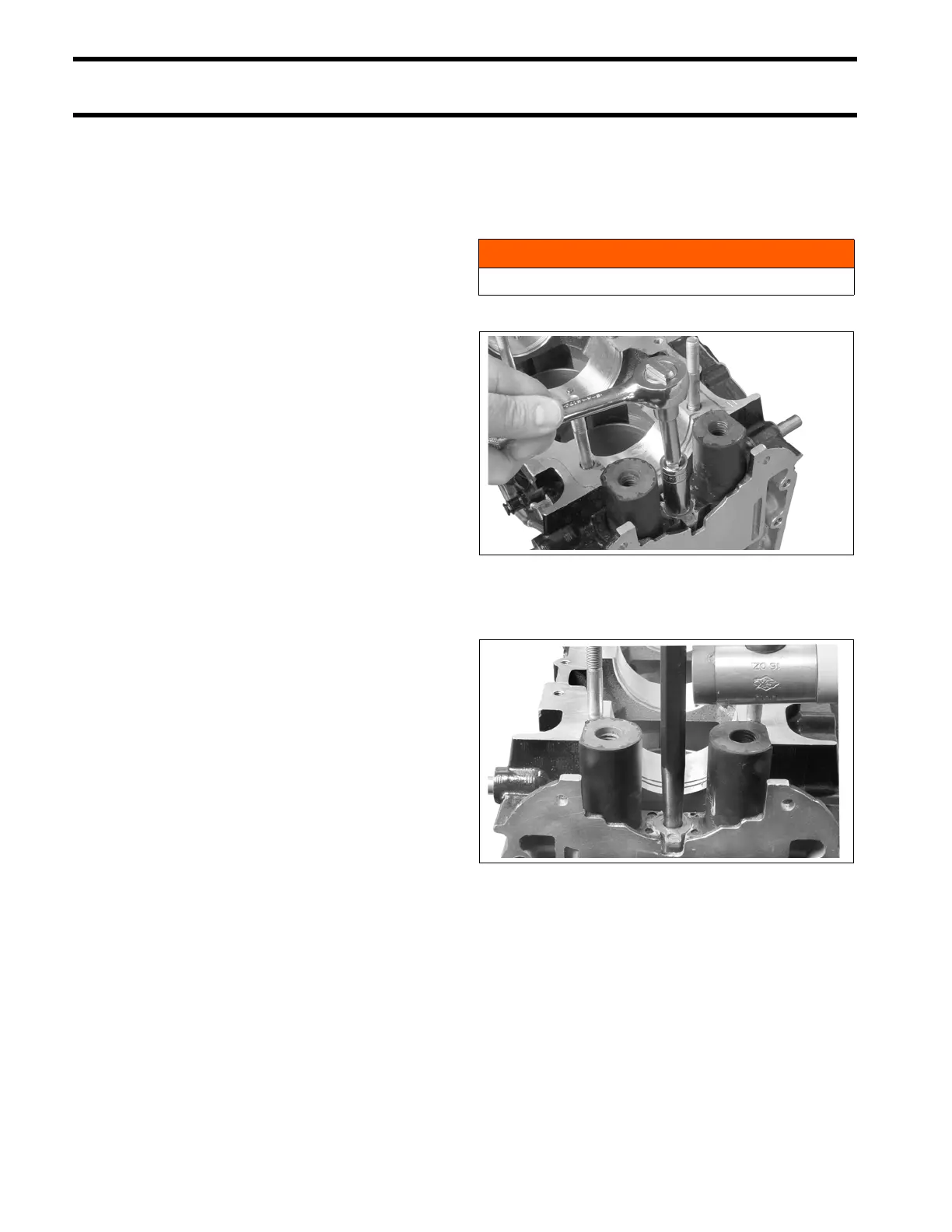

Upper Mount Servicing
(3-cylinder)
Removal
Remove mount retainer screw.
Insert suitable punch in taper of mount retainer.
Tap side of punch to loosen mount retainer.
WARNING
Wear safety glasses to avoid injury.
002069
002130
