Midsection
Tiller Handle Service – Long Handle
11

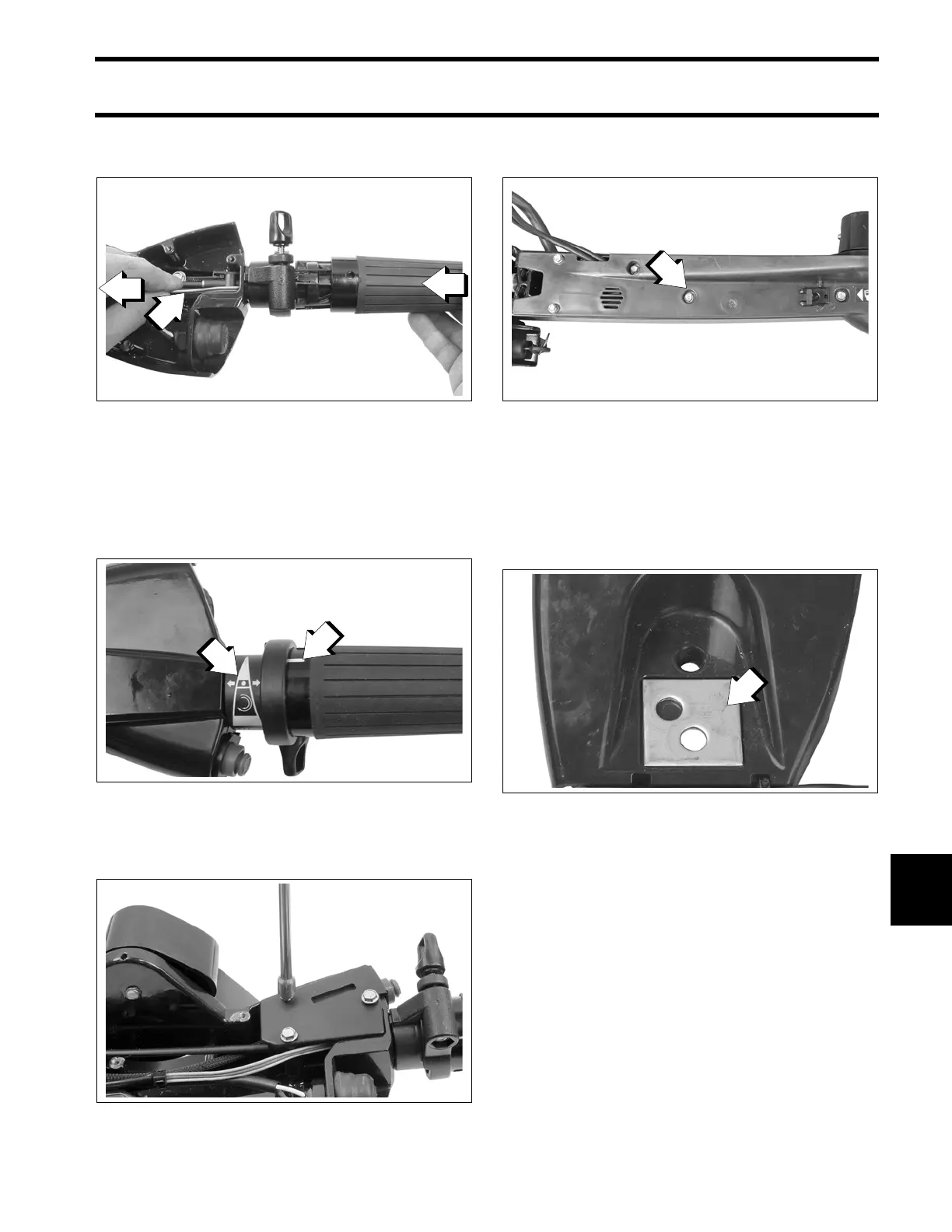

Carefully pull trim switch wires through inner tiller
handle as twist grip assembly is installed.
Install trim switch connector. Refer to Connector
Servicing on p. 122.
Be sure the twist-grip's speed indicator line is
positioned with the speed range symbol on the
handle. Snap the grip into place.
Install stop switch assembly and connect to har-
ness.
Install bottom cover of tiller handle with seven
screws.
Installation
The steering arm can be positioned straight, or
angled 15° port or starboard by moving the adjust-
ment plate.
Place tiller bracket on steering arm from the bot-
tom. Thread steering arm screws, with washers,
1. Trim switch wiring
006677
1. Indicator line
2. Speed range symbol
006719
006713
1
1
2
1. Cover screw
006566
1. Plate adjustment for tiller in CENTER position.
005083
1
1
