Midsection
Tiller Handle Service – Long Handle

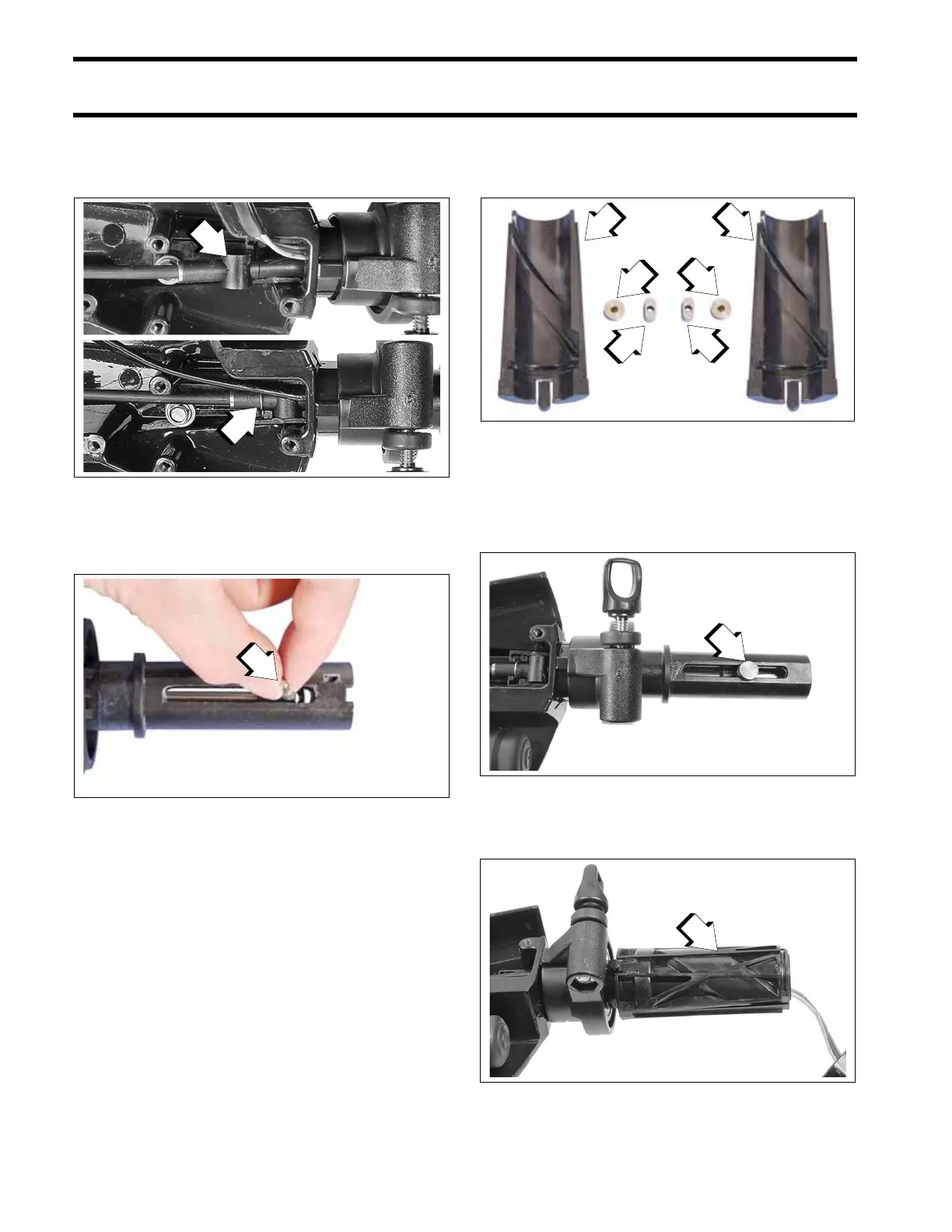

Install the handle end of the throttle cable. Snap
the throttle cable trunnion into the recess in the
handle. Install the retainer clip.
Push the throttle cable pin through the end of the
throttle cable.
Lubricate end of the pin, guides, rollers, helix
halves, and inner handle guide slot with Moly
Lube.
Place the guides over the roller pin and into the
slots of the inner handle. Place the rollers on the
ends of the roller pin.
Assemble the helix halves on the handle and slide
the grip over the helix.
1. Throttle cable trunnion
2. Retainer
006683
1. Pin
006712
2
1
1
1. Helix halves
2. Rollers
3. Guides
COA2674
1. Roller
006670
1. Helix halves
006718
1
3
3
2
2
1
1
1
