Oiling System
Oil Component Servicing
174

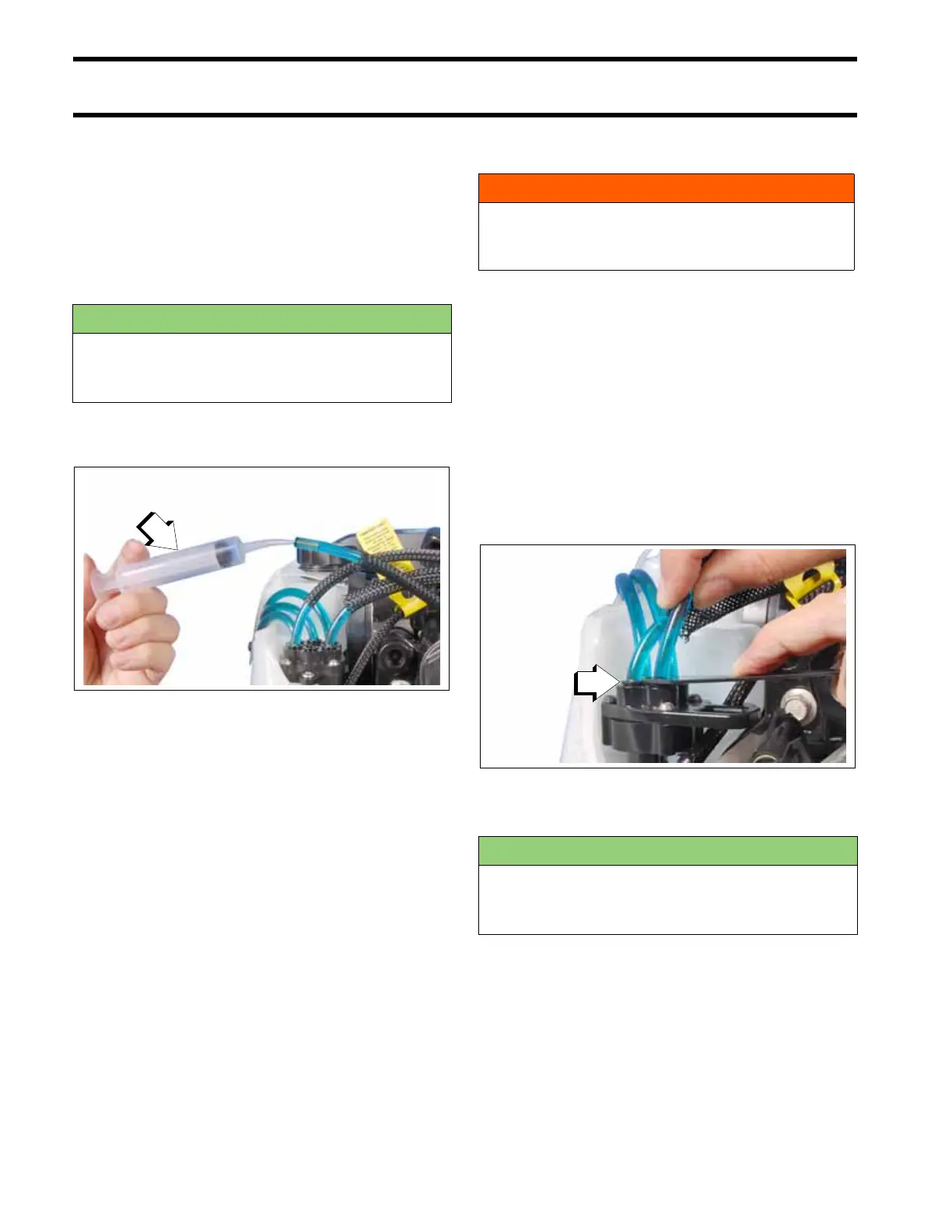

Oil Injection Fittings Flow Test
Make sure the oil injection fittings of the cylinder
and crankcase assembly allow fluid to move.
Remove oil distribution hose from oil distribution
manifold.
Clean up any spilled oil with shop towels.
Use a Syringe, P/N 346936, filled with isopropyl
alcohol to force fluid through hose and fitting.
LOW OIL Sending Unit Test
Remove oil from the oil tank.
Turn the key switch ON. The dash mounted
Engine Monitor system should show a LOW OIL
warning.
Once the warning has been confirmed, refill the oil
tank and start the outboard. The LOW OIL warn-
ing should stop after the oil pump cycles 3 times.
Oil Component Servicing
Oil Distribution Hoses
The oil distribution hoses to each cylinder MUST
be the same length. DO NOT alter the length of
any hoses.
Oil Distribution Hose Length:
• 20 in. (508 mm)
Removal
Release the hose by depressing the outer ring of
the hose retaining mechanism.
Clean up any spilled oil with shop towels.
ENVIRONMENTAL NOTE
Dispose of used oil or oil contaminated towels in
an environmentally responsible manner, or
according to local regulations.
1. Syringe
008069
WARNING
To prevent accidental starting while servic-
ing, disconnect the Crankshaft Position Sen-
sor (CPS)
1. Retainer mechanism
008067
ENVIRONMENTAL NOTE
Dispose of used oil or oil contaminated towels in
an environmentally responsible manner, or
according to local regulations.
