275
Midsection
Tiller Handle Service – Standard
11

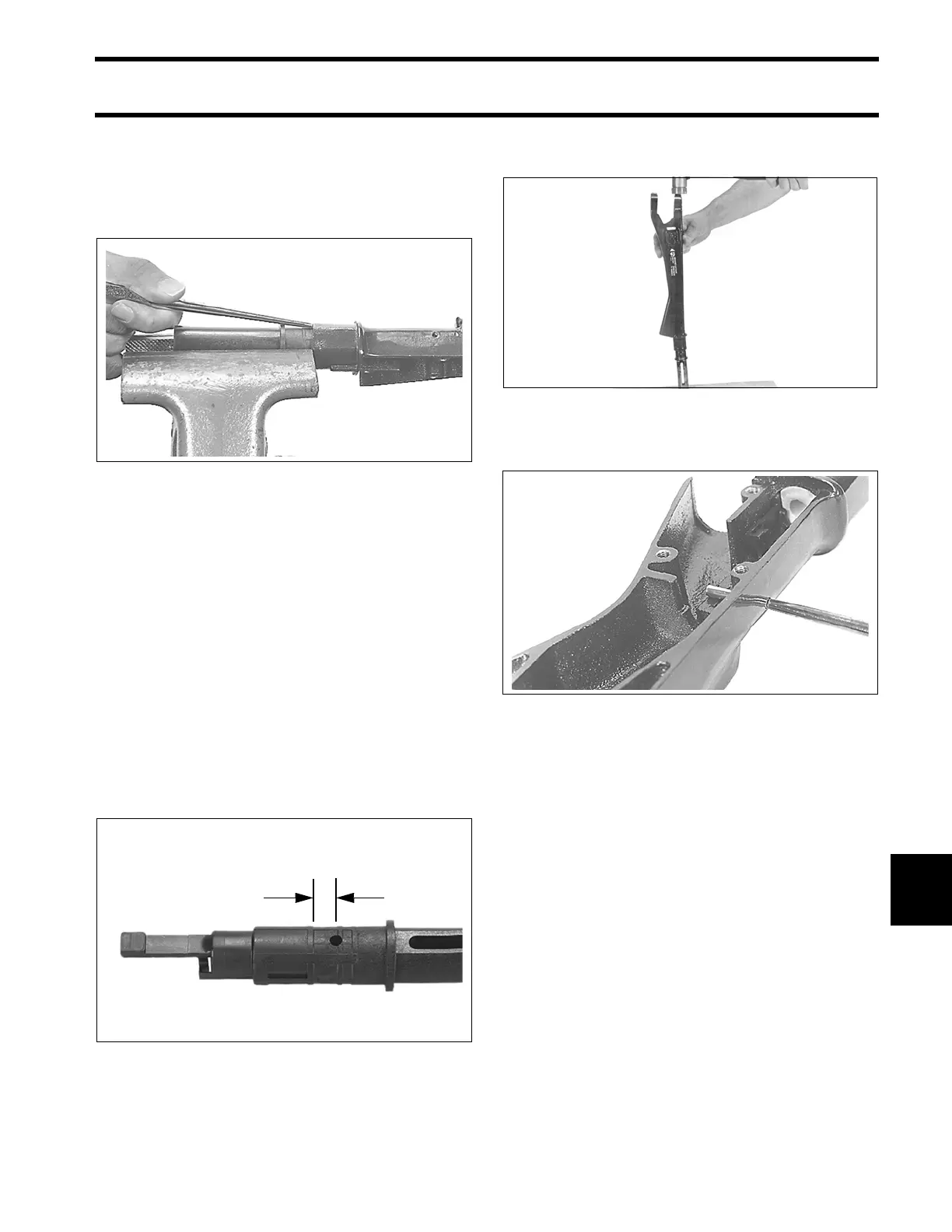

Remove the plastic inner handle from the metal
outer handle by driving the outer handle off with a
mallet and a punch. Inner handle is bonded to the
outer handle. After removing, chip away remnants
of inner handle.
Remove throttle cable seal from the inner handle.
Inspection
Inspect the throttle cable for kinks and wear.
Replace if necessary.
Inspect the steering handle components for wear,
cracks, or damage. Replace parts if necessary.
Assembly
Install the throttle cable seal in inner handle.
If removed, apply Loctite Depend 300 adhesive to
inner handle at areas shown.
Install the metal outer handle over the plastic inner
handle and drive the outer handle into place.
Secure tab of the inner handle into recess of the
outer handle with the steel pin.
24284
1.
20849
31202
1.
24285
