BRP E-TEC EVINRUDE - Page 125

125
Electrical and Ignition
Connector Servicing
6

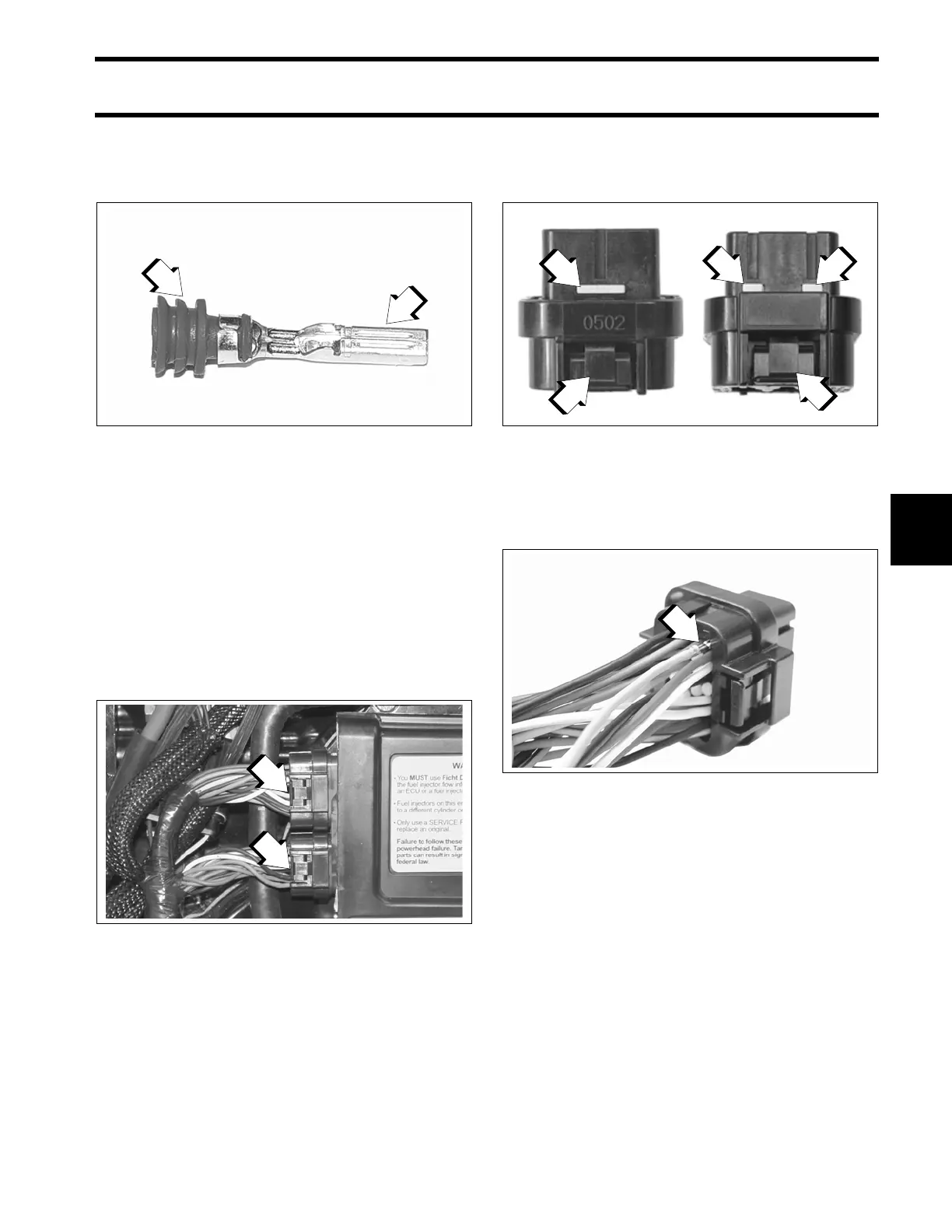

Crimping Terminals
Crimping Superseal 1.5 terminals requires AMP
Crimp Tool with dies, P/N 777281.
Super Seal
The J1-A and J1-B connectors of the EMM are
AMP Super Seal connectors.
Disconnect
Depress BOTH latches and pull connector from
plug.
Connect
Push connector into plug until latches engage.
Terminal Removal
Open lock mechanism and remove terminal from
connector housing.
Terminal Installation
Push terminal through seal until it is seated in con-
nector housing. Close lock mechanism.
Power Timer Series
The J2 connector of the EMM is an AMP Power
Timer Series connector.
Disconnect
Use a screw driver to open latch. Pull connector
from plug.
1. Terminal
2. Seal
002452
1. Latch
002118
1
2
1
1
1. Latch
2. Lock mechanism
002453
1. Terminal
002454
2
1
2
1
2
1
