301
Trim and Tilt
Trim and Tilt Replacement
12

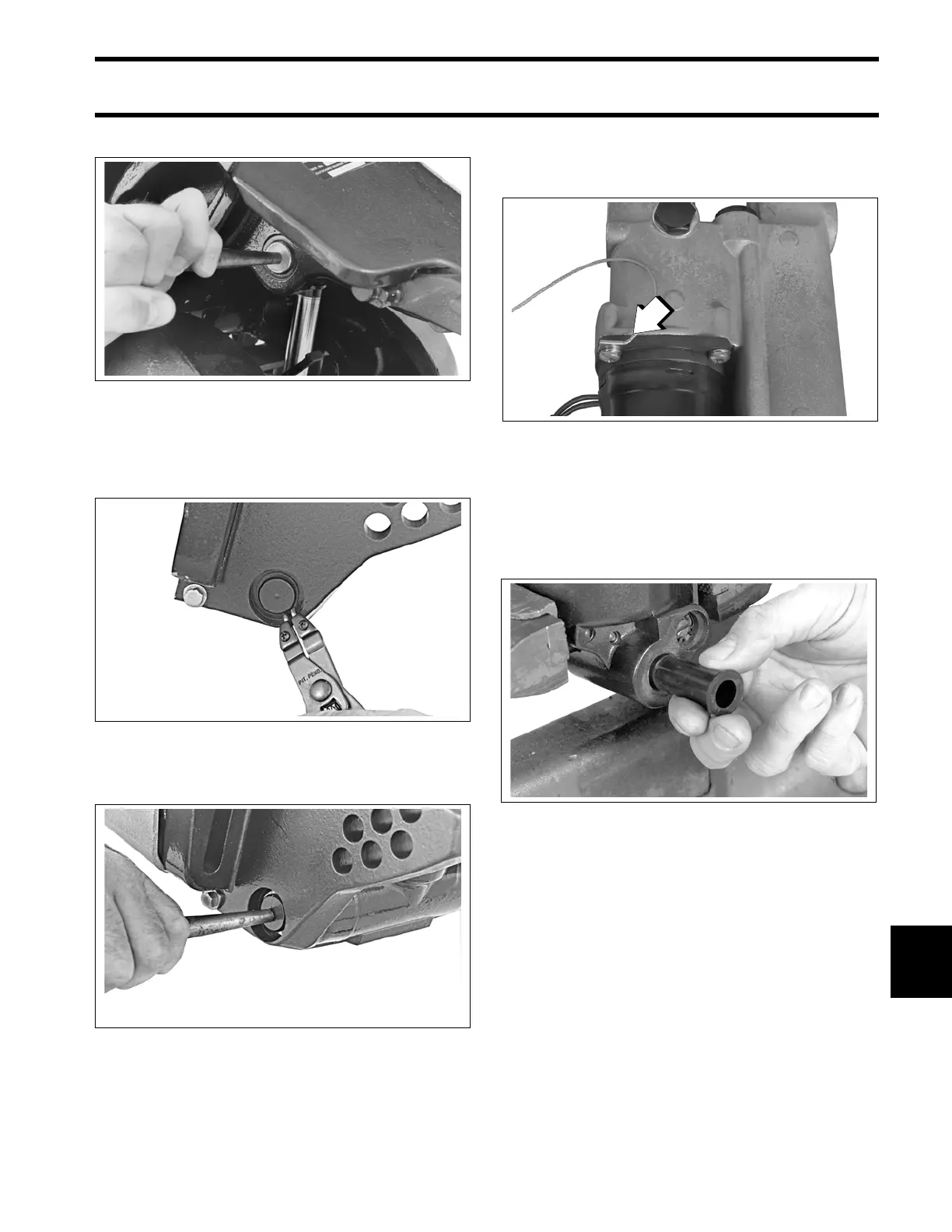

Use a punch to remove the upper pin.
Retract the tilt cylinder rod.
Remove the external snap rings from the lower
pin.
Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
Remove the unit from the stern brackets far
enough to remove the ground lead from the pump
motor mounting screw.
Installation
2-Cylinder Models
Lubricate the cylinder and thrust rod bushings with
Triple-Guard grease. Install the bushings.
Install the ground lead.
Place trim/tilt unit into position.
25065
25077
25076
1. Ground lead
002527
15591
