263
Midsection
Stern Bracket, 3-Cylinder Models
11
bushing to a torque of 28 to 30 ft. lbs. (38 to 41
N·m).
Install the two trim rod rollers on the swivel
bracket. Tighten to a torque of 216 to 240 in. lbs.
(25 to 27 N·m).
Install the trail lock and bushings in the swivel
bracket. Tighten to a torque of 216 to 240 in. lbs.
(25 to 27 N·m).
Install the trail lock spring in the swivel bracket
and connect the spring to the trail lock.

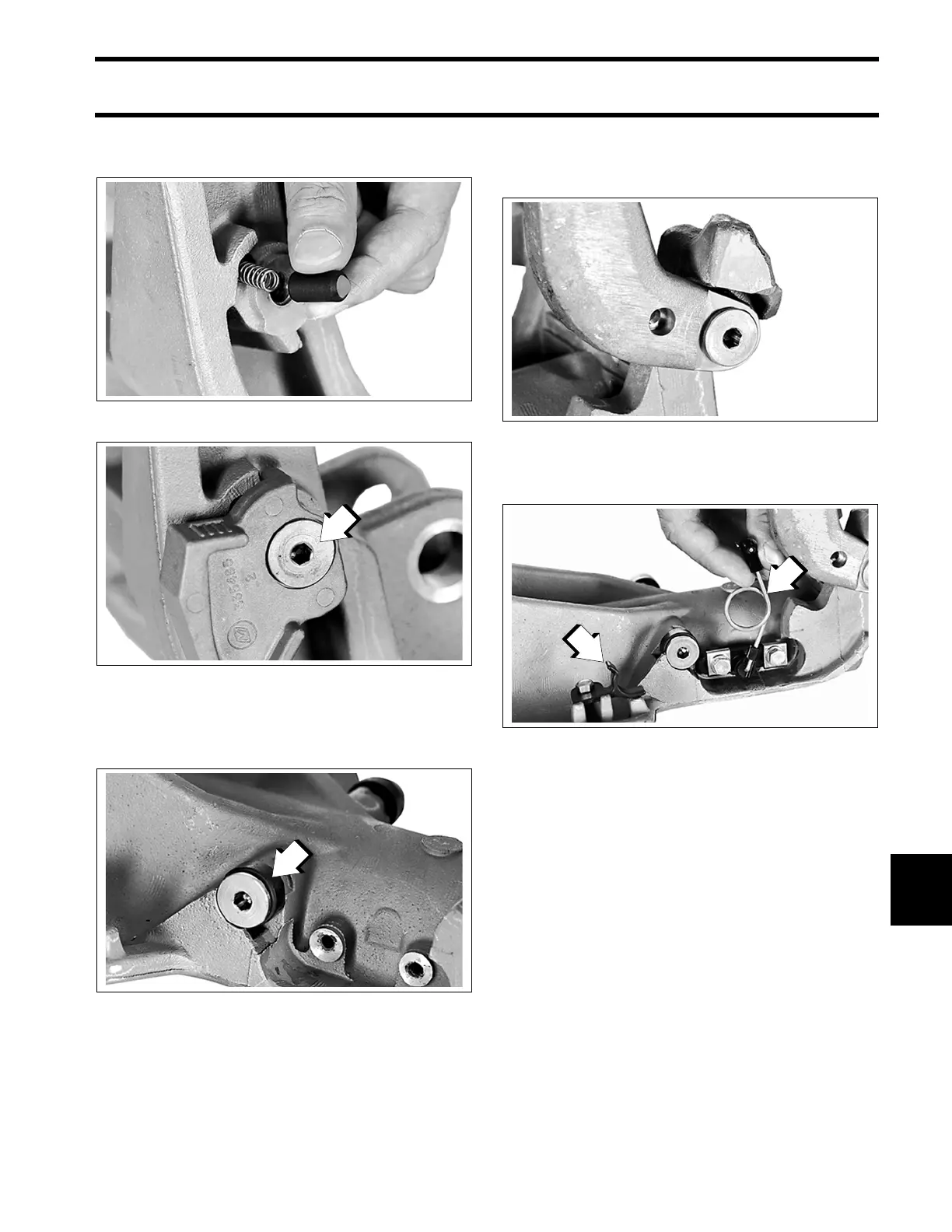

30752
1. Tilt support bushing
30753
1. Trim rod roller
30754
1. Trail lock bushing
30755
1. Trail lock spring
2. Trail arm retainer
30756
