Fuel System
Fuel Component Servicing
158
on reed plate and install screws. Tighten screws
to a torque of 25 to 35 in. lbs. (2.8 to 4.0 N·m).
Installation

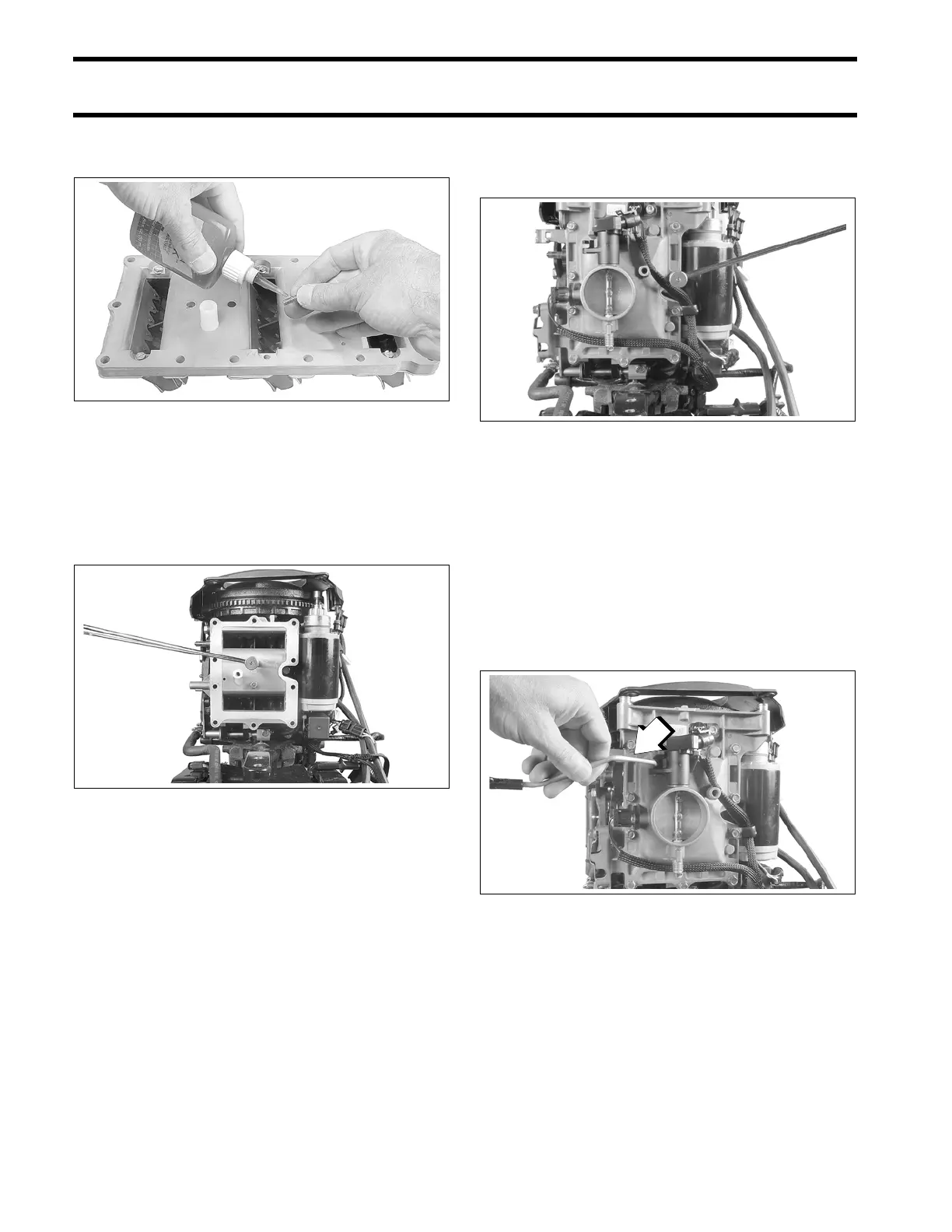

Place reed plate assembly on cylinder/crankcase.
Apply Nut Lock to two reed plate screws. Install
and tighten screws to a torque of 60 to 120 in. lbs.
(7 to 13.5 N·m).
Place gasket on throttle body. Install throttle body
on reed plate and install new screws.
IMPORTANT: If old screws must be re-used,
make sure all previous thread locking material is
removed and apply Nut Lock to threads.
Tighten the center screws first and expand out-
ward. Tighten in stages to a final torque of 60 to
120 in. lbs. (7 to 13.5 N·m).
Install vapor separator vent hose and main bear-
ing vent hose. Secure with tie straps.
Install air temperature sensor, crankshaft position
sensor, and throttle position sensor electrical con-
nectors.
Connect throttle linkage.
IMPORTANT: DO NOT lubricate throttle linkag-
es.
Refer to TPS Calibration on p. 121.
002326
002505
002501
1. Throttle linkage
002500
