Oiling System

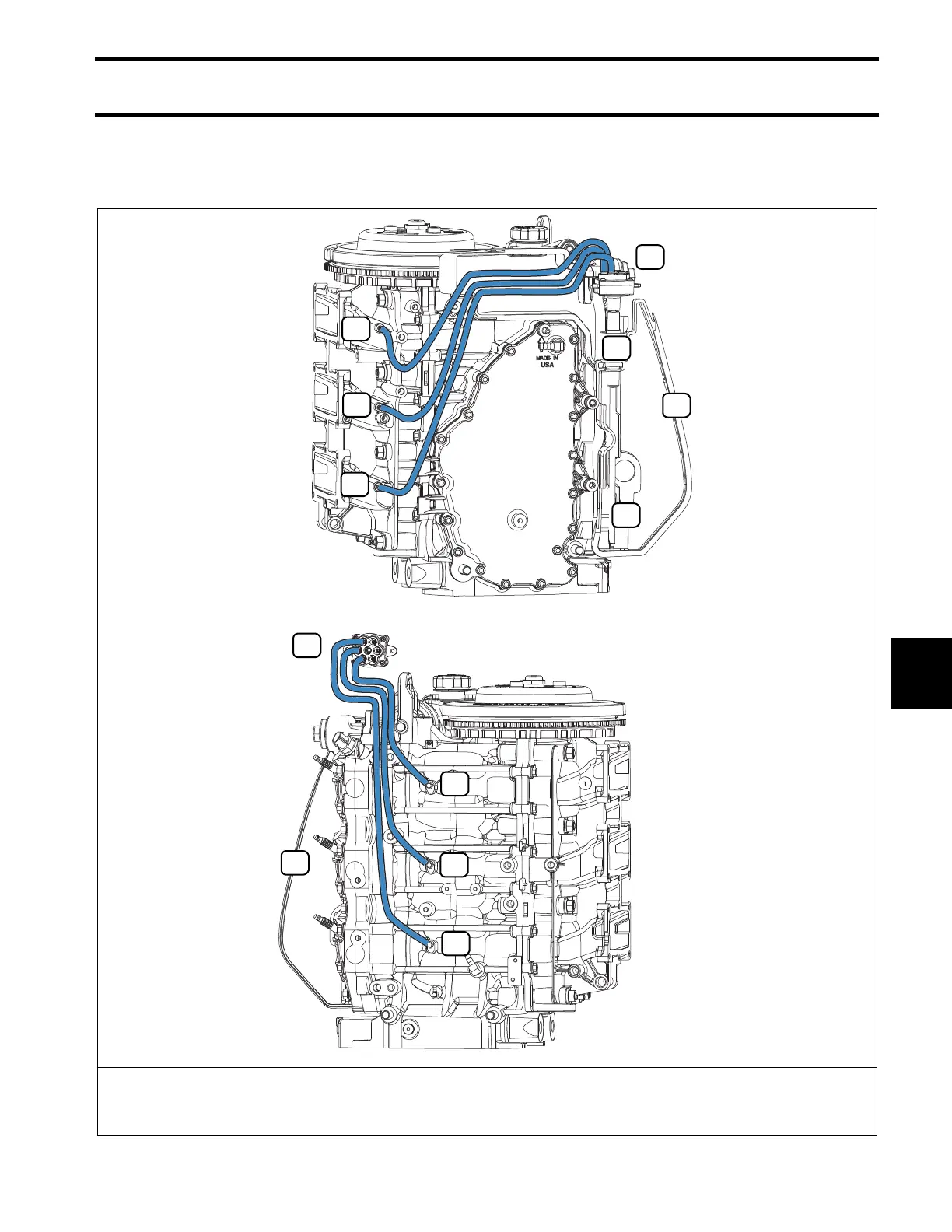

Oil Supply Diagrams
163
8
3-Cylinder Models
1
3
4
2
1
5
4
6
6
5
6
5
008061
1. Oil Tank
2. Oil Pick-up/filter
3. Oil Injection Pump
4. Oil Distribution Manifold
5. Crankcase Oil Inlet (Port)
6. Cylinder Oil Inlet (Starboard)
