BRP E-TEC EVINRUDE - Page 205

205
Powerhead
Powerhead Disassembly
10

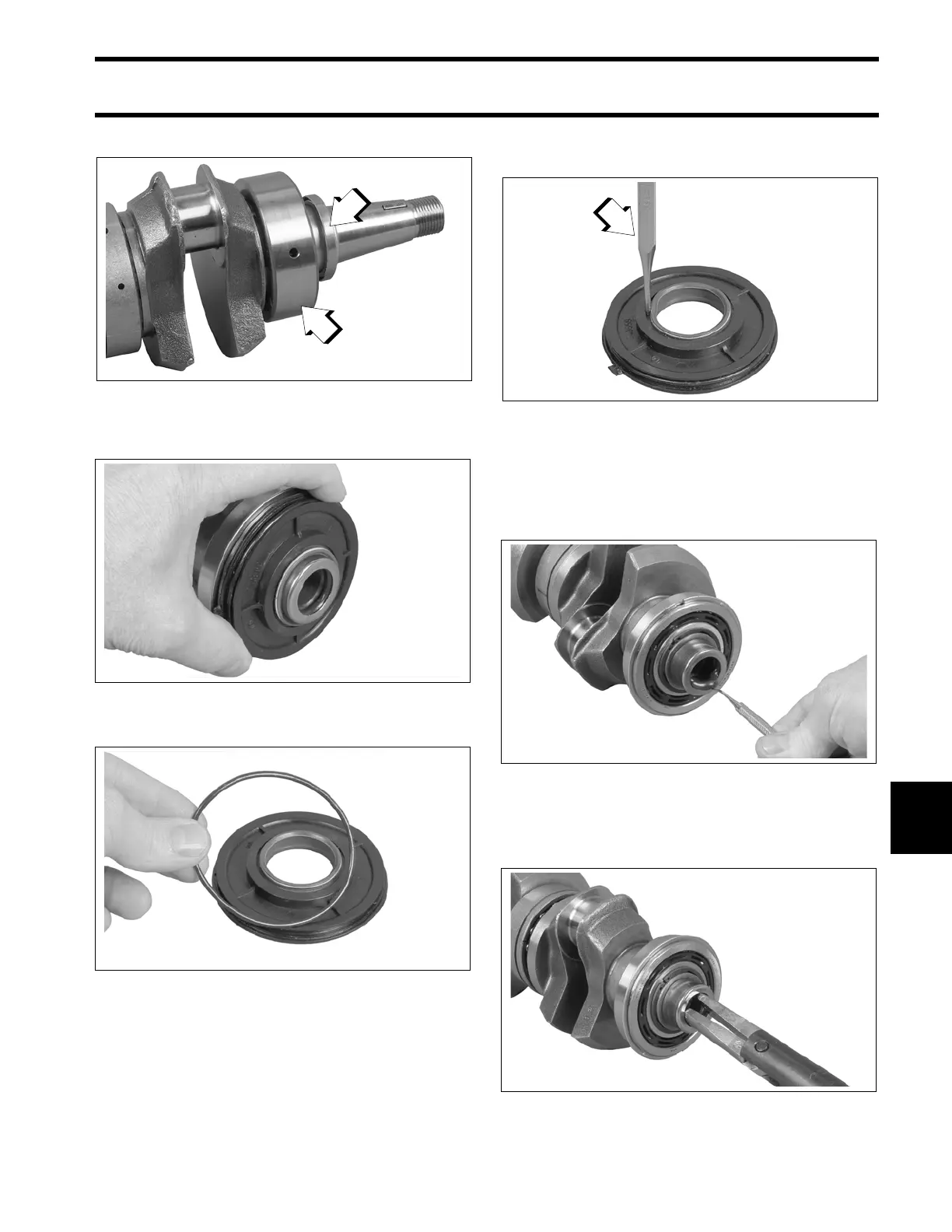

Remove the upper main bearing.
Remove the lower bearing seal housing.
Remove the housing O-ring. Discard O-ring.
Use a punch to remove the housing seal. Discard
seal.
Inspect housing and replace if necessary.
Remove the O-ring from crankshaft sleeve and
inspect it. Replace the O-ring if it is not in good
condition.
Inspect the crankshaft sleeve and replace if nec-
essary. To remove the sleeve, use Slide Hammer,
P/N 432128, and Large Puller Jaws, P/N 432129.
1. Upper oil seal
2. Upper main bearing
002034
002042
002044
1
2
1. Punch
002053
002040
002041
1
