Powerhead
Powerhead Assembly
212
will be located toward the top and starboard side
of the block.

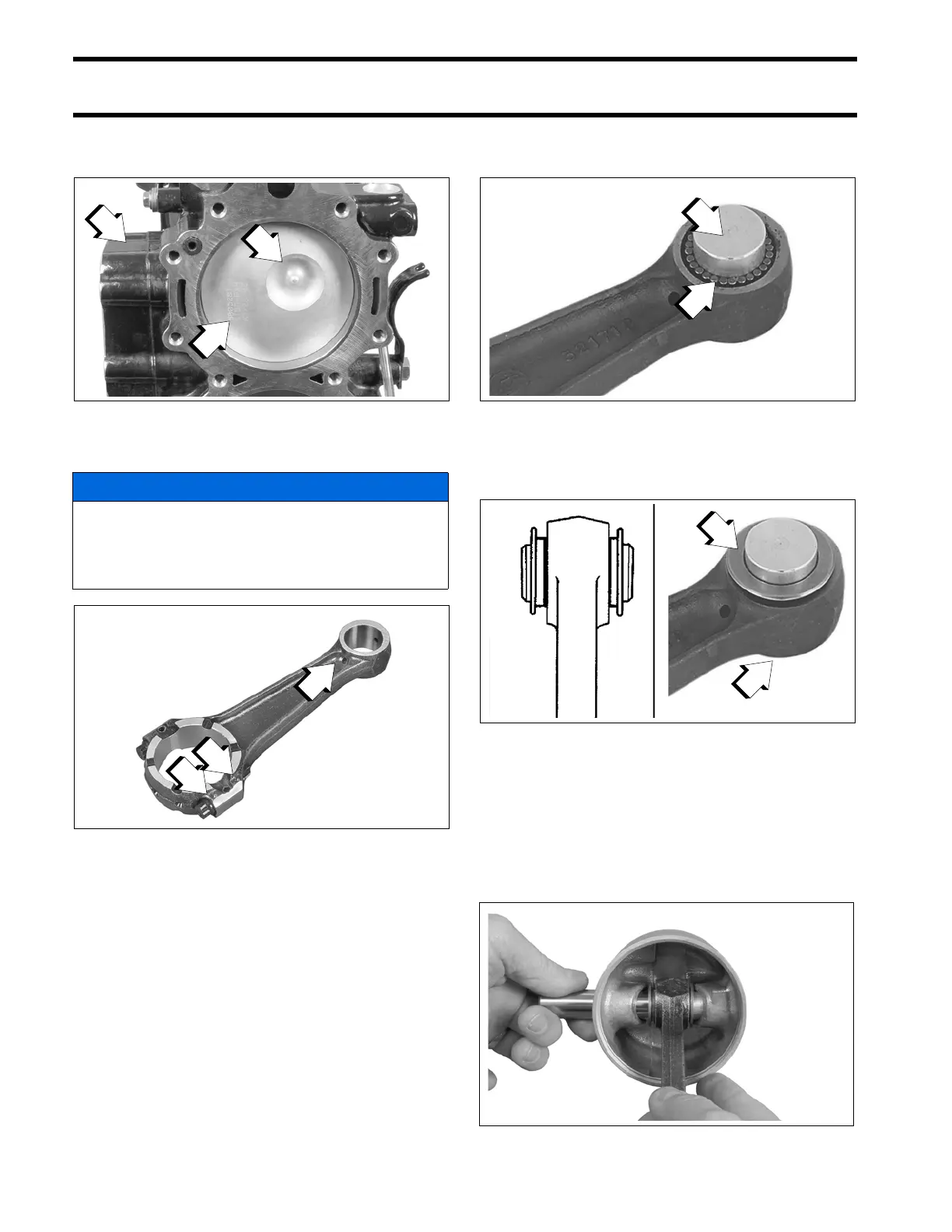

Apply Needle Bearing Grease to the wrist pin
bearings. Install the bearings in the small end of
the connecting rod. Align bearings with Wrist Pin
Bearing Tool, P/N 336660.
Place the two wrist pin thrust washers on the tool
with flat side of the washers facing out.
Oil the wrist pin bore and wrist pin. Place connect-
ing rod, with bearings, washers, and tool, into the
piston with the alignment dots facing the top of the
piston.
Install wrist pin through piston and connecting rod,
pushing bearing tool out through the piston.
1. Exhaust side of block
2. Stamped markings
3. Splash bowl
002049
NOTICE
It is also very important that the connecting
rods are installed with the alignment dots and
the diagonal oil hole facing up, toward the fly-
wheel.
1. Oil hole
2. Raised dots
002055
1. 28 needle bearings
2. Wrist pin bearing tool
24903
1. Wrist pin thrust washers
24902
002057
