Midsection
Service Charts
245
11

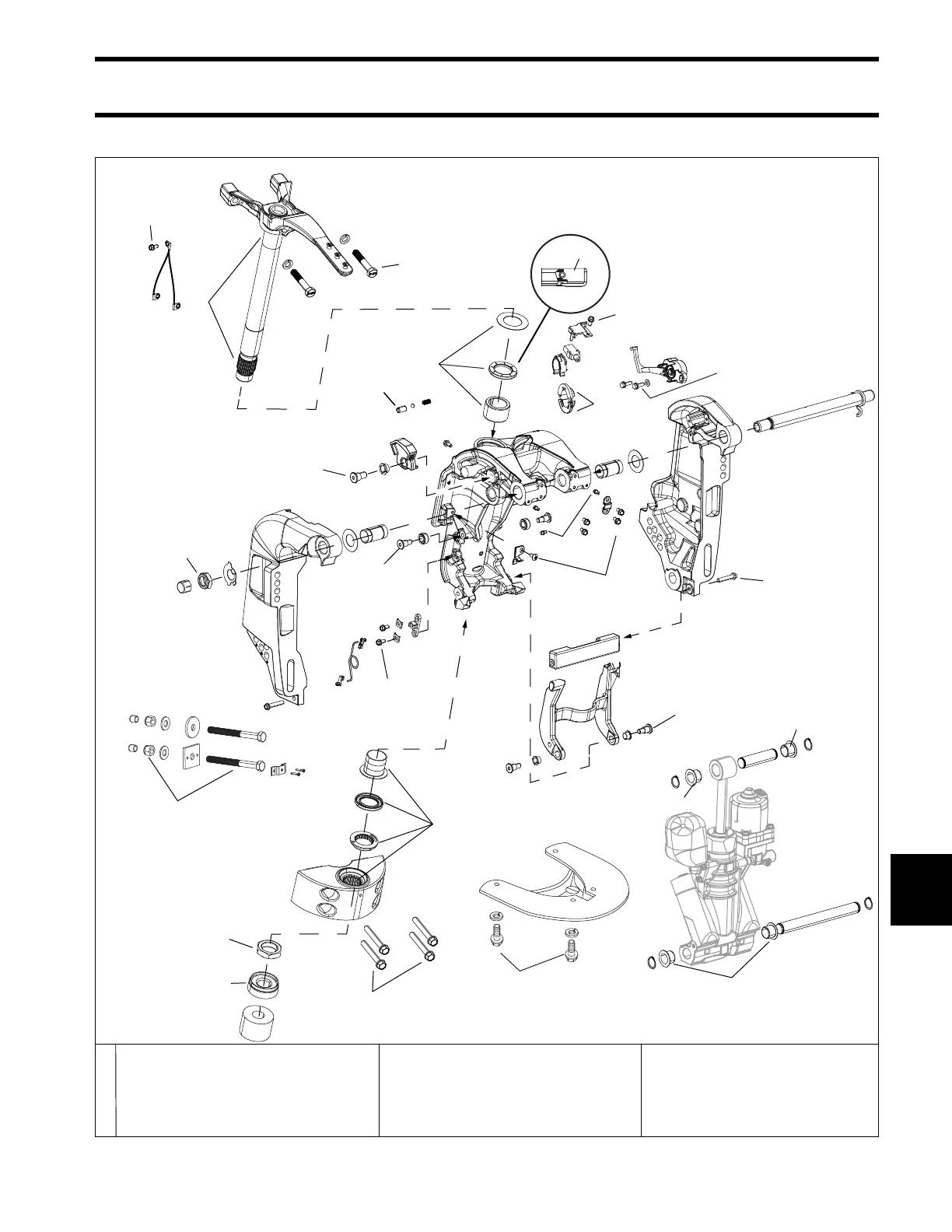

Stern Bracket, 3-Cylinder Power Trim & Tilt
A
110-130 Ft. lbs.
(149-176 N·m)
40-50 In. lbs.
(4.5-5.5 N·m)
30-50 In. lbs.
(3.3-5.5 N·m)
40-50 In. lbs.
(4.5-5.5 N·m)
X
45-50 Ft. lbs.
(61-68 N·m)
60-84 In. lbs.
(7-9.5 N·m)
28-30 Ft. lbs.
(38-41 N·m)
A
A
A
U
A
216-240 In. lbs.
(25-27 N·m)
F
38-45 Ft. lbs.
(52-61 N·m)
A
B
130-150 Ft. lbs.
(176-204 N·m)
A
170-190 In. lbs.
(19-22 N·m)
45-50 Ft. lbs.
(61-68 N·m)
40-50 In. lbs.
(4.5-5.5 N·m)
216-240 In. lbs.
(25-27 N·m)
010309
A
A
A
120-144 In. lbs.
(13.5-16.5 N·m)
A
IMPORTANT: Use Triple-Guard grease
on all pivot points.
A Triple-Guard Grease
B Gasket Sealing Compound
E Red Ultra Lock
F Blue Nut Lock
U Instant Bonding Adhesive
X See Service Manual Procedure
Y Extreme Pressure Grease
