284
Midsection
Tiller Handle Service – Long Handle

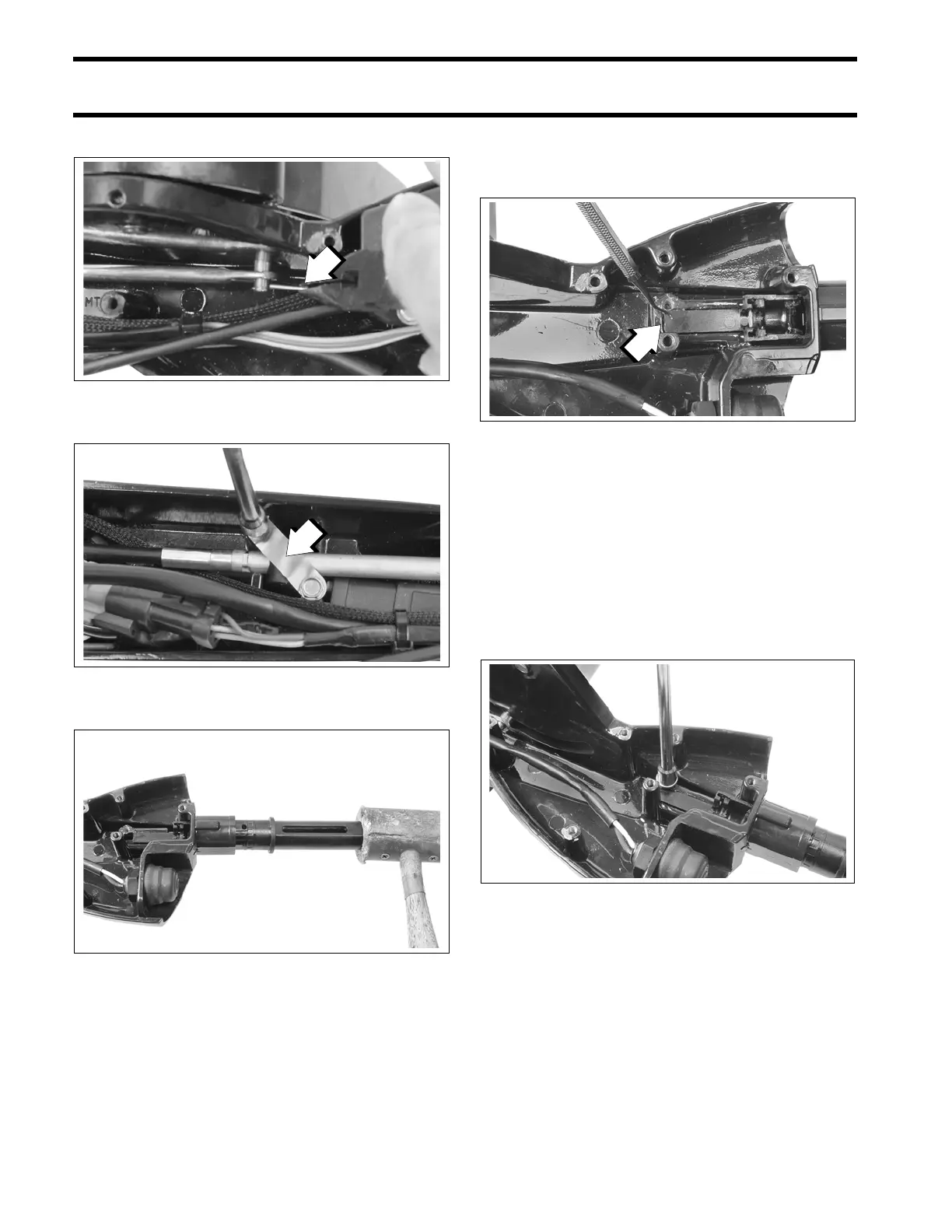

Install shift cable on shift pin with a new cotter pin.
Install shift cable retainer on shift cable trunnion.
Use a soft-faced mallet to install the inner handle.
Secure tab of the inner handle into the outer han-
dle. Tab must be flush with the back of the flange
and top of tab must be flush with top of flange.
Apply Nut Lock on the screw threads, install the
washer and screw.
IMPORTANT: Turn self-tapping screw counter-
clock-wise until threads of screw engage threads
of screw boss. Failure to follow this procedure will
damage the screw boss threads. Once threads are
engaged, tighten screw so that there is no space
between tab, washer and screw. Top of tab MUST
be flush with top of flange.
1. Cotter pin
006720
1. Shift cable retainer
006721
006680
1. Tab flush with back of flange
006682
006681
