289
Midsection
Tiller Handle Service – Long Handle
11
anchor pocket. Adjust the trunnion nut so the cas-
ing fits onto the shift lever pin.
Secure shift cable to the shift lever pin. For proper
installation, review the following steps:
• Place washer on pin.
• Position retainer clip with straight section on the
bottom and angled section on the top.
• Use long nose pliers to insert straight section of
clip into linkage pin hole.
• Push the clip towards the hole while lifting on
the curved end with the pliers.
• Be sure retainer clip fully engages the pin.
• Lock the retainer by moving the angled section
behind the straight section.
Throttle Cable Adjustment
Place throttle cable in position. Use Ball Socket
Installer tool, P/N 342225, to snap throttle cable
connector onto throttle lever.
Place throttle cable in upper anchor pocket. Install
cable retainer on anchor block.
Hold twist grip in full SLOW position. Pull firmly on
cable to remove backlash.
Adjust cable anchor so throttle cam is against idle
stop when anchor screw aligns with throttle body
boss. Then, rotate anchor four turns toward the
end of the cable.

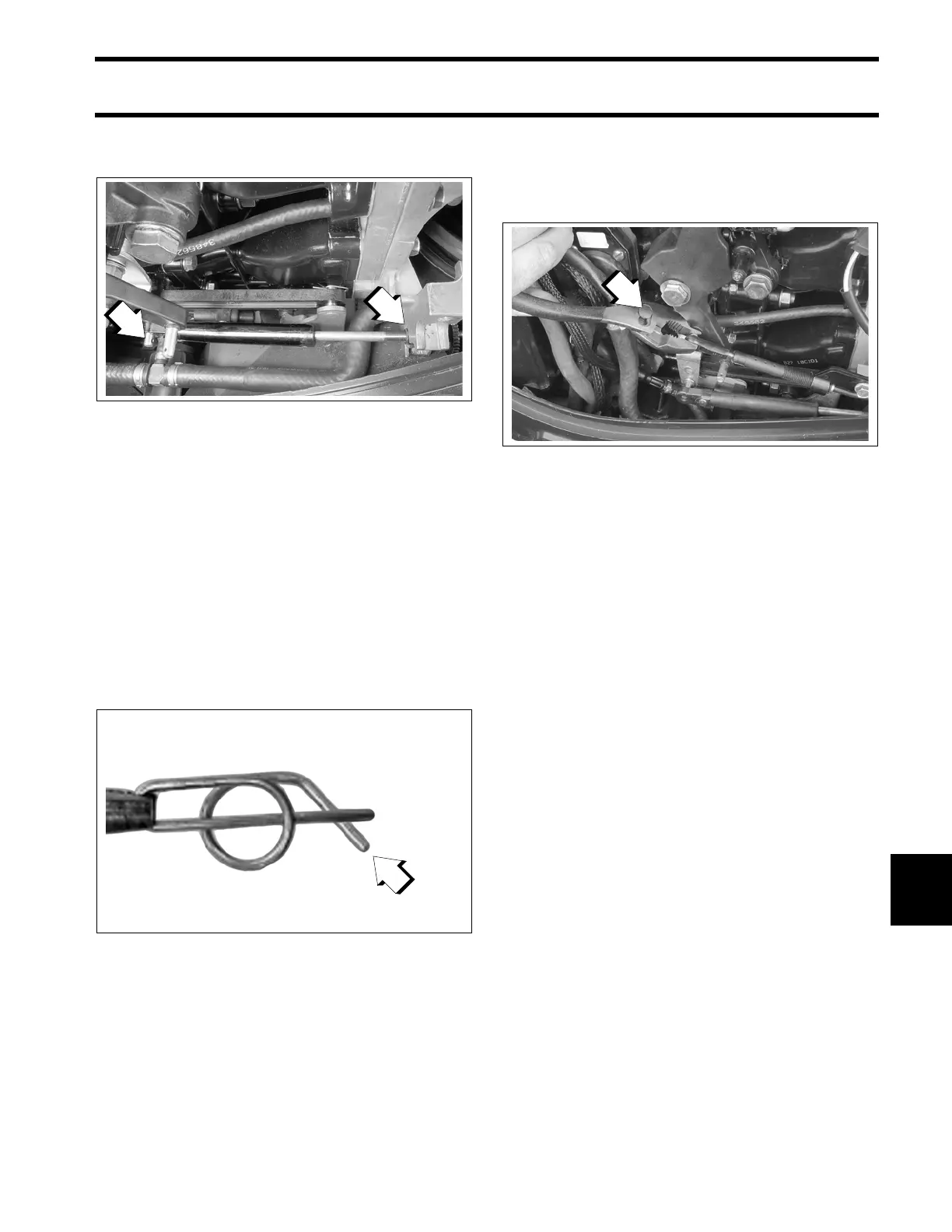

1. Shift lever pin
2. Trunnion nut
002100
Locked Retainer Clip
1. Angled section behind straight section
DP0817a
1. Installer tool, P/N 342225
005106
