Trim and Tilt
Trim and Tilt Service

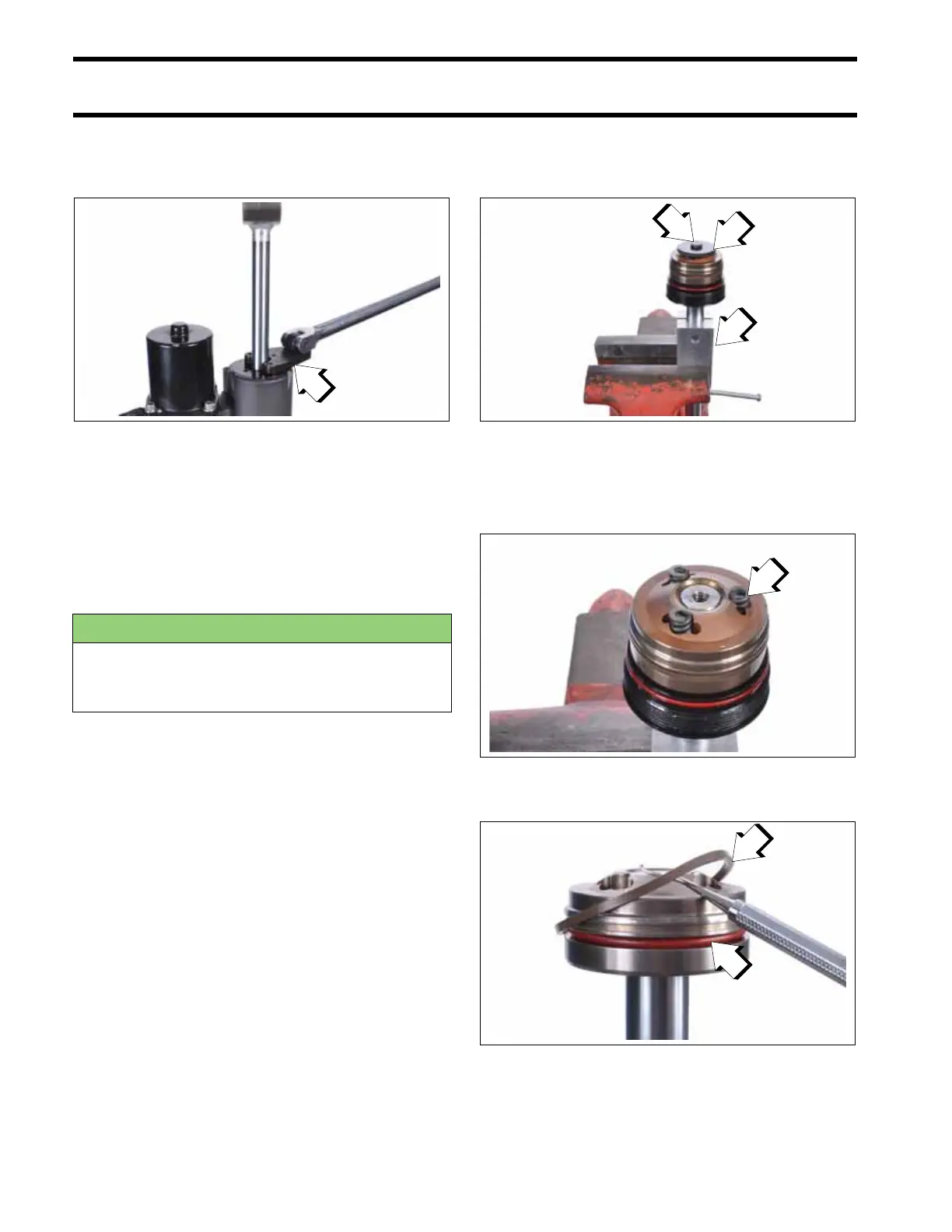

Use end cap spanner wrench, P/N 352932, to
remove the end cap from the trim and tilt assem-
bly.
Remove the rod, piston and end cap assembly
from the cylinder of the trim and tilt assembly.
Drain remaining trim and tilt fluid from the cylinder
of the trim and tilt assembly.
Clean up any spilled hydraulic fluid with shop tow-
els.
Use hydraulic cylinder rod holder set, P/N 983213
to hold the rod in a vice as shown.
Remove fastener and washer from piston assem-
bly.
Note: Use spanner wrench, P/N T-552, to remove
fastener from piston of trim and tilt assembly,
P/N 5005756.
Remove springs, valves and check balls from the
piston assembly.
Remove seal and o-ring from the piston.
Remove the piston from the rod.
1. End cap spanner wrench
008817
ENVIRONMENTAL NOTE
Dispose of spilled hydraulic fluid or contaminated
towels in an environmentally responsible manner,
or according to local regulations.
1. Hydraulic cylinder rod holder set
2. Fastener
3. Washer
008818
1. Springs, valves and check balls
008819
1. Seal
2. O-ring
008820
