320

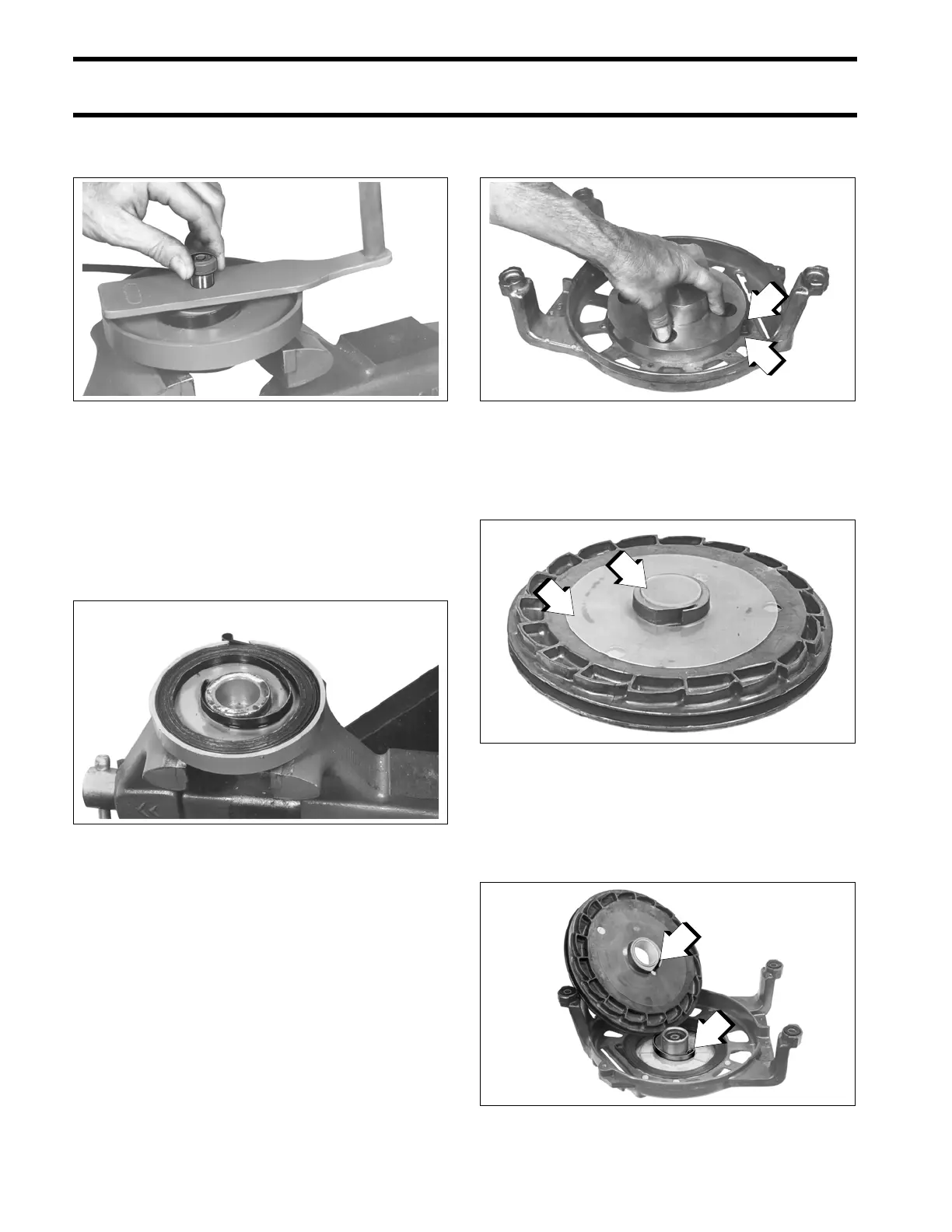

Manual Starter
Recoil Starter Assembly
crank and pin assembly to the starter winder base
with the crank retainer screw.
Rotate the crank and pin assembly in the direction
shown on the tool. Wind the spring into the starter
winder base until end of spring contacts the starter
winder base.
Remove the crank retainer screw and the crank
and pin assembly from the starter winder base.
Remove the starter winder base from the vise.
Install the rewind spring into the starter housing.
Locate the outer loop of the rewind spring on the
pin in the starter housing. Press down through the
holes in the spring winder base to transfer the
rewind spring into the starter housing.
Apply Triple-Guard grease or Lubriplate 777 to the
pulley bushing. Install the pulley bushing in the
pulley. Place the pulley shim on the pulley.
Bend the inside loop of the rewind spring in
toward the center of the starter housing. Place the
inner loop of the spring in the slot of the pulley,
and install the pulley in the starter housing.
CO3591
CO3589
1. Outer loop
2. Pin
CO3584
1. Bushing
2. Shim
COA1364
1. Inside loop
2. Slot
COA1365
