2002 Buell P3: Chassis 2-37
HOME
FRONT FORK 2.17
GENERAL
See Figure 2-54. The front fork consists of two telescoping
outer tube/inner slider assemblies. Each assembly has an
internal compression spring which supports the forward
weight of the vehicle and rider. The compression spring
extends and retracts to cushion the ride over rough or irregu-
lar road surfaces. An oil filled damping mechanism controls
the telescoping action of each tube/slider assembly. .

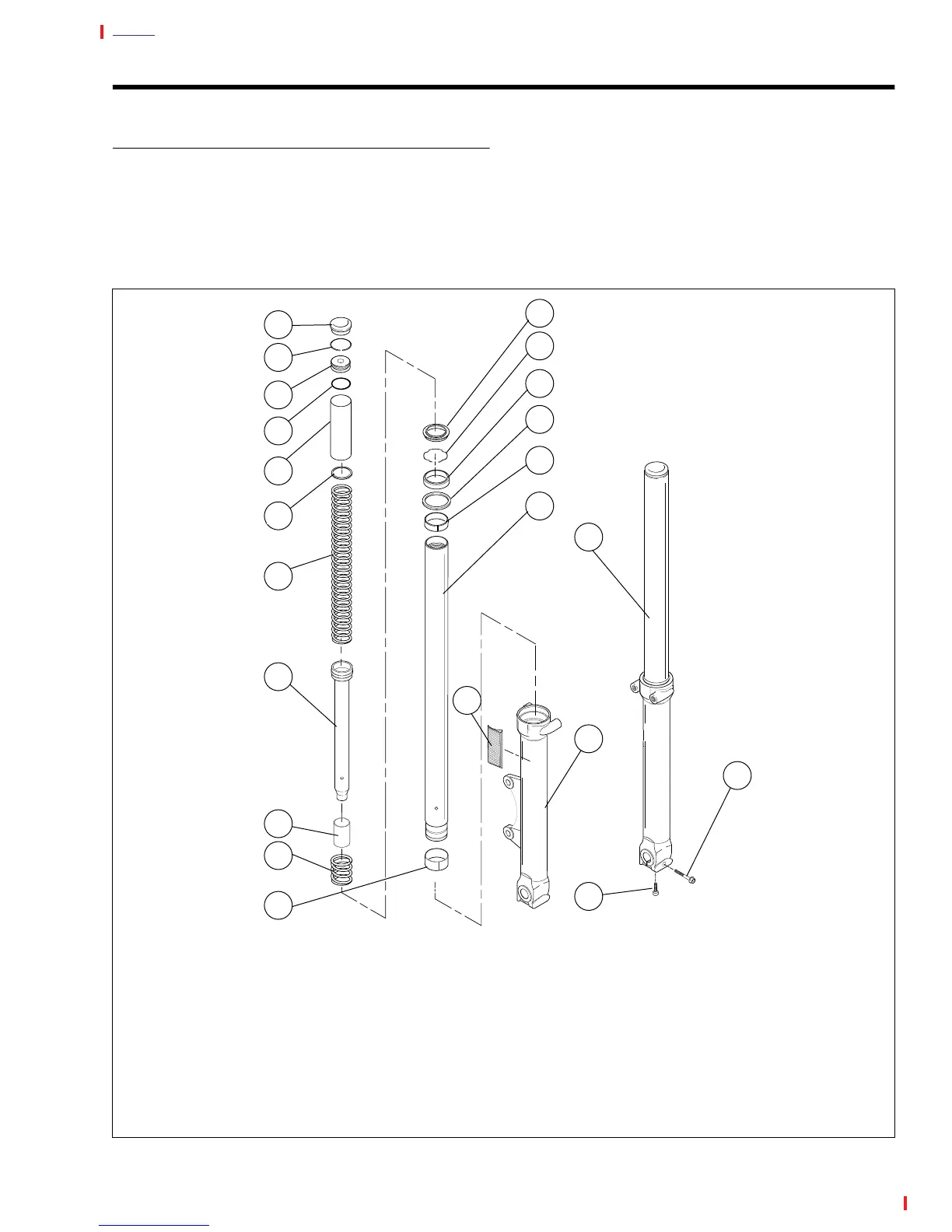

Figure 2-54. Front Fork Assembly
a0073xSx
12
13
14
15
16
17
18
19
11
1
2
3
4
5
6
8
9
20
21
7
22
10
1. Slider Tube, Cap
2. Stopper Ring
3. B Spring Seat
4. O-ring
5. Spring Collar
6. Lower Spring Seat
7. Spring
8. Damper Assembly
9. Lock Piece
10. Rebound Spring
11. Slide Bushing
12. Dust Seal
13. Retaining Ring
14. Oil Seal Spacer
15. Backup Ring
16. Guide Bushing
17. Slider Tube
18. Fork Assembly (slider & tube, right & left)
19. Slider Assembly (left & right)
20. Front Fork Bolt
21. Center Bolt
22. Reflector
