Buell 2002 P3 - Tank Cover;Fuel Tank

2002 Buell P3: Fuel System 4-11
HOME

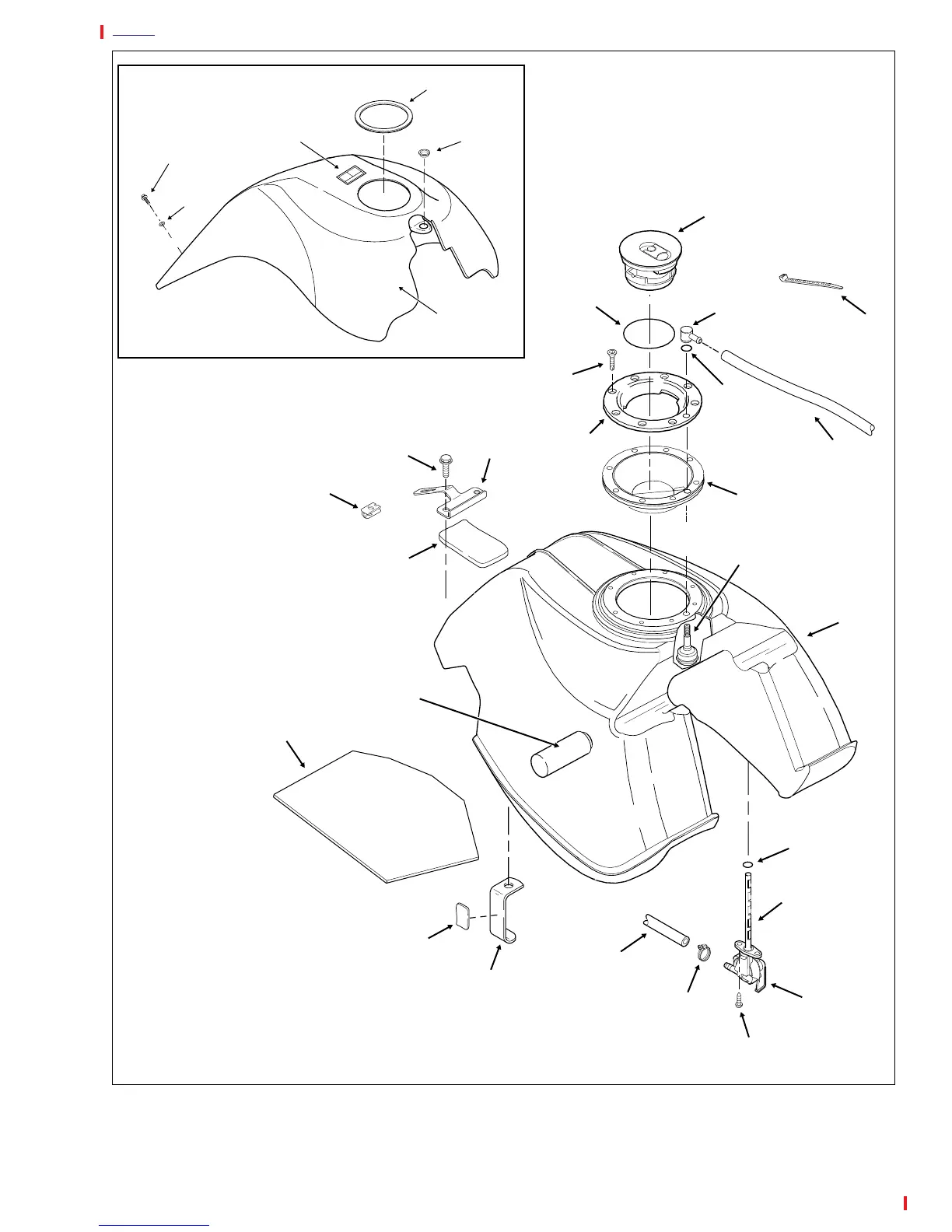

Figure 4-9. Fuel Tank Assembly
Right
Heat Shield
Wear
Pad
Band
Clamp
O-Ring
Fuel Cap
Flange
Cable
Strap
Fuel Cap
Flange
T-Shaped
Mounting
Mounting
Pad
Fuel
Tank
Main
Fuel Valve
Bracket
Rollover
Valve
Fuel Cap
Boot
O-Ring
O-Ring
Screw (8)
Screw (2)
vent tube
Fitting
Hose
1/4” I.D. x 1/2” O.D.
Hose
1/4” I.D. x 1/2” O.D.
a0180x4x
Bolt
Bracket
Filter
Strainer
Rubber
Stop (2)
Warning
Label
Tank
Cover
Trim
Ring
Mounting
Ring
Screw
a0179x4x
TANK COVER
FUEL TANK
Nylon
Washer
NOTE
Hose is sold in bulk length only.
Cut to required size.
Clip
Nut
